Manual IEC60068-2-75 Pendulum Hammer Test Apparatus
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | VH-1 |
|
Detail Information |
|||
| Usage: | Impact Testing Machine | Standard: | IEC60068-2-75 |
|---|---|---|---|
| Impact Height: | 0~1000mm, Adjustable | Input Power: | 220V, 50Hz |
| Hammer Material: | Stainless Steel | Hammer Energy: | 2J |
| Way Of Releasing: | Electromagnetic Release | Conduit Size: | Φ35×455mm |
| Highlight: | Electromagnetic Release Vertical Hammer Tester,50Hz Vertical Hammer Tester,220V 2J Vertical Hammer Tester |
||
Product Description

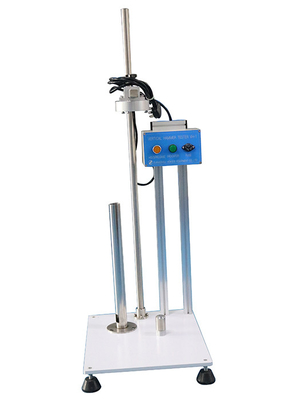

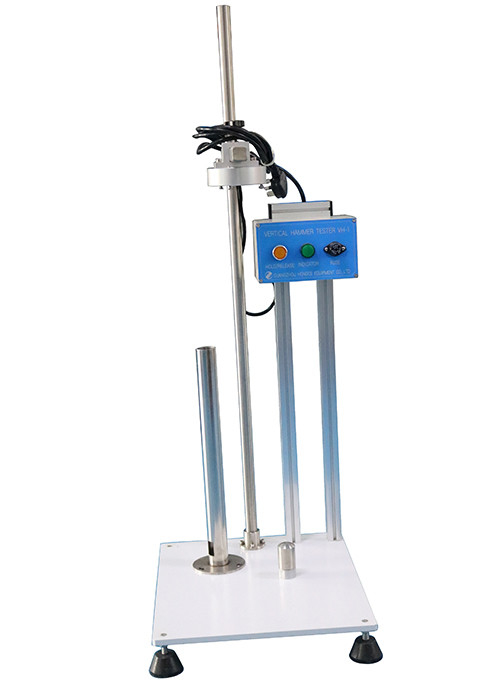

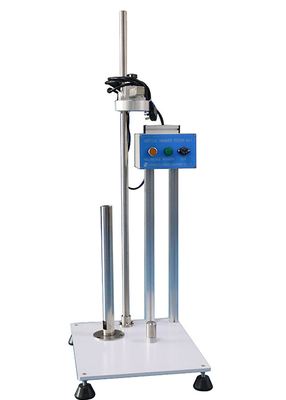

Impact Testing Machine Vertical Hammer Tester With Standard 2J Impact Hammer
Standard:
This vertical impact test apparatus is designed and manufactured according to the standard requirement of IEC60068-2-75 environmental Testing - Part 2 -Tests-Test Eh hammer Tests.
Application:
It is used to test the enclosure mechanical strength of the household and similar electrical appliances. Equipped with standard 2J impact hammer.Impact Testing Machine
Technical Parameters:
| Input power | 220V, 50Hz (Impact Testing Machine) |
| Impact height | 0~1000mm |
| Conduit size | Φ35×455mm |
| Way of releasing | By electromagnetic release, automatically |
| Hammer energy | 2J |
| Hammer material | Stainless steel |
| Standard | IEC60068-2-75 Test Ehc |
Table-Height of fall
| Energy (J) | 0.2 | 0.35 | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 |
| Equivalent Mass (kg) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Height of fall (mm) | 80 | 140 | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
