Manual IEC60068-2-75 Pendulum Hammer Test Apparatus
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | SH-7 |
|
Detail Information |
|||
| Product Name: | Calibration Device For Spring Impact Hammer SH-7 | Standard: | IEC 60068-2-75 |
|---|---|---|---|
| Measurement Range: | 0-2J | Operation: | Manual |
| Accuracy: | 0.01J | ||
| Highlight: | 0.01J Accuracy Calibration Device,0.01J Accuracy Impact Testing Machine,Calibration Device For Spring Hammer |
||
Product Description

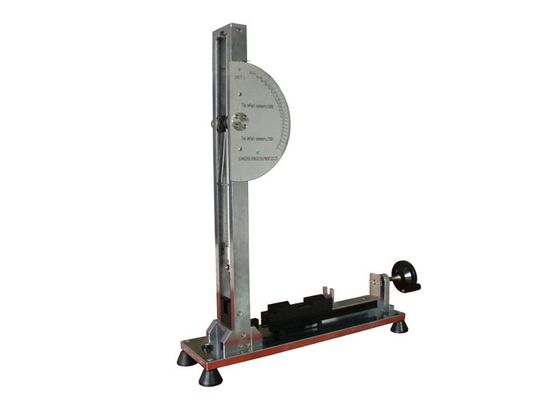

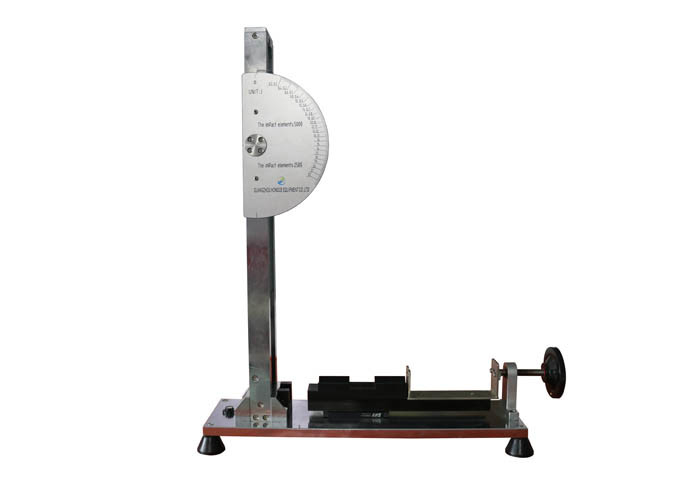

IEC60668-2-75 Calibration Device For Spring Hammers Impact Testing Machine
Standard:
IEC 60668-2-75-2014 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests Annex B;
Application:
This device is intended to verify the impact energy of spring operated impact hammers.
Test sample:
Spring hammer test apparatus
Principle of calibration:
The principle of this calibration procedure is to compare the energy provided by a spring hammer, which is difficult to measure directly, to the energy of a pendulum, calculated from its mass and height of fall.
Parameter:
| Model | SH-7 |
| Accuracy | 0.01J |
| Accuracy | ±0.01J |
| Measurement range | 0-2J |
| Measurement range | 51mm |
| The energy loss of the pendulum | <0.002J |
| Trigger distance | >30mm |
| Balance weight | 2J Copper weight 1 piece |
