Manual IEC60068-2-75 Pendulum Hammer Test Apparatus
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | SH-10 |
|
Detail Information |
|||
| Product Name: | Striking Element SH-10 | Standard: | IEC 60068-2-75 |
|---|---|---|---|
| Usage: | Impact Testing Machine | Operation: | Manual |
| Highlight: | Impact Testing Machine Striking Element,IEC60668-2-75 Striking Element,IEC60668-2-75 SS Striking Element |
||
Product Description

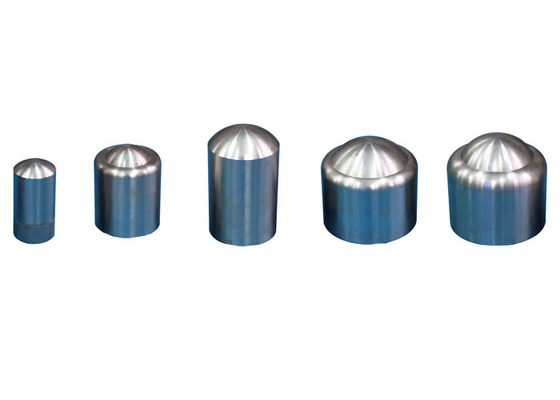

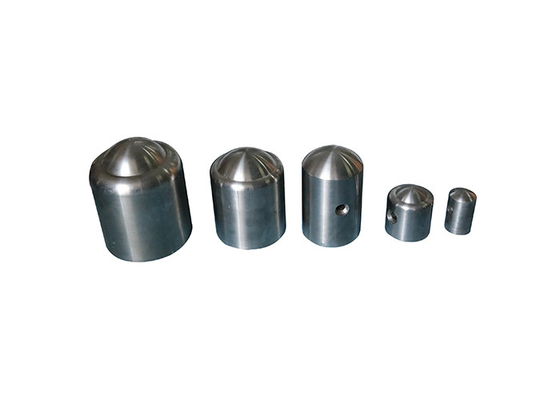

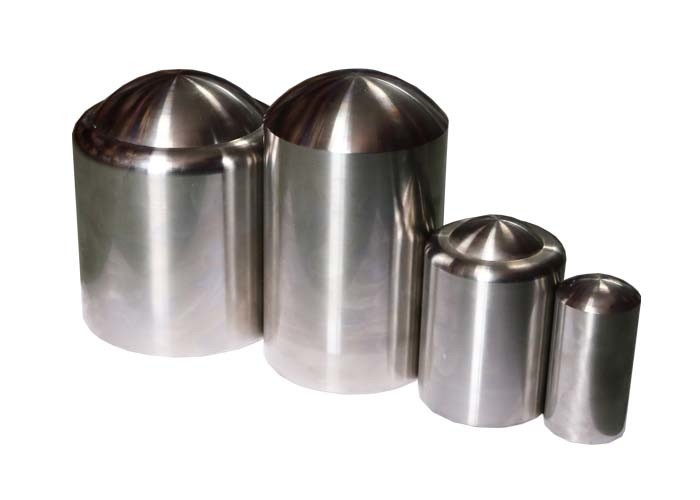

IEC60668-2-75 Impact Testing Machine Striking Element Made Of Stainless Steel
Standard:
IEC 60668-2-75-2014 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests Annex A;
Application:
It is suitable for mechanical impact strength test to electric cabinets and other sheet metal, shell of Non metal electric energy metering cabinet, substation cable switchboard and cable junction box with vertical impact tester or pendulum impact device.
Feature:
The lengths of the striking element are calculated for vertical hammers or for pendulum hammers with arms of negligible mass. When the mass of the arms cannot be neglected, the lengths of the striking element should be reduced so that the equivalent mass meets the requirements of Table 1
Table 1 – Coordinated characteristics of the striking elements
Parameters:
| Model(Energy) | 2J | 5J | 10J | 20J | 50J |
| equivalent mass(kg) | 0.5 | 1.7 | 5 | 5 | 10 |
| Dripping height(±1% mm) | 400 | 300 | 200 | 400 | 500 |
| Diameter(mm) | 35 | 60 | 80 | 100 | 125 |
