NF-2 Needle Flame Tester High Precision Fire Test Equipment IEC60695-11-5 Certification Butane Gas Flame Test
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 45 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 15 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | GW-2 |
|
Detail Information |
|||
| Name: | Glow Wire Test Apparatus | Usage: | Flammability Tester,Flame Testing Equipment |
|---|---|---|---|
| Warranty: | 12 Months | Power Supply: | AC220V±10%/50Hz.(other Power Specifications Can Be Customized ) |
| System: | Programmable PLC System | Glowing Filament: | Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) |
Product Description

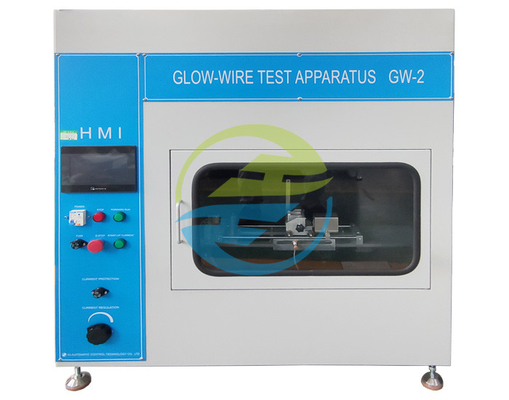

When safety becomes the bottom line, the GW-2 glow wire tester is your first line of defense against fire risks. We know that behind every electronic and electrical product is a commitment to consumer safety. This test equipment designed for plastics, insulating materials and electronic components, with humanized intelligent control + laboratory-level precision, helps you easily pass the most stringent safety certifications.
IEC60695-2-10 Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure;
IEC60695-2-11 Fire hazard testing – Part 2-11 : Glowing/hot-wire based test methods – Glow-wire flammability test method for end-products;
IEC60695-2-12 Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials;
IEC60695-2-13 Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials.
This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in a short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the no flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.
Electronic appliances: switch/socket flame retardancy verification
Automobile manufacturing: new energy battery pack material fire test
Scientific research institutions: new material combustion characteristics research
Quality inspection unit: CCC/CE certification pre-test
Parameter of Glow Wire Tester:
| ParametersModel | GW-1 | GW-2(Touch screen) |
| Working voltage | 220V/50Hz | 220V/50Hz |
| Control operation mode | Electrical control, button operation | PLC control, 7 inch color touch screen operation, with infrared remote control, infrared remote control outside the cabinet operates the equipment when door is closed |
| Flame detect | Manual | Manual |
| Glowing filament | Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape, horizontal standing | |
| Specimen pressure on glowing filament | 0.95N±0.1N | |
| Maximum depth of heating | 7mm ± 0.5mm | |
| Specimen movement speed | 10mm /s ～ 25mm /s | |
| Temperature calibration | Calibration temperature:960°±10°C, the hot wire by electric heating | |
| Thermocouple: RS imported 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100° | ||
| Silver foil: purity 99.8%, area :4mm², thickness:0.06mm | ||
| Tray | A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample | |
| Test chamber | >0.5 cube, sample distance from the inside of the box is greater than 100mm, black yogon background, background illuminance ≤ 20Lx,with exhaust fan | |
| Testing time | 30s±1s | |
| Test procedure | The test sample is driven by the car and automatic run, the car will return automatically after glow-wire entered the test sample of 7mm | |
| Lighting | Equip with lighting in the test chamber, with control | |
| Dimension | 1100*550*1200mm, 140kg | |
1. 24-hour rapid response: localized service outlets in Asia Pacific/Europe/Americas
2. One-year core component warranty: lifetime maintenance of heating modules
3. Free operation training: online video library + offline engineer on-site guidance
