NF-2 Needle Flame Tester High Precision Fire Test Equipment IEC60695-11-5 Certification Butane Gas Flame Test
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate(cost additional) | Model Number: | HAI-1 |
|
Detail Information |
|||
| Product Name: | Heavy Current Ignition Tester HAI-1 | Arc Strike Speed: | 40 Times/min |
|---|---|---|---|
| Arc Strike Times: | 0-9999 Can Be Preset | Working Voltage: | 220V/50Hz |
| Standard: | IEC 60950-1，IEC60947-1，IEC730-1 | Function: | Flammability Testing Equipment |
| Electrode Separation Velocity: | 254±25㎜/s | Control Operation Mode: | Electrical Control, Button Operation |
Product Description

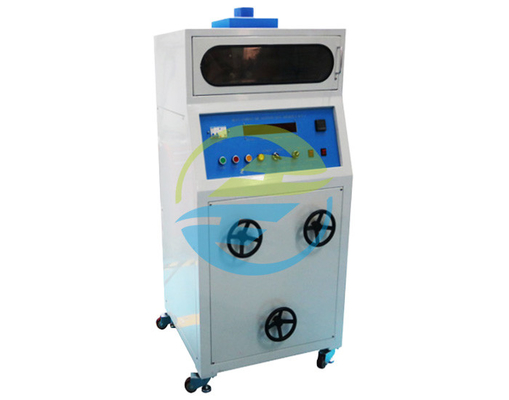

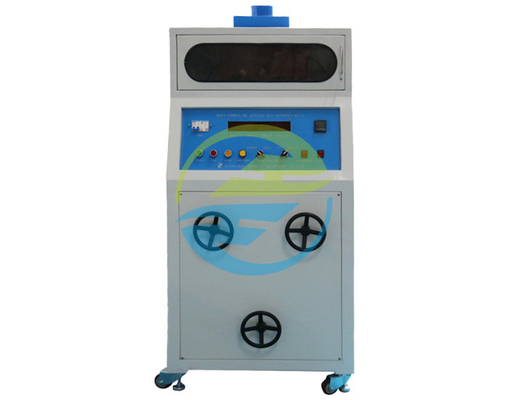

HAI-1 High Current Arc Ignition Tester Flammability Testing Equipment 33A Arc Burning Test
Product Introduction:
As the source manufacturer, HJ Company launched the HAI-1 High Current Arc Ignition Tester, which is designed for electrical and electronic, automotive parts, insulation materials and other industries. It simulates high current arc environment and accurately evaluates the flame retardancy of materials. Through the intelligent control system and humanized operation interface, safety testing is more efficient and reliable, protecting the quality of your products.
Standard:
IEC 60950-1 Information technology equipment - Safety - Part 1: General requirements.
IEC60947-1 Low-voltage switchgear and controlgear - Part 1: General rules.
IEC60730-1 Automatic electrical controls -Part 1: General requirements.
Product Use:
Automotive parts: Detect arc resistance of wiring harnesses and connectors to avoid driving safety hazards.
Electronic appliances: Evaluate the flame retardancy of insulation materials such as switches and sockets under high current.
Industrial materials: Test the flame retardancy level of engineering plastics and insulation coatings to ensure compliance.
Feature:
Heavy current ignition tester adopts dual electrodes. With specific current (33A) and power factor (COSφ0.5), according to a certain arc strike speed (254mm/s) and repetition frequency (40 times/min), repeatedly arc strike to 200 times on the surface of specimen. The large current arc ignition performance (HAI) can be assessed according to whether the sample can be ignited. The smaller of the grade number, the more difficult for burning material.
Parameters:
| Working voltage | 220V/50Hz(Flammability Testing Equipment) |
| Control operation mode | Electrical control, button operation |
| Arc strike current and power factor | When the power factor is 0.5, the current is 33A±0.5A |
| Arc strike speed | 40 times/min |
| Electrode separation velocity | 254±25㎜/s |
| Arc strike times | 0-9999 can be preset |
| Electrode material |

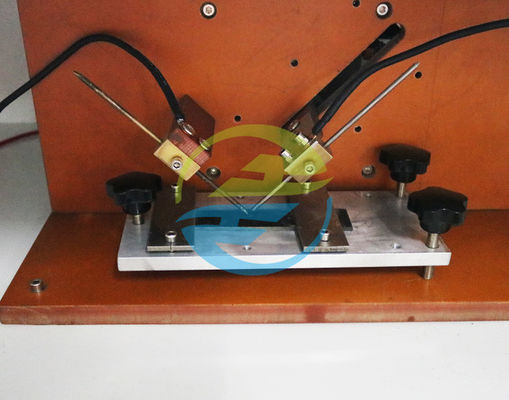

Static electrode—copper,dia.Ф3.5mm (Ф3.2)×152mm,top bevel angle 30° Moving electrode—stainless steel,diaФ3.5mm(Ф3.2)×152mm, top cone angle 60° |
| Electrode included angle | Form 45° with level,electrode head radius of curvature 0.1mm |
| Test procedure | Automatic control, independent exhaust |
| Lighting | Equip with lighting in the test chamber, with control |
| Test chamber and dimension | LWH:800×700×1600mm,300kg |
Product Details:
After-sales service:
Worry-free warranty: 1 year warranty for the whole machine, lifelong maintenance of core components.
Technical support: Remote guidance installation, operation training and annual calibration services.
Quick response: Provide solutions within 24 hours.
