Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 15 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | HH0802 |
|
Detail Information |
|||
| Product Name: | IPX3 IPX4 Oscillating Tube Test Device | Standard: | IEC 60529,Gb-4208-2008 Protection Class |
|---|---|---|---|
| Warranty: | 12 Months | Power Supply: | Customized According To End User Request |
| Function: | IP Water Testing Equipment,IP Rain Testing | Needle Hole: | Φ0.4mm |
| Highlight: | IPX4 Oscillating Tube Test Device,IPX3 Oscillating Tube Test Device |
||
Product Description

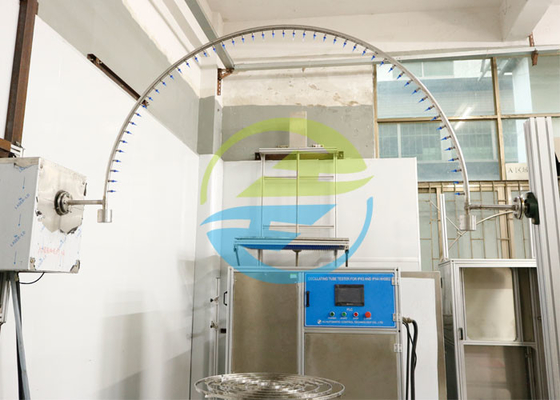

IPX3 IPX4 Oscillating Tube Test Device Used For Ingress Protection Test
Standard of IPX3 IPX4 Oscillating Tube :
IEC60529 degree of protection provided by enclosures (IP Code), Figure 4 – Test device to verify protection against spraying and splashing water; second characteristic numerals 3 and 4 (oscillating tube);
Application of IPX3 IPX4 Oscillating Tube:
IPX3 IPX4 Oscillating Tube Test Device is intended for determining the degree of protection, against ingress of water IPX3 and IPX4.
Feature of IPX3 IPX4 Oscillating Tube:
1. The complete set of equipment consists of oscillating tube, turntable, and control cabinet.
2. Height of oscillating mechanism can be adjusted.
3. Allows configuration of oscillating tubes of different radii.
4. The oscillating tube can spray ±60° from vertical for IPX3 testing and spray±180° from vertical for IPX4 testing.
5. The water flow rate is adjustable.
Parameter of IPX3 IPX4 Oscillating Tube:
| Item | Parameters |
| Input power | Single-phase AC240V,50Hz |
| Water supply |
Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| The size of the oscillating tube | R200 , R400, R600, R800, R1000, R1200, R1400, R1600mm, stainless steel |
| Needle hole | Φ0.4mm |
| Included angle of two holes | IPX3: 120°; IPX4: 180° |
| Pendulum angle | IPX3: 120°(±60°); IPX4: 350°(±175°) |
| Raining speed |
IPX3: 4 s/time(2×120°); IPX4: 12 s/time(2×350°); |
| Water flow | 1-10L/min adjustable |
| Testing time | 0.01s～99hours 59min, can be preset |
| Turntable | Diameter: Φ600mm; Rotate speed:1r/min, Can be paused at four aspects, Load bearing≤100kg electrical equipment |
| Site requirements | Dedicated IP waterproof test room, The ground should be flat with illumination. 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation |
