Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HH0810 |
|
Detail Information |
|||
| Product Name: | Sand And Dust Equipment | Standard: | IEC60529, IEC60598-1, IEC60335-1 |
|---|---|---|---|
| Dust Concentration: | 2kg/m³ | Interior Material: | SUS#304 Stainless Steel |
| Amount Of Talcum Powder: | 2-4kg/m3 | Power Supply: | 50Hz/Customization |
| Inner Size: | 1800*1200*1200mm (W*D*H) Or Customize | Air Flow Meter: | 1-20L/M |
| Highlight: | PLC IP Test Equipment,IEC60598-1 IP Test Equipment,SUS304 IP Test Equipment |
||
Product Description

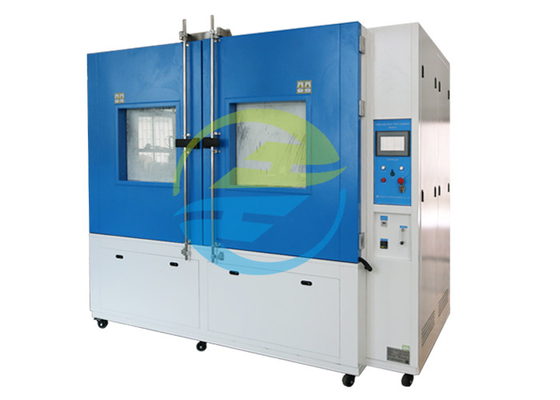

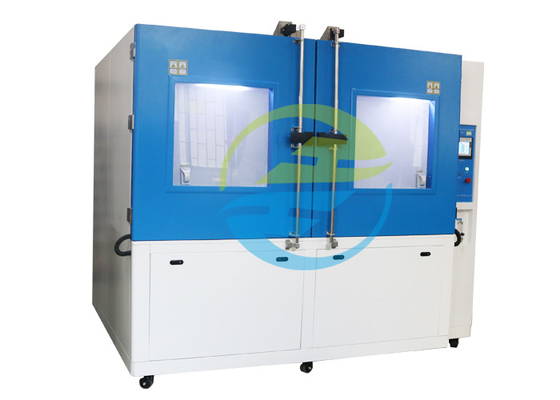

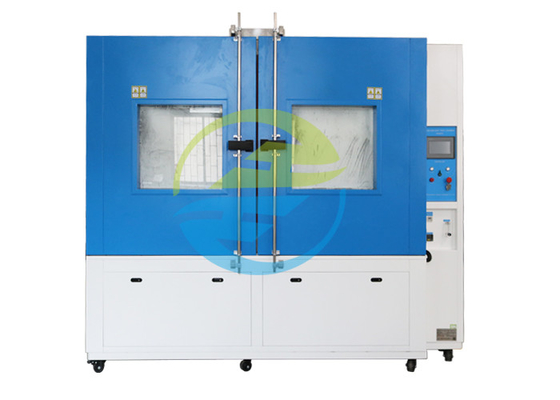

PLC controller Dust And Wind Resistance IP Test Equipment With Custom Inner Size
Product information:
The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.
The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
Design a cone-shaped funnel with a dust collection port at the bottom, and install a high-pressure turbine circulation fan suction port at the dust extraction port (bottom), and send the pumped dust to the top of the inner box and freely fall from top to bottom through the top of the box, thus starting the cycle repeats itself. IP Test Equipment
Parameter:
| Inner size | 1800*1200*1200mm (W*D*H) |
| Outer size | About 3100*1700*2100 mm (W*D*H) |
| Baking dust temperature range | RT+10～60℃ |
| Fine dust | Below 75um |
| Coarse dust | Below 150um |
| Air velocity | Not more than 2m/s |
| Dust concentration | 2kg/m³ |
| Talc dosage | 2～5kgm³ |
| Dust blowing method |
Top down IP Test Equipment |
| Air flow meter | 1-20L/M |
| Metal mesh diameter | 50um |
| Nominal distance between lines | 75um |
| Vibration time | 1s～99h (adjustable) |
| Test time timing | 1s～99h (adjustable) |
| Dust blowing control cycle | 1s～99h (adjustable) |
| Vacuum time | 1s～99h (adjustable) |
| Controller control function | (1) Dust blowing time (stop, blowing) h/m/s adjustable; (2) Cycle period can be adjusted arbitrarily; (3) Preset test time: 0s～999h99m99s can be adjusted arbitrarily; (4) Power-on method: off -On-off |
| Circulating fan | Enclosed alloy low-noise motor. Multi-blade centrifugal fan |
| Vacuum pump range | 60-600L/H |
| Observation window | 1 pc |
| Lighting | 1 pc |
| Control system test piece power socket | Dustproof socket AC220V 16A |
| Control system | PLC controller + touch screen |
| Communication method | The device can be connected to a computer, and it can be operated on the computer like the machine itself |
| Vacuum system | Pressure regulating valve, suction nozzle, three-piece pressure regulating set, connecting pipe, vacuum pump |
| Dust heating system | Stainless steel mica sheet heating jacket |
| Inner material | SUS304 stainless steel mirror panel |
| Outer material | A3 iron plate electrostatic spray treatment |
