Electric Vibration Test System Mechanical Strength Test 2000kgf 20000N
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0013 |
|
Detail Information |
|||
| Model: | AM0013 | Accuracy: | Level 0.5 |
|---|---|---|---|
| Size: | 800X700X1500(mm) | Test Pressure Range: | 0--1500BAR(150MPa) |
| Actuate Barometric Pressure: | 6.9BAR | Power Requirements: | 220V 50HZ 0.15KW |
| Pressure: | 3-6.9bar | Flow: | 2M3/min |
| Highlight: | 150MPa Mechanical Strength Test Bed,0.15KW Mechanical Strength Test Bed,Automobile Pipe Fittings Strength Test Equipment |
||
Product Description

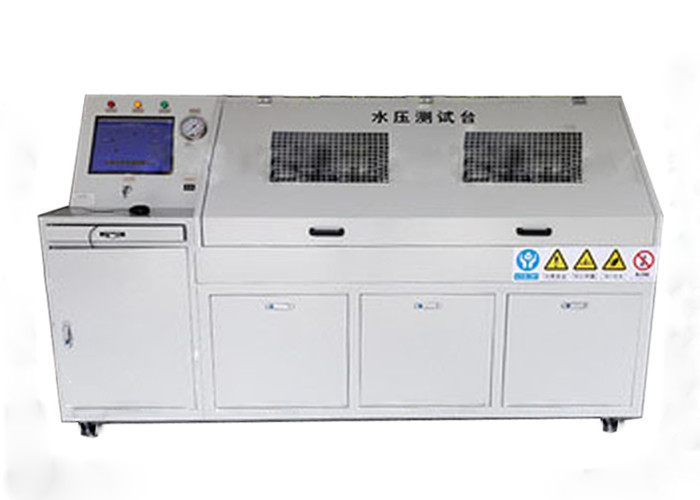

Test-bed for pressure-resisting explosion of automobile pipe fittings Mechanical Strength Test
Basic data:
Model: JB-150-BK
Measuring scope: equipment for pressure resistance and blasting test of products
Measuring object: mainly used for radiator, condenser, evaporator, intercooler, warm air core, oil cooler, heating,etc
Accuracy: level 0.5
Size: 800X700X1500(mm)
Product overview:
The water pressure testing machine is mainly used for various hoses, metal pipes, various automobile pipelines, condensers, heat exchangers and hydraulic hoses of construction machinery, steel pipes, pressure vessels, globe valves, plug valves, check valves, ball valves, control valves, valve groups and other high pressure valves, body Strength Test and high-low pressure hydraulic test for Petroleum Machinery and instrumentation valves.
Parameter:
| Test medium: | municipal tap water or customer agreed medium |
| Test pressure range: | 0--1500BAR(150MPa) |
| Actuate barometric pressure: | 6.9BAR |
| Boost mode: | automatic, preset rate of 100BAR/ min-6000bar /min |
| Pressure relief mode: | automatic |
| High pressure outlet: | 1 way (G1/4x600 internal thread) |
| Pressure measurement accuracy: | precision pressure sensor,level 0.5 |
| Power requirements: | 220V 50HZ 0.15KW |
| Actuation mode: | compressed gas and power supply |
| Requirements for actuating gas: |
Pressure :3-6.9bar Flow: 2M3/min |
| Size: |
Control cabinet size :800X700X1500 Test chamber:2000X900X1200 , buffer layer 2mm+ |
