NF-2 Needle Flame Tester High Precision Fire Test Equipment IEC60695-11-5 Certification Butane Gas Flame Test
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 15 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | GW-2 |
|
Detail Information |
|||
| Standard: | IEC 60695-2-10 | Usage: | Fire Hazard Testing |
|---|---|---|---|
| Glow Wire Material: | Nickel/Chromium(> 77 % Ni/20 ± 1 % Cr) | Glow Wire Diameter: | 4.0±0.07mm |
| Specimen Movement Speed: | 10mm /s - 25mm /s | Specimen Pressure On Glowing Filament: | 0.95N±0.1N |
| Silver Foil Purity: | 99.8% | System: | PLC Control |
| Highlight: | IEC 60950 Flammability Testing Equipment,25mm/s Flammability Testing Equipment,PLC Flammability Testing Equipment |
||
Product Description

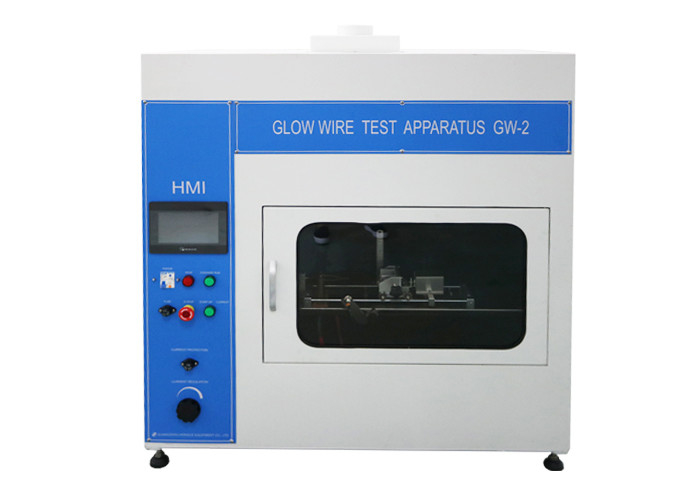

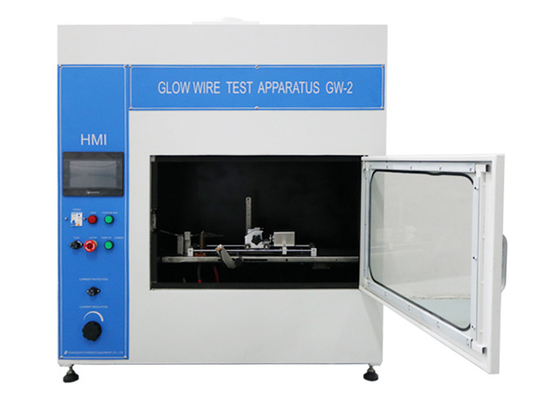

IEC 60950 Fire Hazard Glow-wire Flammability Testing Equipment
Standard:
IEC60695-2-10 Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure;
IEC60695-2-11 Fire hazard testing – Part 2-11 : Glowing/hot-wire based test methods – Glow-wire flammability test method for end-products;
IEC60695-2-12 Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials;
IEC60695-2-13 Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials.
Application:
The glow wire test apparatus simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in a short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the no flame ignition source fire test to test initiation temperature and flammability index of related glowing filament. Flammability Testing Equipment
Feature:
The control system adopts PLC and touch screen control, each parameter can reflect the real situation of the relevant parameters more timely and accurately, and the operation is intuitive and convenient, so as to meet the needs of scientific research.
Parameter:
| ParametersModel | GW-2(Touch screen) |
| Working voltage | 220V /50Hz(customizable) |
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote control |
| Glowing filament | Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape,horizontal standing |
| Specimen pressure on glowing filament | 0.95N±0.1N |
| Maximum depth of heating | 7mm ± 0.5mm. Flammability Testing Equipment |
| Specimen movement speed | 10mm /s ～ 25mm /s |
| Temperature calibration | Calibration temperature:960°±10°C, the hot wire by electric heating |
| Thermocouple: 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100° | |
| Silver foil: purity 99.8%, area :2m², thickness:0.06mm | |
| Tray | A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample |
| Test chamber | >0.5 cube,sample distance from the inside of the box is greater than 100mm, black yogon background,background illuminance ≤ 20Lx,with exhaust fan |
| Testing time | 30s±1s |
| Test procedure | The test sample is driven by the car and automatic run, the car will return automatically after glow-wire entered the test sample of 7mm |
| Lighting | Equip with lighting in the test chamber, with control |
