Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HH0820 |
|
Detail Information |
|||
| Usage: | Water Ingress Protection Test,rain Simulation Testing,dripping Test Equipment,Rain Test Equipment | Product Name: | IPX1~8 WATERPROOF TEST SYSTEM |
|---|---|---|---|
| Vertical Rain-drop Area: | 1000mm×600mm | Standard: | IEC60529 |
| Needle Hole: | Φ0.4mm | Vertical Rain-drop Flow: | 1mm/min, 3mm/min |
| Oscillating Tubes: | R600mm, R800mm, R1000mm(Standard Configuration) | Oscillating Tubes Test Flow: | 0.5-10L/min |
| Diameter Of Turntable: | Ø600mm | IPX8 Pressure Tank: | Ø600mm*1000mm |
| Highlight: | 1PX8 Protection Against Water Test System,IEC 60529 Protection Against Water Test System,IPX1 IP Test Equipment |
||
Product Description

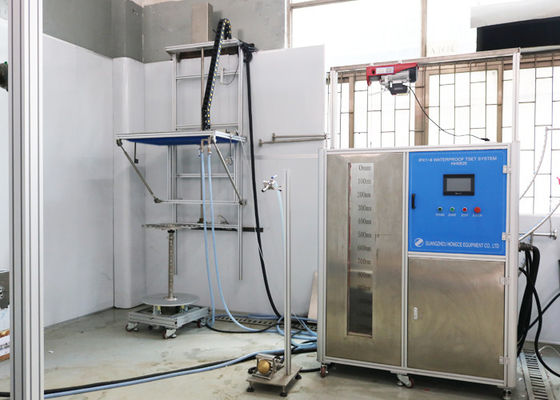

Test System For Protection Against Water IPX1-1PX8 IP Test Equipment
Standard:
IEC60529 degree of protection provided by enclosures (IP Code), clause 14.2.1, 14.2.2, 14.2.3, 14.2.4, 14.2.5, 14.2.6, 14.2.7, 14.2.8, and figure 3, figure 4, figure 5 and figure 6, IPX1, IPX2, IPX3, IPX4, IPX5 IPX6, IPX7 and IPX8;
DIN40050-9 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects),protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water);
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access. IP Test Equipment

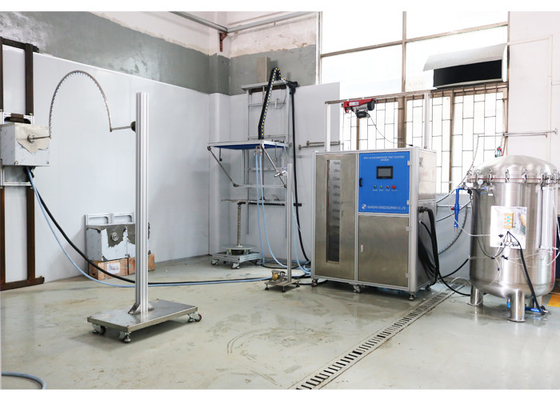

Consist of:
1. Diameter 600mm turntable;
2. Water supply tank (also for IPX7 immersion test) and electrical control cabinet;
3. Drip test area 1000*600mm for IPX1-2 test;

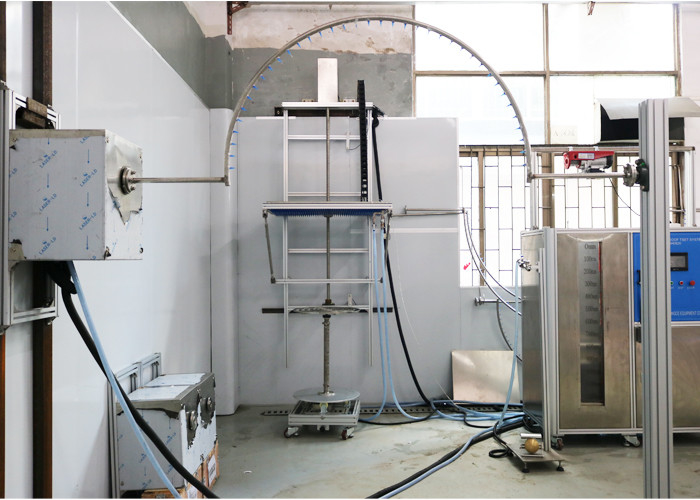

4. R400mm, R600mm, R800mm oscillating tubes for IPX3-4 test;
5. Hand-held spray nozzle for IPX3-4 test;
6. Jet nozzle for IPX5-6 test;
7. Fixed bracket for hand-held spray nozzle and jet nozzle;
8. Diameter 800mm tank for IPX8 immersion test.
Parameter:
| Item | Specification |
| Power supply for machine | AC220V/60Hz, three-phase five wire |
| Power supply for test sample | ≤ 440Vac 16A |
| Test range | IPX1 to IPX8 |
| Vertical rain-drop area | 1000mm×600mm |
| Vertical Rain-drop aperture | Ф0.4mm |
| Vertical Rain-drop hole distance | 20mm |
| Rainfall by way of Vertical Rain-drop | 1mm/min, 3mm/min |
| Rain-drop height | 200mm |
| Testing time | 10min. |
| Radius of oscillating tubes | R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm for option |
| Rainfall by way of oscillating tubes | 0.5-10L/min. IP Test Equipment |
| Angle of oscillating tube | 1-350° |
| Aperture of spraying nozzle | Ф0.5mm |
| Number of spraying nozzle hole | 121 |
| Spherical diameter of spraying nozzle | SФ75.5mm |
| Spraying pressure | 50-150Kpa(10L/min) |
| Aperture of jet nozzle | Ф6.3mm (IPX5); Ф12.5mm (IPX6) |
| Rainfall by way of jet nozzle |
12.5±0.626L/min(IPX5); 100±5L/min(IPX6) |
| Rotating speed | 1r/min, 15°inclinable |
| Height of turntable | 1200-1800mm adjustable |
| Diameter of turntable | Ø600mm |
| Rotating speed of turntable | 1rpm |
| Available tilt angle | 15° |
| Rotating angle of turntable | 90°/360°clockwise and counterclockwise rotation, continuous rotation |
| IPX8 pressure tank | Ø600mm*1000mm |
