NF-2 Needle Flame Tester High Precision Fire Test Equipment IEC60695-11-5 Certification Butane Gas Flame Test
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate(cost additional) | Model Number: | HVF-5A |
|
Detail Information |
|||
| Control Operation Mode: | PLC Control, Touch Screen Operation | Burner: | Barrel Length 100±10mm, Internal Diameter 9.5 ± 0.3mm |
|---|---|---|---|
| Burner Wing Top: | Internal Length 48±1mm And Internal Width 1.3±0.05mm | Support Gauze: | 215 Mm Long By 75 Mm Wide |
| Gas Flow: | 965±30ml/min | Flame Height: | 38±2mm |
| Product Name: | Flammability Test Chamber | Standard: | ISO9772 |
| Highlight: | 50Hz Flammability Test Apparatus,ISO9772 Flammability Test Apparatus,220V Flammability Test Apparatus |
||
Product Description

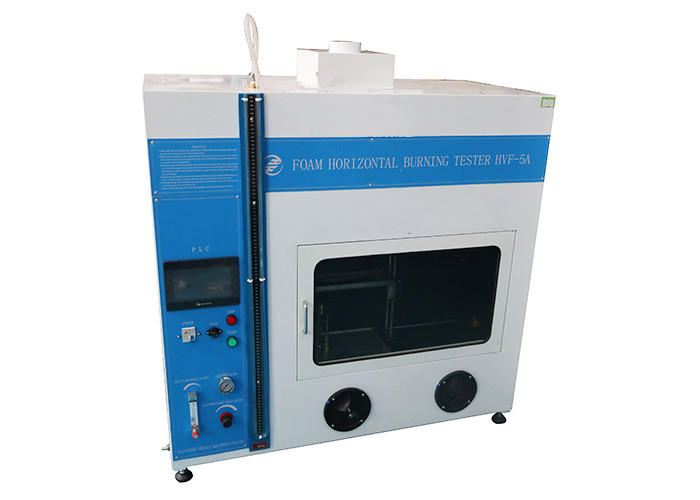

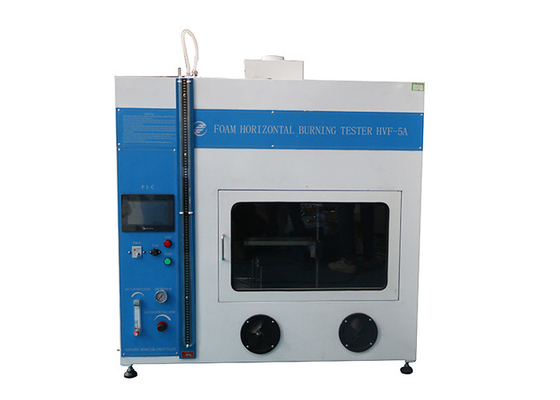

Flammability Testing Equipment ISO 9772 Horizontal Burning Test For Cellular Plastics
Standard:
ISO 9772 ‘Cellular plastics — Determination of horizontal burning characteristics of small specimens subjected to a small fame’.
This International Standard specifes a small-scale laboratory screening procedure for comparing the relative burning characteristics of horizontally oriented, small cellular plastic specimens having a density less than 250 kg⋅m−3 determined in accordance with ISO 845, when exposed to a small-fame ignition source. Flammability Testing Equipment
Parameter:
| ParametersModel | HVF-5A(Touch screen) |
| Working voltage | 220V/50Hz |
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote control |
| Burner |

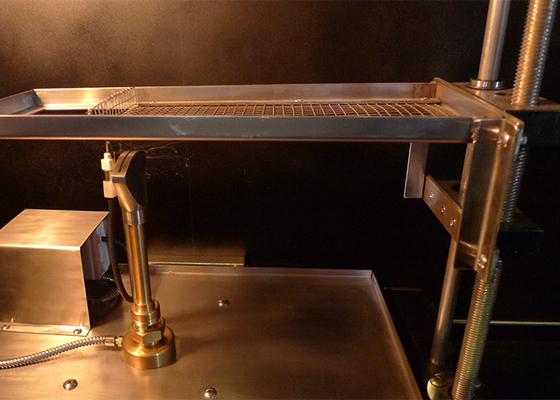

As specifed in ISO 10093, having a barrel length of (100 ± 10) mm and an internal diameter of (9.5 ± 0.3) mm; Burner wing top, having an opening of internal length (48 ± 1) mm and internal width (1.3 ± 0.05) mm
|
| Support gauze |
Approximately 215 mm long by 75 mm wide, 6.4 ± 0.5 mm mesh
|
| Gas pressure | 0.1MPa |
| Gas flow and gas category | 965±30ml/min, for the methane gas purity of 98% , it can also use the mixed gas or propane gas, flow meter adjustment |
| Combustion / self extinguishing time | 0-9999X0.1S |
| Distance between the burner wing top to the test sample | 13±1mm. Flammability Testing Equipment |
| Flame height | 38±2mm, blue flame |
| Lighting | Equip with lighting in the test chamber, with control |
| Test chamber and dimension | Inside volume of at least 0.5 m3, inside surfaces of the chamber shall be of a dark colour, the recorded light level shall be less than 20 lux |
