Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HH0802 |
|
Detail Information |
|||
| Standard: | IEC60529, ISO 20653 | Pressure Gauge: | 0-0.25MPa |
|---|---|---|---|
| Turntable Diameter: | 600mm | Needle Hole: | Φ0.4mm |
| The Radius Of The Swivel Tube: | R200-R1600mm. Optional | Water Flow: | 1-10L/min Adjustable |
| Warranty: | 1 Year With Lifetime Technology Support | Function: | IP Water Testing Equipment |
| Highlight: | ISO20653 Ingress Protection Test Equipment,Swivel Tube Ingress Protection Test Equipment,R800mm Ingress Protection Test Equipment |
||
Product Description

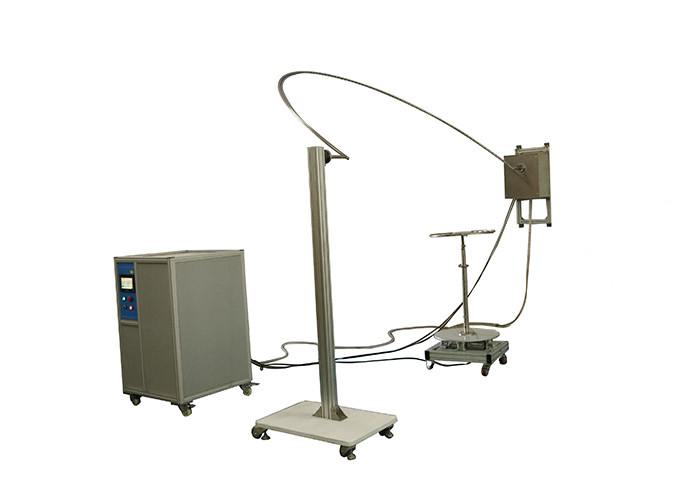

Ingress Protection Test Equipment Protection Against Water Spray R800mm Swivel Tube
Standard:
IEC60529 degree of protection provided by enclosures (IP Code), Figure 4 – Test device to verify protection against spraying and splashing water; second characteristic numerals 3 and 4 (oscillating tube);
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, figure 4 - Test set-up for determining the protection against splash water and water spray (swivel tube); degrees of protection against water 3, 4 and 4K.
Application:
Ingress protection, or IP Testing, is a basic requirement designed to assess the ability of a product to withstand external influences, such as liquids and solids, that it will encounter in it’s natural operating environment.
The International Standard applies to degrees of protection (IP code) provided by enclosures of the electrical equipment of road vehicles.
Protection of electrical equipment inside the enclosure against effects due to ingress of water (protection against water)
Test sample:
The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)
Parameter:
| Item | Parameters. Ingress Protection Test Equipment |
| Water supply |
Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |

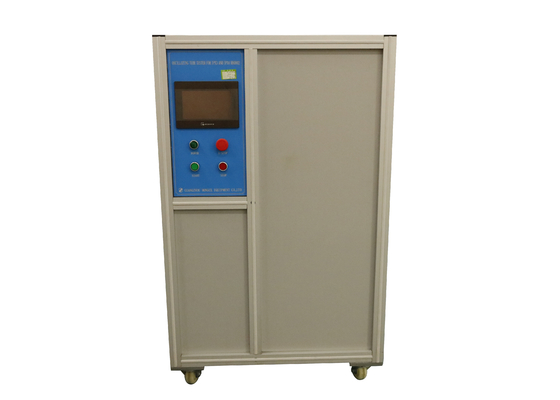

| Control and operation | PLC intelligent control, 7 inch color touch screen operation |

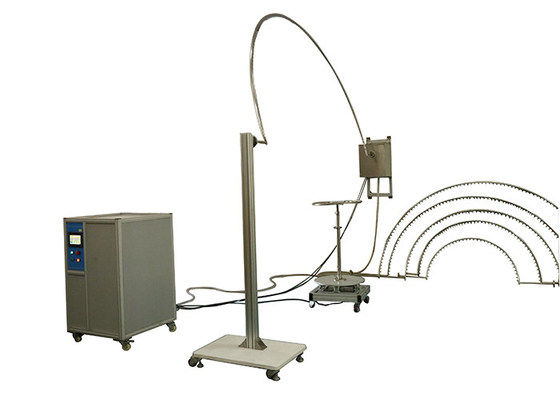

| The radius of the swivel tube | R200 ,R400,R600,R800,R1000,R1200,R1400,R1600mm. Optional, stainless steel |
| Needle hole | Φ0.4mm |
| Included angle of two holes | IPX3: 120°; IPX4: 180° |
| Swivel tube angle | IPX3: 120°(±60°); IPX4: 350°(±175°) |
| Raining speed |
IPX3: 4 s/time(2×120°)； IPX4: 12 s/time(2×350°)； |
| Water flow | 1-10L/min adjustable |
| Testing time | 0.01S-99hours 59min, can be preset |
| Turntable | Diameter: Φ600mm；Rotate speed:1r/min, Can be paused at four aspects, Load bearing≤50kg electrical equipment |
| Pressure gauge | 0~0.25MPa |
| Site requirements |
Dedicated IP waterproof test room, The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation |
| Area covered | It is set according to the selected oscillating tube |
