Detail Information |
|||
| Product Name: | Test Hook Probe HT-I18 | Standard: | IEC60065-1 |
|---|---|---|---|
| Application: | Test Finger Probe | Probe Length: | 180±0.05mm |
| Probe Width: | 8±0.15mm | Hook Length: | 5±0.05mm |
| Test Hook Angle: | 90° | Material: | Stainless Steel |
| Highlight: | Figure 4 Test Hook Probe,IEC60065 90° Test Hook Probe,IEC60065 Test Hook Probe |
||
Product Description

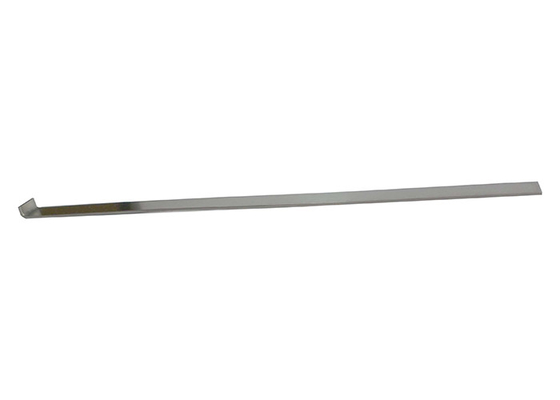

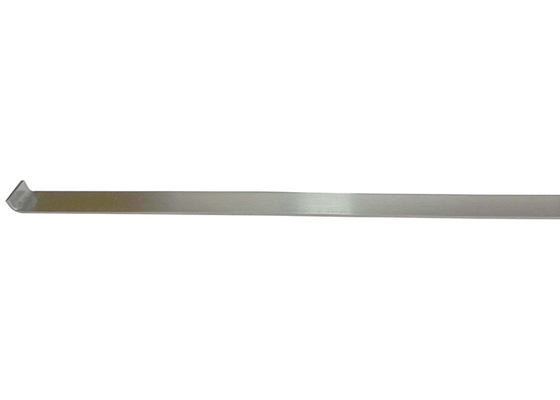

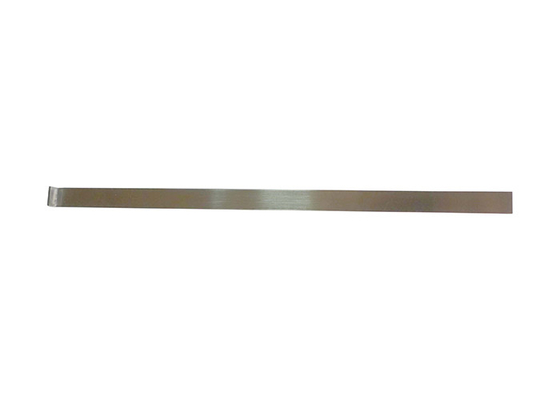

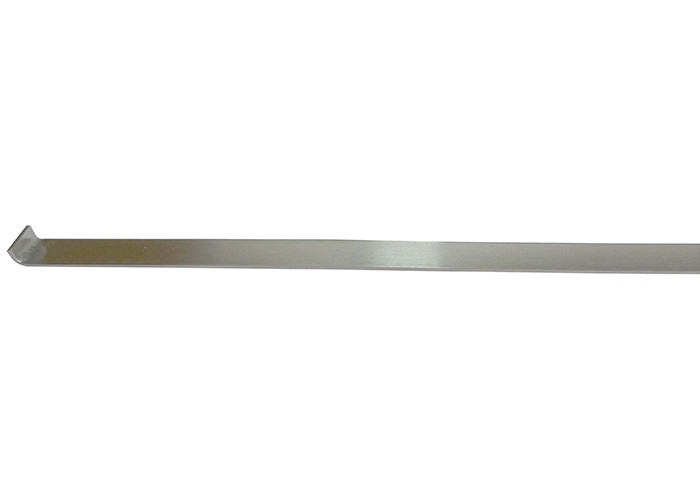

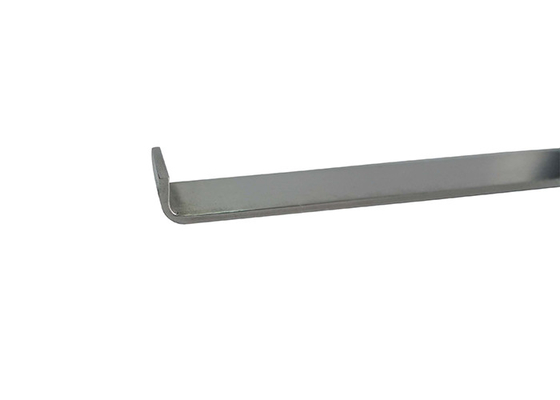

IEC60065 Figure 4 Test Finger Probe Stainless Steel Test hook With 90° angle
Standard:
IEC60065-1 ‘Audio, video and similar electronic apparatus - Safety requirements’ figure 4.
Application:
It is used to test the enclosure mechanical strength of audio,video and similar electronic apparatus.
Test sample:
Audio,video and similar electronic apparatus.Test Finger Probe
Feature:
It is used to test whether the dangerous electric parts can be touched. The test hook is “hooked” into vents and seams in the enclosure & then pulled with a force 20±2 N last for 10s. The hook has a hole at its long end, for use in conjunction with a PFI series Force Gauge. It is made entirely of stainless steel.
Parameters:
| Name/Model | Test hook probe /HT-I18 |
| Probe length | 180±0.05 |
| Probe width | 8±0.15 |
| Hook length | 5±0.05 |
| Test hook thickness | 1±0.15 |
| Test hook angle | 90° |
| Material | Stainless steel
Test Finger Probe |
