IEC61032 Children Finger Probe 18 HT-I12 Hemispherical R4.3±0.05 Finger Probe Diameter Ф8.6±0.1

Minimum Order Quantity :	1 Set	Price :	Negotiatable
Packaging Details :	Aluminum Box	Delivery Time :	20 days
Payment Terms :	T/T, L/C	Supply Ability :	30 set per month

Place of Origin:	China	Brand Name:	HeJin
Certification:	Third party calibration certificate/ CE(cost additional)	Model Number:	HT-I12

Detail Information
Name:	Children Finger Probe 18	Model:	HT-I12
Hemispherical:	R4.3±0.05	Finger Probe Diameter:	Ф8.6±0.1
Finger Probe Length:	57.9±0.15	Joint Distance:	19.3
Axes Of Joints Diameter:	Ф38.4±0.3	Axes Of Joints Length:	101.6±0.3
Handle Diameter:	Ф38.1±0.3	Handle Length:	451.6±0.8
Highlight:	IEC61032 Children Finger Probe , I12 Hemispherical Children Finger Probe

Product Description

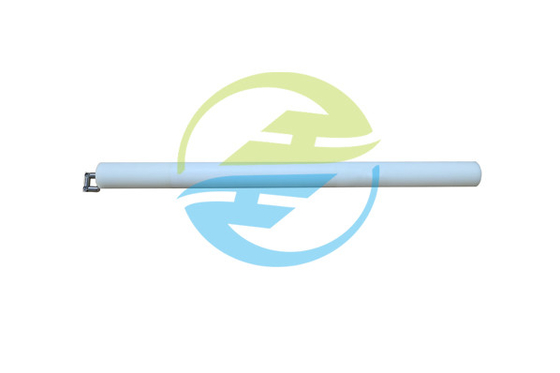

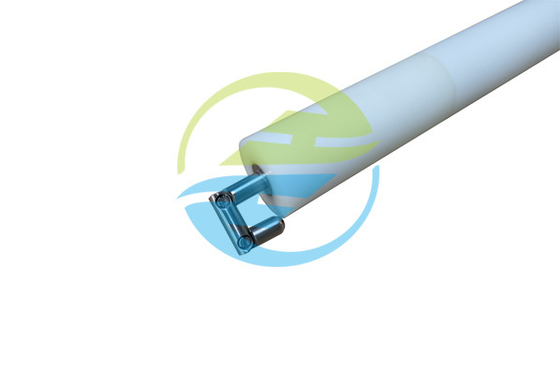

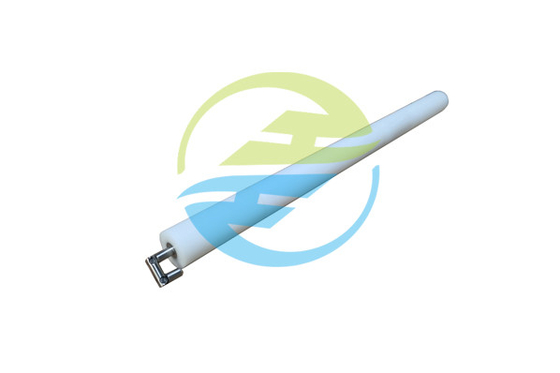

Children Finger Probe 18 HT-I12

Children Finger Probe 18 HT-I12 Hemispherical R4.3±0.05 Finger Probe Diameter Ф8.6±0.1

Standard of Children Finger Probe 18:

IEC61032 figure 12 finger probe 18, IEC335.1,UL1017.

Application of Children Finger Probe 18:

It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.

Feature of Children Finger Probe 18:

Can be combined with the push-pull gauge to achieve force of 10N load test.

Test Sample of Children Finger Probe 18:

Easily accessible enclosure live parts or mechanical parts.

Parameter of Children Finger Probe 18:

Name/Model	Children Finger Probe 18 /HT-I12
Hemispherical	R4.3±0.05
Finger probe diameter	Ф8.6±0.1
Finger probe length	57.9±0.15
Joint distance	19.3
Axes of joints diameter	Ф38.4±0.3
Axes of joints length	101.6±0.3
Handle diameter	Ф38.1±0.3
Handle length	451.6±0.8

IEC61032 Children Finger Probe 18 HT-I12 Hemispherical R4.3±0.05 Finger Probe Diameter Ф8.6±0.1 0
