IEC60065 Short Test Pin Probe HT-I09 IEC61032 Figure 9 Test Probe 13 Metal Pin Tip Diameter Ф3
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Cartoon Box | Delivery Time : | 3 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 30 sets / per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HT-I33 |
|
Detail Information |
|||

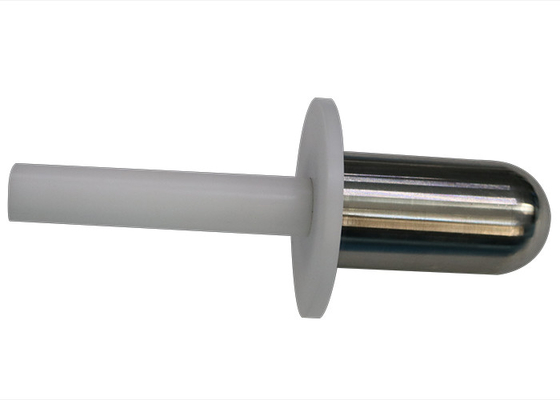

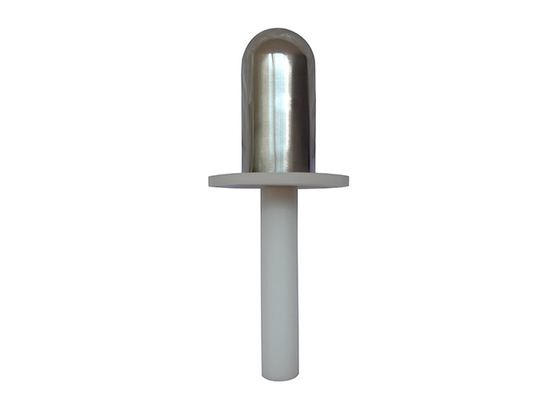

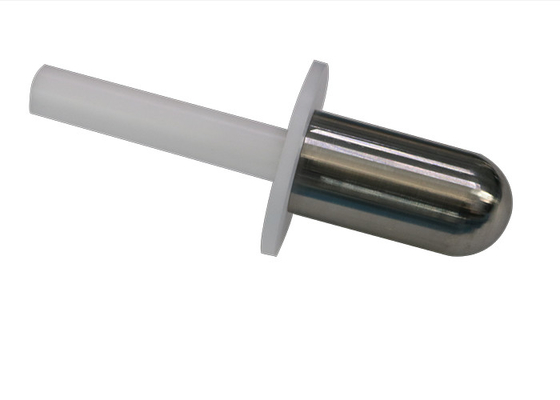

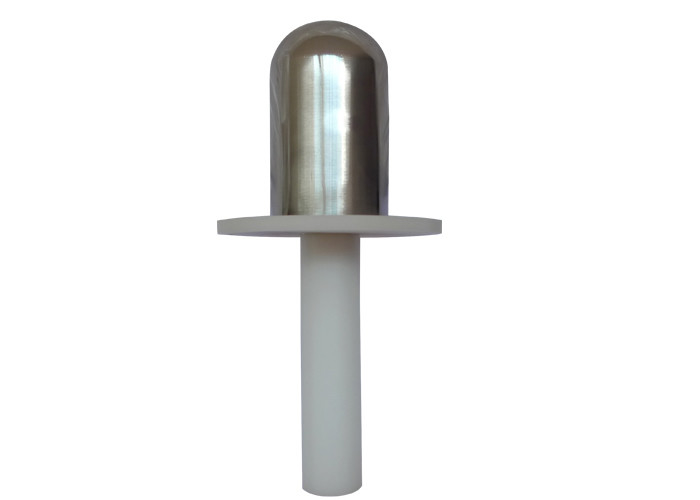

| Product Name: | Cylindrical Rod Test Probe HT-I33 | Standard: | IEC 60335 -2-14 |
|---|---|---|---|
| Application: | Test Finger Probe | Handle: | Nylon |
| Probe: | Stainless Steel | Probe Diameter: | Φ40mm |
| Test Sample: | Hand Held Blender | Cylindrical Rod: | Hemispherical End |
| Highlight: | Cylindrical SS Test Finger Probe,Nylon Handle SS Test Finger Probe,IEC60335 SS Test Finger Probe |
||
Product Description
IEC60335 Test Finger Probe Test Probe Nylon Handle Stainless steel Probe
Standard:
IEC60335-2-14 ‘Household and similar electrical appliances - Safety - Part 1: General requirements’ clause 20.103.
Standard description:
Hand-held blenders shall incorporate a biased-off switch, its actuating member being positioned in a recess or otherwise guarded to prevent accidental operation.
Compliance is checked by applying a cylindrical rod, having a diameter of 40 mm and a hemispherical end, to the switch. The appliance shall not operate.
Application:
The stirrer shall incorporate a biased-off switch that is recessed or guarded to prevent accidental operation. Test Finger Probe
Test sample:
Hand held blender.
Feature:
Appliance is checked by applying a cylindrical rod whose diameter is 40mm and which has a hemispherical end to touch the switch with a force not exceed 5N, the appliance shall not operated.
Parameters:
| Model | HT-I33 |
| Probe diameter | Φ40mm |
| Probe material | Stainless steel |
| Handle | Nylon Test Finger Probe |
