IEC60065 Short Test Pin Probe HT-I09 IEC61032 Figure 9 Test Probe 13 Metal Pin Tip Diameter Ф3
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Cartoon Box | Delivery Time : | 3 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 30 sets / per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HT-I24 |
|
Detail Information |
|||
| Product Name: | Blender Probe HT-I24 | Standard: | IEC 60335-2-14 |
|---|---|---|---|
| Application: | Test Finger Probe | Handle: | Nylon |
| Probe: | Stainless Steel | Probe Length: | 80mm |
| Test Sample: | Handheld Blender | Probe Diameter: | 8.0 Mm ± 0.1 Mm |
| Highlight: | Test Finger Blender Probe,IEC 60335 Blender Probe,80mm Blender Probe |
||
Product Description

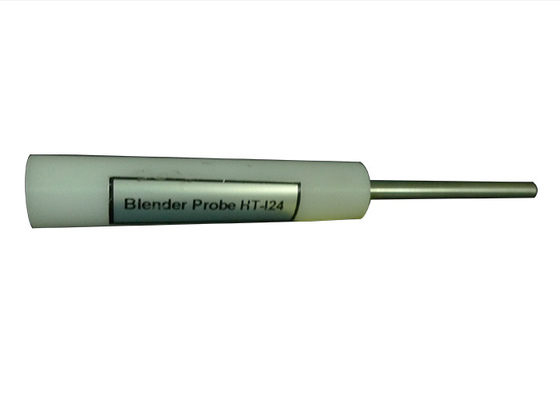

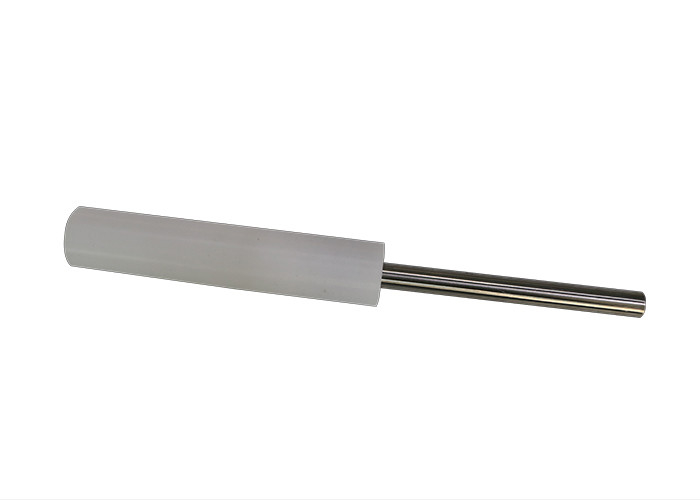

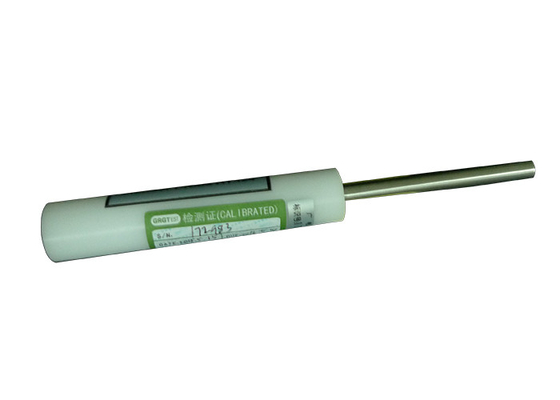

IEC 60335 Test Finger Probe Blender Probe Nylon Handle Stainless steel Probe
Standard:
IEC 60335-2-14 ‘Household and similar electrical appliances - Safety - Part 1: General requirements’ clause 20.102.
Standard description:
Blades of hand-held blenders shall be completely screened from above and shall not be able to touch a flat surface while rotating.
Compliance is checked by inspection and by applying a cylindrical rod from any position between the vertical and an angle of 45° to the upperside of the blending blade. The rod has a diameter of 8.0 mm ± 0.1 mm and unlimited length.
It shall not be possible to touch the blades with the end of the test rod.
Application:
It is used to test whether the blade of hand-held stirrer is completely concealed from above and flat surface can be touched when the blade is rotating.
Test sample:
Handheld blender.Test Finger Probe.
Feature:
The test is achieved by applying a cylindrical rod from any position where the angle between the probe and the blade above is 45°to touch the blade. During the test, it shall not be possible to touch the blades with the end of the test rod.
Parameters:
| Model | HT-I24 Test Finger Probe |
| Probe diameter | Φ8 |
| Probe length | 80 |
| Handle | Nylon |
| Probe | Stainless steel |
