IEC60065 Short Test Pin Probe HT-I09 IEC61032 Figure 9 Test Probe 13 Metal Pin Tip Diameter Ф3
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Cartoon Box | Delivery Time : | 3 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 30 sets / per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HT-I14 |
|
Detail Information |
|||
| Product Name: | Food Waste Probe 31 HT-I14 | Probe Diameter: | Ф25±0.2 |
|---|---|---|---|
| Probe Total Length: | 150±0.2 | Standard: | IEC 61032 |
| Material: | Metal Wire + Nylon Handle | Application: | Test Finger Probe |
| The Length Of The Metal Probe: | 80±0.2 | Tip Diameter Of The Cone: | Ф60±0.2 |
| Highlight: | IEC 61032 Test Probe 31,Food Waste IEC 61032 Test Probe,150mm IEC 61032 Test Probe |
||
Product Description

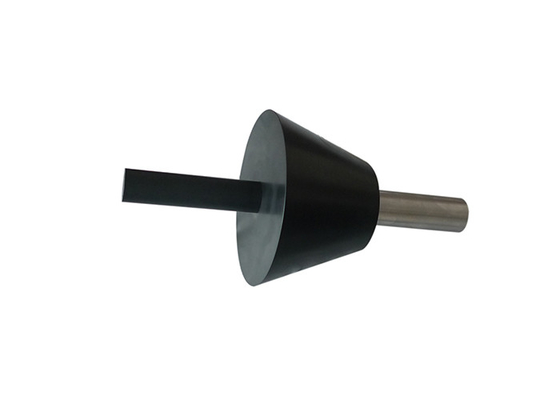

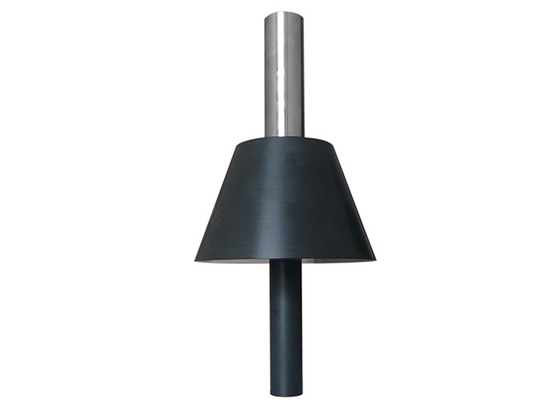

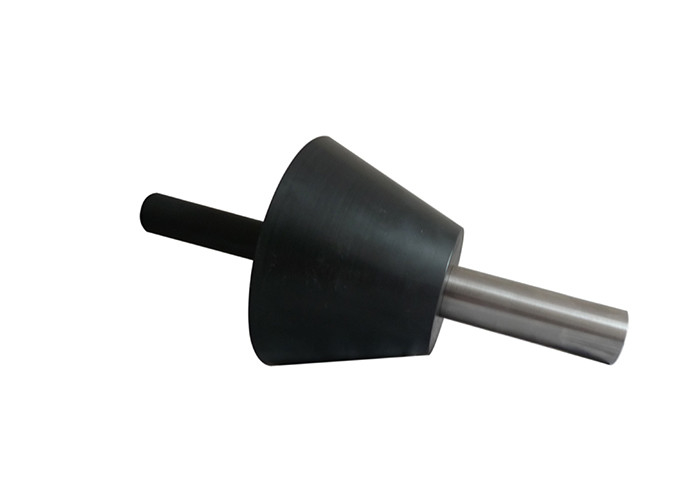

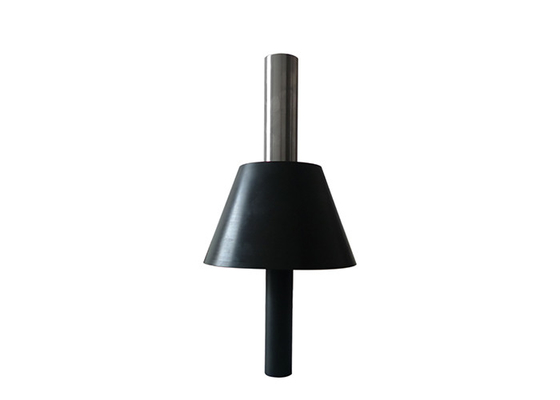

IEC61032 Test Finger Probe Food Waste Probe 31 With 150mm Length
Standard:
IEC61032 Protection of persons and equipment by enclosures - Probes for verification figure 14 test probe 31.
Application:
This probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.
Test sample:
Easily accessible enclosure live parts or mechanical parts. Test Finger Probe
Feature:
Euipped with threaded hole of M6 at the end of the handle(coordinate with pull and push dynamometer)
Parameters:
| Name/Model | Food waste probe 31 / HT-I14 |
| Probe diameter | Ф25±0.2 |
| The length of the metal probe | 80±0.2 Test Finger Probe |
| Tip diameter of the cone | Ф60±0.2 |
| End diameter of the cone | Ф110±0.2 |
| Probe total length | 150±0.2 |
