IEC60065 Short Test Pin Probe HT-I09 IEC61032 Figure 9 Test Probe 13 Metal Pin Tip Diameter Ф3
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Cartoon Box | Delivery Time : | 3 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 30 sets / per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HT-I03 |
|
Detail Information |
|||
| Product Name: | Test Rod Probe C HT-I03 | Usage: | Access Probes Of IEC 60529 (IP Code) |
|---|---|---|---|
| Probe Code: | C, Test Finger Probe | Rod: | Ф2.5mm |
| Description: | Rod: ∅ 2,5 – Length 100 | Standard: | IEC 61032, IEC 60529-1, IEC 60335-1 |
| Material: | Nylon Handle + Metal Rod | Sphere: | Ф35mm |
| Rod Length: | 100mm | Handle Length: | 100mm |
| Highlight: | 2.5mm Rod Test Finger Probe C,IEC Test Finger Probe C,IEC Figure 3 Test Probe C |
||
Product Description

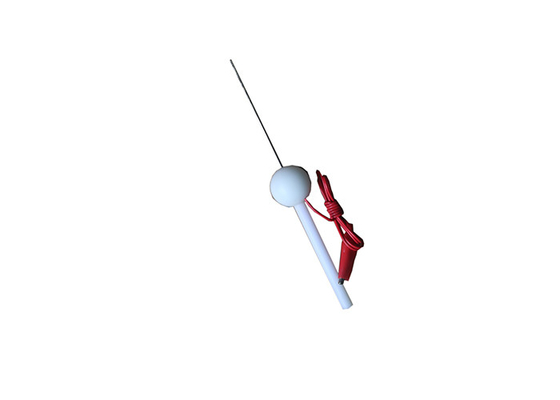

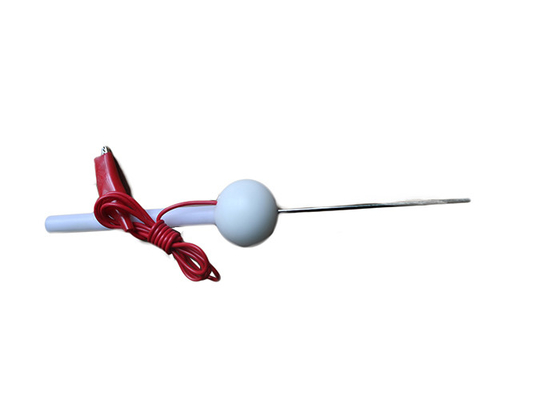

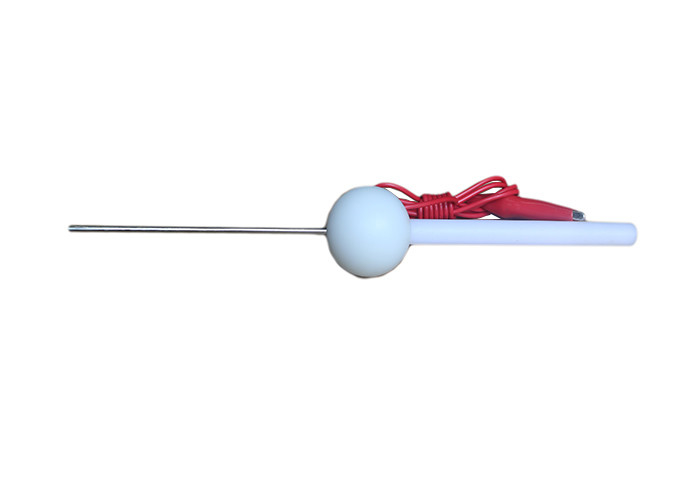

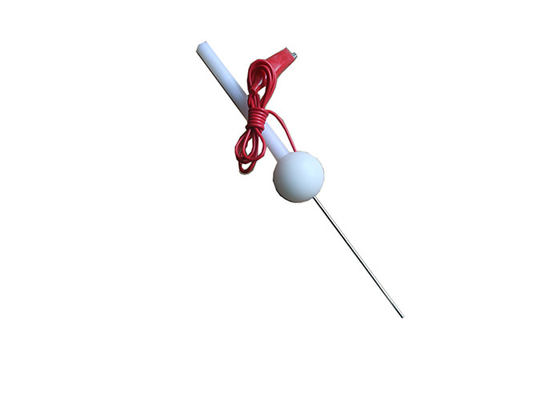

IEC61032 Test Finger Probe Figure 3 Test Probe C With 2.5mm Diameter Rod
Standard:
IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 3 test probe C.
IEC 60529 Degrees of protection provided by enclosures (IP Code) IP3X
IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’
Application:
This rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a tool.
Access probes of IEC 60529 (IP code) to verify protection of persons against access to hazardous live parts or hazardous mechanical parts
Feature:
Can be used with an electrical indicator for anti-electric shock test.
A hole (M6) can be made at the end of the handle for connection with a push-pull gauge. The model with ‘T’ means that this model is with force.
Parameter:
| Model | HT-I03 | HT-I03T |
| Name |
Test probe C Test Finger Probe |
Test rod probe C with force |
| Probe diameter | Ф2.5+0.05 0 | Ф2.5+0.05 0 |
| Sphere diameter | SФ35±0.2 | SФ35±0.2 |
| Handle diameter | Ф10 | Ф10 |
| Probe length | 100±0.2 | 100±0.2 |
| Handle length | 100 | ---- |
| Force | ---- | With force of 3N |
| Applied standard | IEC 61032 | IEC60529 |
