IEC60529 Walk In Figure 2 Sand Dust Test Chamber For IP5X IP6X Test

Minimum Order Quantity :	1 Set	Price :	Negotiatable
Packaging Details :	Plywood	Delivery Time :	30 days
Supply Ability :	10 set per month

Place of Origin:	China	Brand Name:	HeJin
Certification:	calibration certificate (cost additional)	Model Number:	HH0810A

Detail Information
Product Name:	Sand And Dust Equipment	Standard:	IEC60529
Controller:	Touch Screen Control	Function:	Dustproof Test Equipment
Highlight:	Figure 2 Sand Dust Test Chamber , IEC60529 Walk In Test Chamber , IEC60529 Sand Dust Test Chamber

Product Description

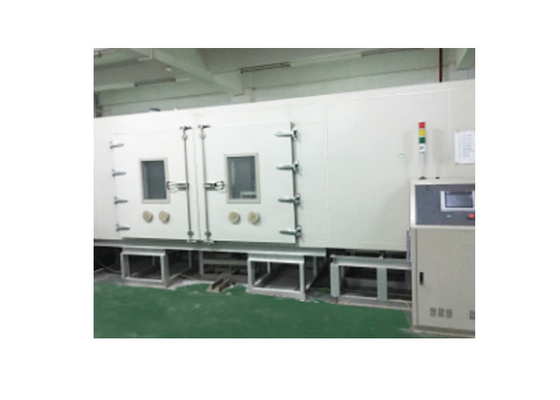

IEC60529 Figure 2 IP Test Equipment Sand And Dust Test Chamber For IP5X IP6X Test Walk In-Type

1. Product overview
Purpose	The dustproof / test chamber is applicable to the dustproof of various parts, including automobile lamps, instruments, electrical dust covers, steering systems, door locks, motors, etc.
Characteristic	Comply with the dust resistance test of automobile parts, electrical parts and other parts Dustproof and dustproof test in accordance with floating type Dust in accordance with jis-d-0270-f2 Digital setting, easy operation and maintenance
Meet the standard	IEC60529 Degrees of protection provided by enclosures (IP code)
Sample weight	Total weight less than 3T
2. Product specifications
Product model	HH0810A
Studio size	D4500mm×W2500mm×H3500mm (customizable)
Volume	40 m3
Boundary dimension	D5000mm×W3200mm×H4550mm (This is the preset size. The actual size is slightly different. If there is a limit on the site, please explain in advance)
3. Technical indicators
Test environment conditions	Ambient temperature is + 10 ℃, relative humidity ≤ 85%, atmospheric pressure: 86-106kpa
Test dust	Dry talcum powder which can go through the sieve of 75μm and the square sieve of wire diameter 50μm.
Dust concentration	2～4kg/m3(Dust consumption)
Allowable temperature value	RT+10℃～60℃
Dust blowing control cycle	1s～99h(Adjustable)
Timing of test time	1s～999h(Adjustable)
Shock time	1S～99H (Adjustable)
Air flow speed	It shall be able to ensure that the test dust settles evenly and slowly on the test sample, and the maximum value shall not exceed 2m / s
4. Structure

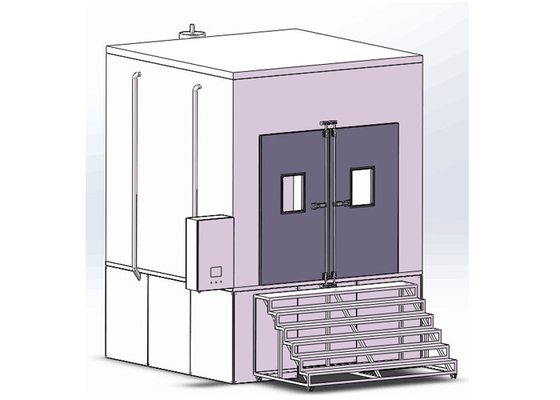

Structural layout	The equipment adopts the method of on-site assembly of walk-in storage plate, and the structure layout is roughly divided into: chamber structure, dust collection system, dust blowing system, control system, etc
Laboratory body	Warehouse material: environmental friendly and flame-retardant rigid polyurethane foam with thickness of 100mm, assembled on site; Outer wall material: milky white steel plate Inner wall material: SUS304 stainless steel plate Sealing: the joint is sealed with imported glass silica gel, which is resistant to silicon oil corrosion; Thermal insulation material: environmental friendly flame-retardant rigid polyurethane foam with a thickness of about 100mm, strong thermal insulation performance
Chamber bottom	At the bottom is the unit room, including the bottom plate grid of the room body, guide rail for loading, dust collection funnel, vibrator, fan, channel steel underframe, etc Bearing capacity: total bearing capacity at the bottom ＞ 3T

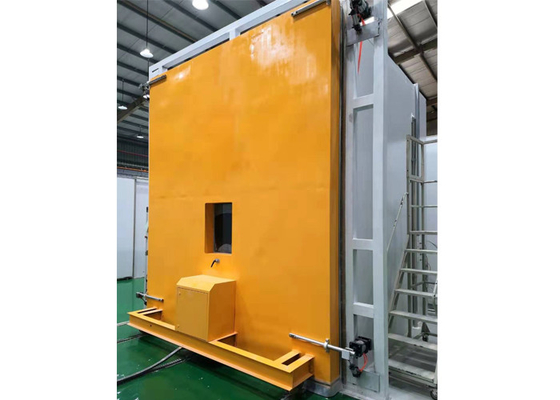

Gate	Gate: manual double hinged door, the size of the door opening is 1800 × 2800 mm; the door sealing strip has strong aging resistance and dust tightness resistance. Observation window: each gate is equipped with a glass observation window, the size is about 500mm wide × 650mm high. A manual dust scraper is installed to observe the test situation of the sample in the box.
Lighting installation	Two sets of damp proof and explosion-proof lamps are installed on the top of the room, and the switch is controlled on the control panel.
Pressure relief balance	One pressure balance port to prevent the pressure of the upper air box from being too high and dust from leaking out
5. Dust collection and blowing system
Dust collecting funnel	Equipped with six cone-shaped dust collection funnels made of stainless steel, which gather near the blow hole of the inner box when the dust falls, and equipped with periodic vibrator and dust discharge port, the dust can be taken out when the machine is stopped.
Vibrator	Strong vibrator, adjustable vibration time and period, make the dust attached to the inner wall fall to the bottom of cone funnel, make the dust concentration uniform
Dust blowing method	The sand dust in the dust collection funnel is blown into the test room through the dust blower at the upper air outlet of the side of the test room for sand dust test
Dust filtration	Precision dust filter, filter bag, balance the pressure inside and outside the box
Dust blower	In order to meet the dust blowing requirements of the whole space, 6 sets of high-power medium pressure fans are equipped. The fans drive the dust of a certain concentration to the test object, and the air flow direction is from up to down.
Dust drying	Install heating ring in front of dust outlet pipe to dry and recycle dust Heater control mode: contactless equal period pulse width adjustment, SSR (solid state relay)
Schematic diagram of dust blowing
Heating dehumidification	Adopt 304 stainless steel heating device, heat and dehumidify to keep the dust dry
6. Control system
Controller	Controller: 7-inch LCD, touch screen programmable controller Display: TFT true color display resolution 800 × 600; display temperature, pressure, test time, etc Operation mode: program mode and fixed mode; Program capacity: 999 programs, each program has a maximum of 999 steps, 999 cycles can be set, and programs can be linked; Time setting: set arbitrarily within 999h69m59s, and control the floating dust time, vibration time and vacuum time separately; Auxiliary functions: it has man-machine dialogue function, which can be expanded through standard RS232 communication interface to realize remote monitoring of equipment, optional network interface (LAN), fault alarm and cause, processing prompt function; power-off protection function, timing function (automatic start and stop), fault display and self diagnosis function: emergency troubleshooting manual, maintenance manual; Recording function: memory accumulation test time;
temperature measurement	Pt100 Platinum resistance
Electric actuator	Electrical components such as relays and contactors shall be imported brands such as Schneider and OMRON or well-known domestic brands to ensure reliable operation and guarantee service life
7. Other configurations
Vacuumizing device	2 sets of independent vacuumizing devices; the maximum flow rate is about 1L / min, and the adjustable pressure is at least 2KPa Including pressure gauge, vacuum pump, air filter, pressure regulating triplet, connecting pipe (connected with 3 sets of air extraction nozzles) Vacuum degree: 2KPa (20mbar)
Test hole	Two sets of ￠ 50mm test holes, including one silica gel plug with high corrosion resistance and dust tightness, are provided for the convenience of users to power on test samples
Socket	Dust proof socket (single-phase 220V / 10kW) 1 set, (three-phase 380V / 60kW) 1 set, (including power supply access, independent control)
Spare parts	Talcum powder particle size < 75um, 20kg 5 bags

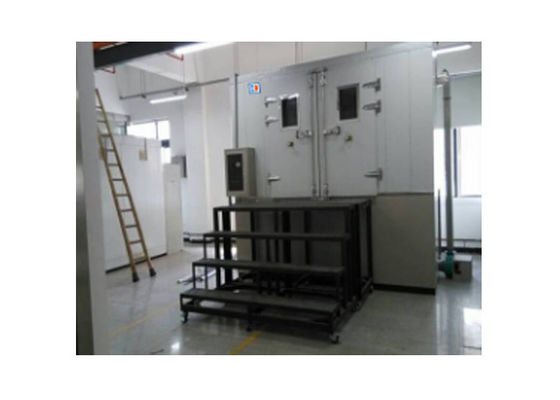

Steps	Equipped with a set of movable steps made of metal to facilitate personnel access to the laboratory
8. Safety protection device
Equipment security	Power overload, short circuit protection, grounding protection, voltage protection Prompt of motor phase loss protection and alarm
9. Service conditions (the user shall guarantee the following conditions and complete the corresponding connection)
Installation site	The ground of the first floor building is flat, and the inclination of the equipment installation position is not more than 1 ° Ground bearing capacity is not less than 2500kg / m2 The site is well ventilated with drainage system. No strong vibration around the equipment No strong electromagnetic field around the equipment No inflammable, explosive, corrosive substances and dust around the equipment Proper use and maintenance space around the equipment
Field	Indoor installation
Environment condition	Temperature: 10 ℃ ~ 35 ℃ Relative humidity: ≤ 85% Air pressure: 86kpa ～ 106kpa
Power supply requirements	Voltage and frequency: AC380V ± 10% 50Hz ± 10% three-phase four wire + protective ground wire The ground resistance of protective ground wire is less than 4 Ω Power switch: the user is required to configure the air or power switch of corresponding capacity for the equipment at the installation site, and the switch must be used independently for the equipment; knife switch or power socket is prohibited; the switch is not more than 2 meters away from the equipment Power capacity: configured according to installed power, about 15kw
Storage environment requirements	When the equipment is not working, the ambient temperature shall be kept within 0 ℃ ~ + 45 ℃ and kept dry.
