Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | IPX56A |
|
Detail Information |
|||
| Usage: | Water Ingress Protection Test | Standard: | IEC60529 |
|---|---|---|---|
| Application: | Water Spray Testing For IPX3 IPX4 IPX5 IPX6 | Water Flow For IPX3-4: | 10 L/min -15 L/min |
| Water Flow For IPX5: | 12.5L/min -18.75 L/min | Water Flow For IPX6: | 100L/min -150 L/min |
| Highlight: | 800L Spray Nozzle Test System,800L IP Test Equipment,60Hz IP Test Equipment |
||
Product Description

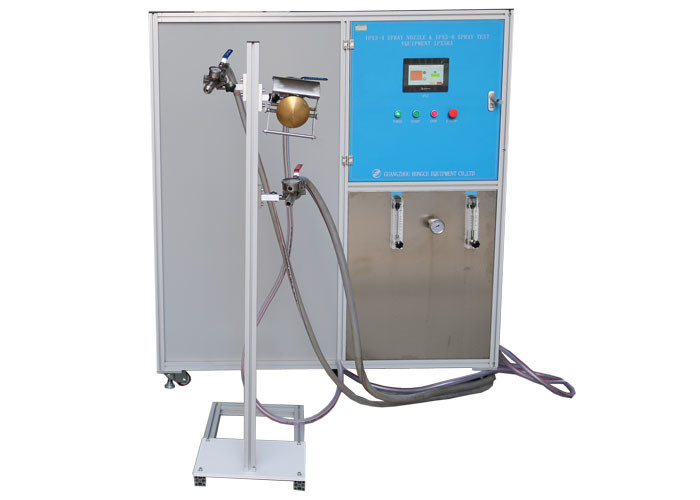

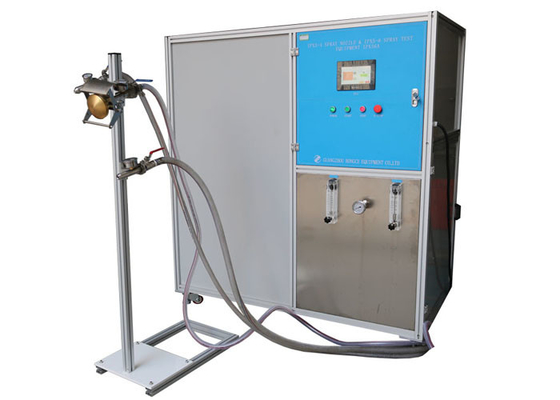

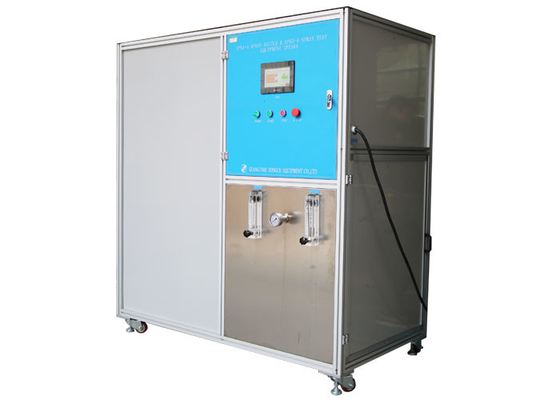

IP Test Equipment Spray Nozzle And Hose Nozzle Test System For IPX3 To IPX6 PLC Control
Standard:
IEC 60529 Degrees of protection provided by enclosures (IP Code) IPX3, IPX4, IPX5, IPX6.
Application:
This machine is suitable for enclosure protection rating evaluation of electrical appliances and electronic equipment, against the harmful effects due to water entering the housing of the device.
Parameter:
| Item | Specification |
| Power supply for machine | AC380V, 60Hz |
| Power supply for test sample | ≤ 440Vac 16A |
| Test range | IPX3 to IPX6 |
| Test time | 0-99min |
| Water tank(L) | 800L (customizable) |
| Water tank material | SUS304# stainless steel |
| IPX3, X4 | |

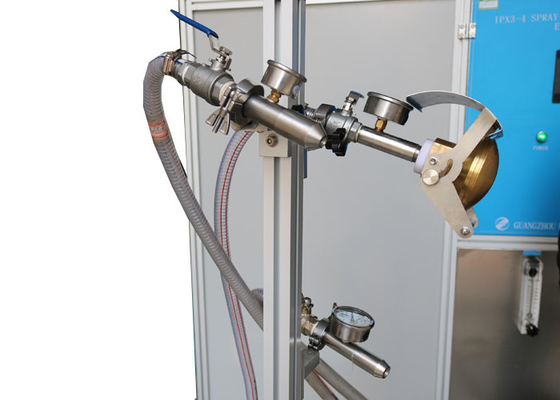

| IPX3,4 Spray nozzle | IEC 60529 Figure 5 Brass head |
| Pressure Gauge | 0 - 1.6 bar |
| IPX3,4 Spray Flow |
10 L/min -15 L/min |
| Number of Holes | 121 |
| Diameter of Nozzle Holes | Φ0.5mm |
| Nozzle Material | Brass ( H62) |
| Flapper Cover Angle | 30° |
| IPX5, X6 | |
| Aperture of jet nozzle |
Ф6.3mm (IPX5); Ф12.5mm (IPX6) |
| Spray flow of jet nozzle |
12.5L/min -18.75 L/min (IPX5); 100L/min -150 L/min (IPX6) |
| Rotary table | |
| Diameter | Φ600mm, Φ800mm and Φ1000mm are available, |
| Rotation Speed | 1r/min |
| Tiltable angle | 15° |
| Test angle of rotation | 90° , continuous rotation |
