Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Carton Box | Delivery Time : | 30 days |
| Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HJ-IPX9K-1000L |
|
Detail Information |
|||
| Product Name: | IPX9/IPX9K Test Equipment | Standard: | IEC60529,ISO20653,DIN40050-9 |
|---|---|---|---|
| Usage: | Water Ingress Protection Test | Water Pressure: | 8000-10000 Kpa |
| Test Time: | 120s (Stay In Each Position For 30s) | Power: | AC380V, 50Hz, 100w (customizable) |
| Highlight: | 4 Nozzle Water Jetting Test Chamber,4 Nozzle IPX9 Test Equipment,Water Jetting IPX9 Test Equipment |
||
Product Description

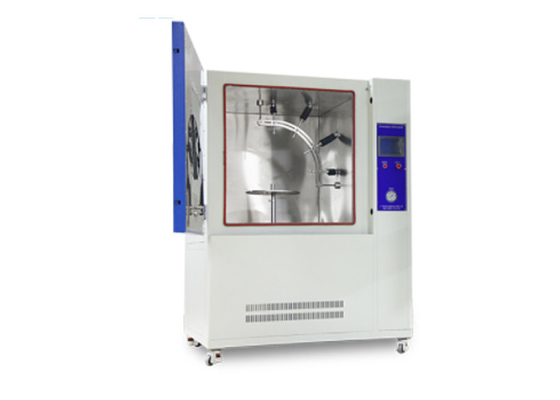

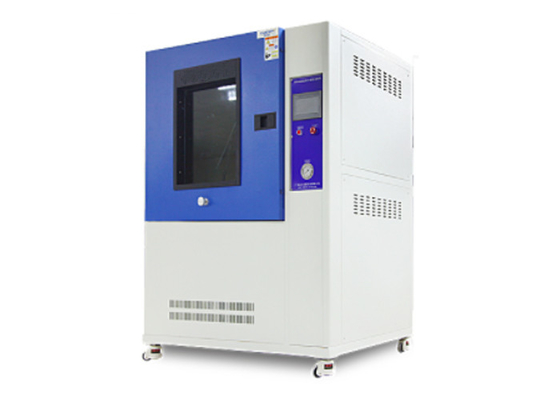

IPX9 Test Equipment High Temperature And High Pressure Water Jetting Test Chamber
Standard:
IEC 60529 Degrees of protection provided by enclosures (IP Code) IPX9.
ISO20653 Road vehicles-Degrees of protection (IP code)-Protection of electrical equipment against foreign objects, water and access figure 7, 8, 9 and table 7 (9K)
DIN40050-9 Road vehicles-Degrees of protection (IP code)-Protection against foreign objects, water and access Electrical equipment figure 8and table 8 (9K)
Application:
It is used for the testing of IPX9/IPX9K. Mainly used in Outdoor lighting field- Street lighting, landscape lights, LED flood lights, etc., Auto parts field, Outdoor cabinet field-Outdoor cabinet industry such as distribution box, battery box, battery cabinet, etc.

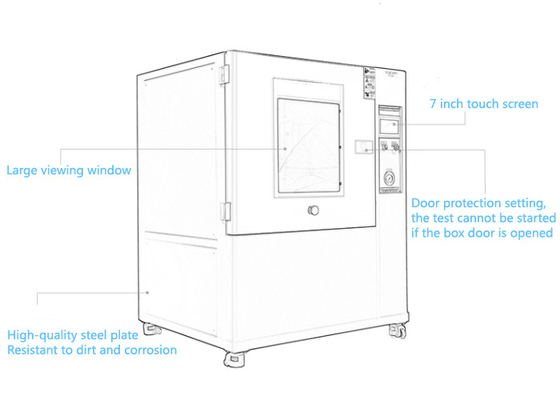

Feature:
1. The outer chamber of the equipment is made of high quality stainless steel, and the inner chamber and the turntable are all made of SUS304 stainless steel, which has high corrosion resistance.
2. There are 4 nozzles for the equipment, the nozzle angle is 0°, 30°, 60°, 90°, and the distance is 100-200mm.
3. 7-inch color touch screen + Panasonic PLC system, the sample can also be controlled by the system, and the remote control function is added.
4. The testing machine test temperature is up to 80±5°C, and the test water pressure can reach 8000~10000Kpa.
5. Inside water tank, cycling use of water.
Parameter:
| Model | HJ-IPX9K-1000L |
| Inner size | 1000x1000x1000mm, (Other sizes can be customized) |
| Outer size | 1200x980x1750mm |
| Number of nozzles | 4 |
| Location of nozzles | 0°, 30°, 60°, 90°, average distribution vertical direction |
| Distance from nozzle to sample | 100-200mm,manully adjustment |
| Water flow | 14-16L/min |
| Water temperature | Room temperature or 80±5°C (the temperature deviation can be agreement) |
| Spray pressure | 8000~10000Kpa |
| Rotary table | Diameter: Φ600mm. Load bearing≤50kg |
| Rotating speed of turntable | 4-10r/min (precisely adjustable) |
| Test time | 120s (Stay in each position for 30s) |
| Power | AC380V, 50Hz, 100w (customizable) |
| Protector | Leakage protection, short circuit protection, water shortage protection |
