Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plastic box | Delivery Time : | 3 days |
| Supply Ability : | 20 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HH0803 |
|
Detail Information |
|||
| Application: | Water Proof Testing | Name: | Handheld Spray Nozzle |
|---|---|---|---|
| Usage: | Water Ingress Protection Test | Standard: | IEC60529 |
| Highlight: | Spray Nozzle IEC 60529,IPX4 Test Equipment Spray Nozzle,Figure 5 Test Equipment Spray Nozzle |
||
Product Description

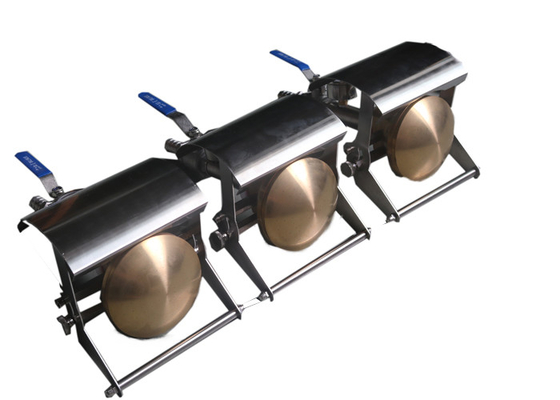

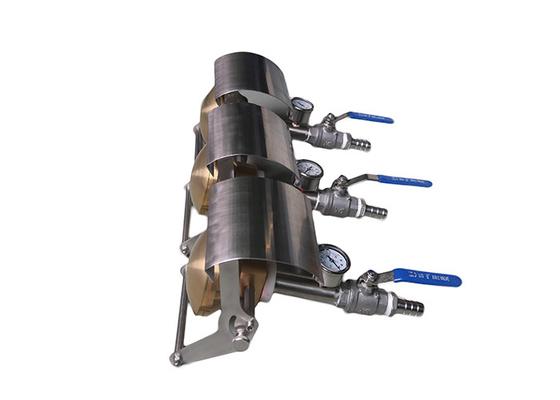

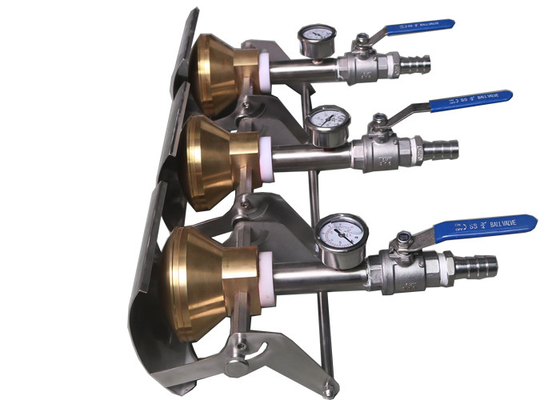

IEC 60529 Figure 5 IP Test Equipment Spray Nozzle For IPX3 IPX4
Standard:
IEC 60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.3 b) Test for second characteristic numeral 3 with spray nozzle and clause 14.2.4 b) Test for second characteristic numeral 4 with spray nozzle and figure 5, IEC 60598-1 clause 9.2.4 and 9.2.5.
Test sample:
Electronic components, outdoor lamps, auto parts and large size test samples etc.
Feature:

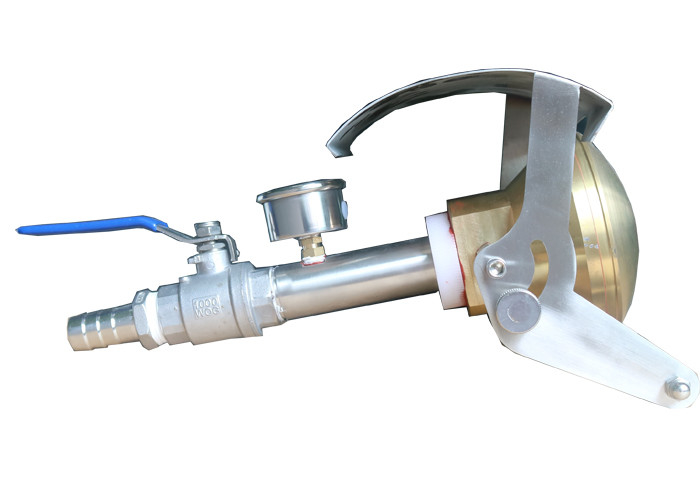

Rust-resistant handheld handle: The handle is made of SUS304 stainless steel, which makes the handle not only beautiful, but also has high anti-rust characteristics.
Add anti-rust coating design: The spray head is made of brass, and the mirror is sprayed with anti-rust coating. The baffle is made of aluminum alloy and processed.
Standard-level numerical production: The mirror surface of the spray head is 360°, and 121 holes are punched in arcs. The number of holes, apertures and angles are completely manufactured according to the standard.
Parameter:
| Item | Parameter |
| Water supply | Water flow rate is ＞10L/min±5%, pressure is 50～150kpa clean water without inclusion. |
| Spray nozzle parameters |
External diameter: Ф102mm spherical diameter: SФ75.5mm 121 holes of Ф0.5mm; 1 hole at the centre 1 inner circles of 12 holes at 30°pitch 4 outer circles of 24 holes at 15°pitch Moving shield-Aluminum Spray nozzle-Brass |
| Water flow | 10L/min±5%, Flow meter is adjustable |
| Pressure gauge | 50～150Kpa, Range of pressure gauge 0～0.25Mpa |
| Baffle | Removable |
| Site requirements |
Dedicated IP waterproof test room, The ground should be flat with illumination With good function of inflow and drainage. |
| Testing time | Manual control, at least 5min |
