NF-2 Needle Flame Tester High Precision Fire Test Equipment IEC60695-11-5 Certification Butane Gas Flame Test
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate(cost additional) | Model Number: | LT-3 |
|
Detail Information |
|||
| Control Mode: | PLC Control | Number Of Drips: | 0-9999 Times |
|---|---|---|---|
| Dropping Liquid Interval Time: | 30±5S | Dripping Liquid Height: | 35±5mm |
| Electrode Pressure: | 1±0.05 N | Testing Voltage: | 0-600V Adjustable |
| Highlight: | Flammability Test Tracking Indices Tester,Platinum Electrode Tracking Indices Tester,Platinum Electrode Flammability Tester |
||
Product Description
IEC60112 Flammability Testing Equipment Tracking Indices Tester With Platinum Electrode And PLC Control
Standard:
IEC60112-2009 Method for the determination of the proof and the comparative tracking indices of solid insulating materials.
Application:
It is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities.
If electrical products affected by moisture and impurities environmental, leakage may be caused on the insulation between different polarity live parts or live parts and grounded metal, the generated arc will cause short circuit or electrical erosion due to discharge, even cause fire. The tracking test is a destructive test to insulating material simulating the above situation, to measure and assess the relative resistance to tracking when the insulator is in the effect of electric and impurities in water-containing.
Feature:
This equipment adopts advanced PLC control system, touch-screen humanized button operating device, high quality materials and professional technology, which make itself has excellent quality, stable and durable performance and beautiful appearance. In addition, automatic drip timing device, accurate electrode pressure sensor display, simple operation and high accuracy improve the efficiency of the test and make our equipment takes a leading position in similar products.
Working principle:

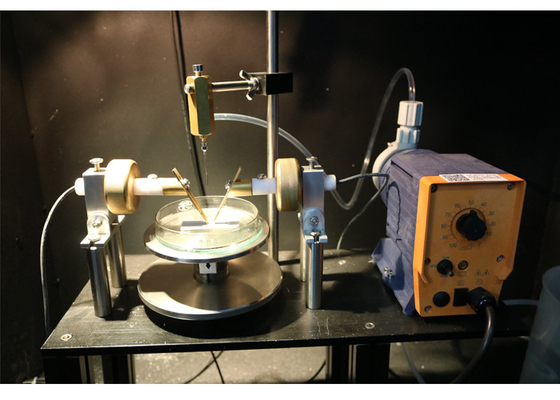

The working principle of the leakage tracking test(tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm ) and required time (30s) drops with the voltage between the platinum electrodes (2mm× 5mm )on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CT1) and electrical resistance index (PT1).
Parameters:

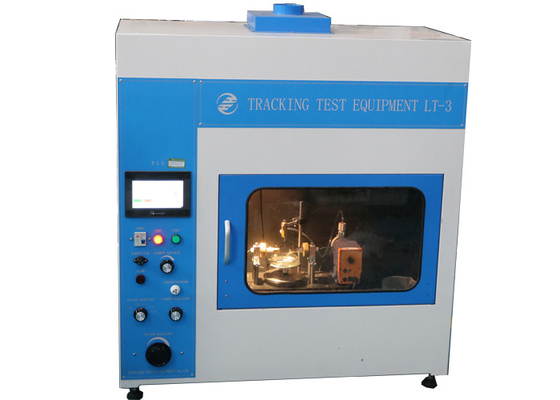

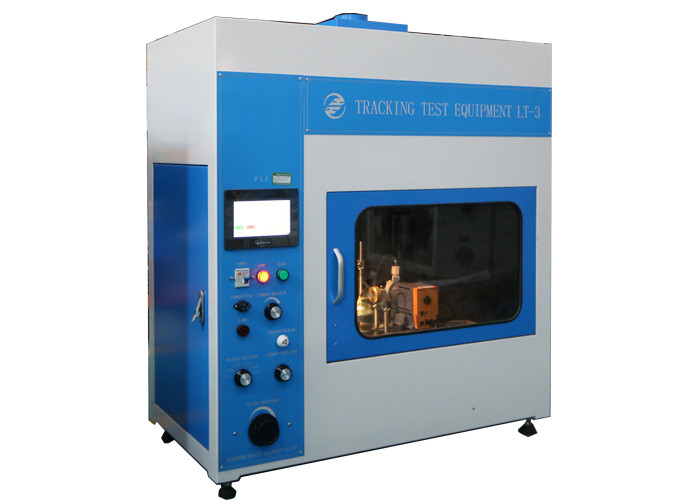

| ParametersModel | LT-3(0.5m³) (Touch screen) |
| Working voltage | 220V/50Hz, 1KVA |
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote control |
| Testing voltage | 0-600V adjustable, precision 1.5% |
| Timing device | 9999X0.1S |

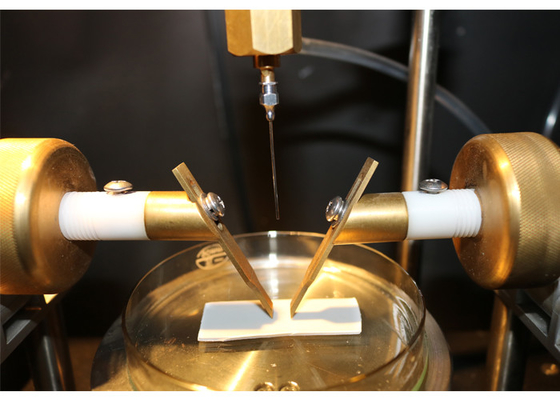

| Electrode |
Material: Platinum electrode and brass connecting rod |
| Size: (5±0.1)×(2±0.1)×(≥12)mm, 30°slant, Tip rounding:R0.1mm | |
| Relative position of electrode | Included angle: 60°±5°, distance is 4±0.1mm |
| Electrode pressure | 1.00N±0.05N, Touch screen display |
|
Dripping liquid |
The interval time of dropping liquid: 30±5S, digital display, can be preset |
|
Height: 35±5mm |
|
|
The number of drips: 0-9999 times, can be preset, the volume size of the dripping liquid is controlled by the imported micro pump within 50 - 45 drips /cm³ |
|
| Test liquid resistance | A liquid 0.1%NH4Cl, 3.95±0.05Ωm, B liquid 1.7±0.05Ωm |
| Time-delay circuit | 2±0.1S (in 0.5A or larger current) |
| Short-circuit pressure drop | 1±0.1A 1%, pressure drop 8% MAX |
| Wind speed | 0.2m/s |
| Environmental requirement | 0-40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas |
