High-precision handheld leak detector Automobile radiator suction gun helium leak detection equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 1 Sets per three month |
| Place of Origin: | China | Brand Name: | HJ |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | HJ177 |
|
Detail Information |
|||
| Workpiece Name: | Evaporator And Condenser | Maximum Leak Detection Pressure: | 2.0~4MPa |
|---|---|---|---|
| Helium Filling Pressure: | 0.9~1.3MPa | Leak Detection Accuracy: | 1 Gram/year |
| Helium Recovery Rate: | ≥98% | Power Supply: | 380V ±10% 50Hz ±10% |
Product Description

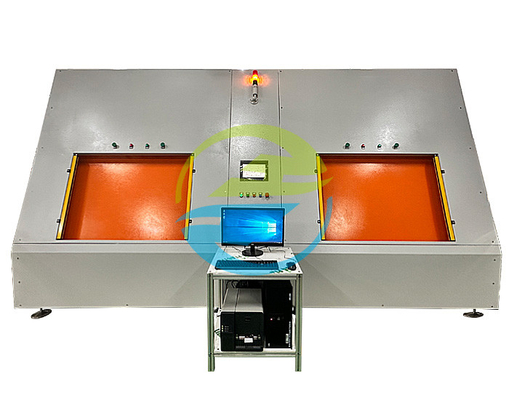

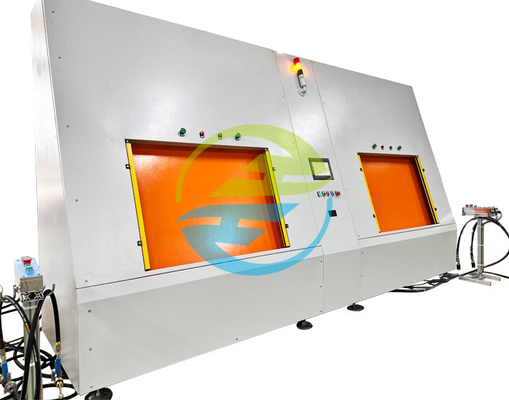

This equipment is suitable for dry leak detection of two air conditioners (evaporator and condenser). Use nitrogen or dry compressed air to test the compressive strength and large leak tightness of the inspected workpiece, pre-evacuate and fill the inspected workpiece with helium, use the vacuum box method to perform helium mass spectrometry air tightness detection, and then recycle the helium in the inspected workpiece. The device can be used to determine the leak rate of the inspected workpiece and whether it is qualified or unqualified.
Why do we need helium inspection? -- Use technology to protect every bit of safety
In the world of refrigeration systems, micron-level leaks may mean energy waste, performance degradation, and even safety hazards. HJ177 is not only a device, but also a "safety sentinel" for your production line. We are well aware that the sealing of the evaporator and condenser is related to product life and environmental responsibility, so we use the ultimate precision of helium inspection technology to give confidence to your quality commitment.
ISO 20485: Nondestructive Testing - Leak Detection Methods
ASTM E493-22: Vacuum Chamber Helium Mass Spectrometry Leak Detection Standard
IEC 60068-2-17: Environmental Testing of Sealed Components
GB/T 12604.7: China National Leak Detection Standard
|
Workpiece name |
evaporator and condenser |
|---|---|
|
Workpiece volume |
<5L |
|
Vacuum chamber inner size |
850*1200*350 |
|
Workpiece entry and exit method |
manual |
|
Number of vacuum chambers |
two |
|
Vacuum chamber inner volume |
357L |
|
Helium recovery rate |
≥98% |
|
Minimum detectable leak rate |
3.5*10-11Pa.m³/s |
|
Power supply |
380V ±10% 50Hz ±10% |
Customized service is available upon consultation with our staff!
Refrigeration industry: Factory sealing inspection of refrigerator/air conditioner evaporators and condensers
New energy field: Leakage prevention verification of power battery cooling systems and hydrogen fuel tanks
Industrial manufacturing: Reliability testing of aerospace hydraulic pipelines and medical device sealing components
Whole machine warranty + extended warranty for core components of helium mass spectrometer
24/7 online engineer: 2-hour response to emergency failure
Free operation training: provide standard operation video library + annual technical seminar invitation
Customized service on demand: support non-standard fixture design and test solution development
