High-precision handheld leak detector Automobile radiator suction gun helium leak detection equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 60 Days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 Set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(Cost Additional) | Model Number: | HJ157 |
|
Detail Information |
|||
| Vacuum Chamber: | Each Vacuum Chamber Tests One Workpiece | Micro-leak Detection Gas: | Helium |
|---|---|---|---|
| Workpiece Leak Detection Gas: | Nitrogen | Workpiece Sealing Method: | Manual |
| Leak Detection Pressure For Major/Minor Leaks: | Piston Accumulator Device ----- 10bar | Alarm Leak Rate: | ≤1×10-6 Mbar·L/s |
| Helium Recovery Rate: | ≥80% | ||
| Highlight: | Piston Accumulator Leak Detector,Helium Recovery Leak Detector,80% Helium Recovery Leak Detector |
||
Product Description
The Gas Leak Detector with ≥80% Helium Recovery - Piston Accumulator Type is an advanced device designed for highly efficient and accurate gas leak detection. It follows a systematic testing process to ensure the integrity of workpieces.
During the operation, the operator first prepares the workpiece with a clear barcode or QR code and checks the equipment's functionality. After scanning the code and placing the workpiece in the fixture, the testing process commences automatically. The vacuum pump evacuates the workpiece, and the pressure sensor monitors the vacuum level. Background noise suppression and helium charging are carried out to enhance the accuracy of detection. In the micro-leak detection stage, helium is pressurized, and the leak detector determines if there is a leak based on the detected helium signal. After testing, the helium is recovered with an impressive recovery rate of ≥80%.
The key parameters of this gas leak detector are as follows:
| Parameter | Specification |
| Vacuum Chamber | Each vacuum chamber tests one workpiece |
| Micro-leak Detection Gas | Helium |
| Workpiece Leak Detection Gas | Nitrogen |
| Workpiece Sealing Method | Manual |
| Leak Detection Pressure for Major/Minor Leaks | Piston accumulator device ----- 10bar |
| Workpiece Fixture | Fixtures are provided based on the production needs of each machine |
| Alarm Leak Rate | ≤1×10⁻⁶ mbar·L/s |
| Production Cycle Time | ≤60 seconds per piece (including workpiece loading/unloading) |
| Helium Recovery Rate | ≥80% |

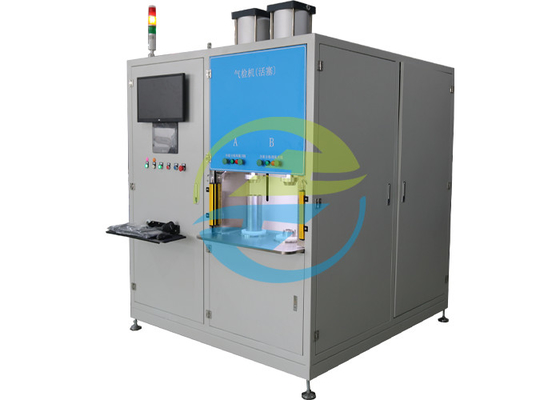

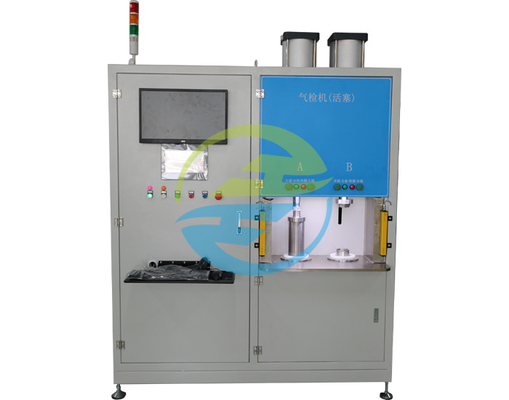

Product Image with Leak Testing Equipment:
