Industrial Grade 75-400kW Vacuum Tempering Furnace With 15,000kg Load Capacity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 Days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 Set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(Cost Additional) | Model Number: | HJ-VF009 |
|
Detail Information |
|||
| Vertical Maximum Dimension(mm): | Φ2200×1800×2000 | Vertical Maximum Furnace Load Capacity(kg): | 15000 |
|---|---|---|---|
| Vertical Minimum Dimension(mm): | Φ800×800 | Vertical Minimum Furnace Load Capacity(kg): | 300 |
| Horizontal Maximum Dimension(mm): | Φ2600×1200×1200 | Horizontal Maximum Furnace Load Capacity(kg): | 6000 |
| Horizontal Minimum Dimension(mm): | Φ500×300×300 | Horizontal Minimum Furnace Load Capacity(kg): | 100 |
| Highlight: | 400kW Vacuum Annealing Furnace,15000kg Vacuum Annealing Furnace |
||
Product Description
Total Power 75~400kW Vacuum Annealing Furnace With Vacuum Furnace Load Capacity 15000kg
Vacuum Annealing Furnace
Power and Load Capacity: The vacuum annealing furnace has a power range from 75 to 400kW and a load capacity of 15000kg.
Application: Specifically designed for small silicon steel laminated cores. It uses vacuum annealing technology to eliminate cold working stress, restore internal grain structure, remove surface impurities of the core, and enhance core magnetic conductivity.
Features: Unique design of metal heaters and heat insulation screens to solve thermal deformation and damage problems at high temperatures. It also has a constant-rate cooling control system for precise temperature control and cooling during annealing of special materials, ensuring product quality stability and reliability.
Product Parameters with Vacuum Furnace:
| Furnace Type | Effective Chamber Size (mm) | Rated Furnace Temperature (℃) | Furnace Load Capacity (kg) | Total Power (kW) |
| Vertical | Φ2200×1800×2000 | 900 | 15000 | 320 |
| Φ1200×1200 | 1200 | 1000 | 220 | |
| Φ1000×1000 | 1200 | 500 | 180 | |
| Φ800×800 | 1200 | 300 | 150 | |
| Horizontal | Φ2600×1200×1200 | 900 | 6000 | 200 |
| Φ2600×1000×1200 | 900 | 5000 | 180 | |
| Φ2000×800×800 | 1600 | 1000 | 400 | |
| Φ1000×600×600 | 900 | 600 | 100 | |
| Φ800×500×500 | 900 | 400 | 80 | |
| Φ600×400×400 | 1200 | 200 | 95 | |
| Φ500×300×300 | 1200 | 100 | 75 |

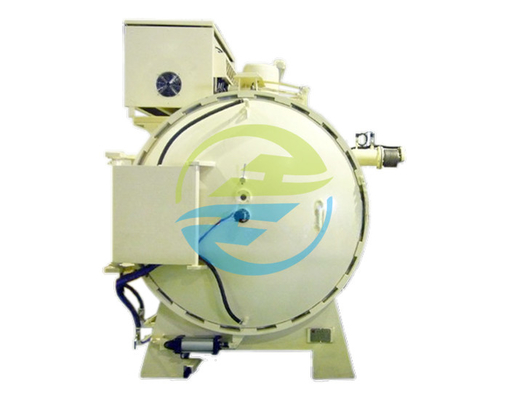

Product Image with Vacuum Furnace:
Company Advantages:
Product Development: The company has its own R & D and design team, providing customers with technological and innovative products. It can offer unique product designs according to customers' ideas.
Technical Support: All workers are experienced and skilled.
After-sale Service: The working and sales teams ensure fast and efficient after-sale service for products sold globally.
Company Profile:
Type: A modern enterprise specializing in R & D, manufacturing, and sales of technology-intensive industrial equipment.
Main Products: Vacuum helium leak detection equipment, automatic brazing machines for gas/liquid filling and recovery systems, lean production lines, laboratory testing equipment, etc. These products are widely used in various industries such as automobiles, refrigeration, power, home appliances, electronics, pharmaceuticals, plumbing, and military.
Expert Leadership: Led by Mr. Li Jianhe, an expert in vacuum and automated testing equipment. The company has its own core technology and holds multiple invention and utility model patents.
Business Model: Adopting a new production model focusing on development and design, assembly and debugging, and after-sales service. It provides products that meet customers' specific usage and technical requirements. The company's products are sold both domestically and exported to many countries and regions in America, Europe, Asia, and Africa.
