High-precision handheld leak detector Automobile radiator suction gun helium leak detection equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 Days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 Set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(Cost Additional) | Model Number: | HJ158 |
|
Detail Information |
|||
| Workpiece: | EB / EA (Maximum Product Capacity: 3.2L) | Leakage Alarm Rate: | <1×10-6 Mbar.L/s |
|---|---|---|---|
| Product Entry/Exit Method: | Roller Conveyor With Loading Plate, Safety Light Grids Equipped At Chamber Door | Number Of Vacuum Chambers: | 1 |
| Vacuum Chamber Size: | Capable Of Inspecting Workpieces (EB: 1 Piece; EA: 1 Or 2 Pieces) | Helium Charging Pressure: | 0-4 Mpa, Equipped With Pressure Reducing Valve |
| Gross Leak Detection Method: | Negative Pressure Hold (vacuum Decay) | Warranty Period: | 1 Year |
| Highlight: | High Precision Helium Leak Testing Machine,Direct Cooling Helium Leak Testing Machine |
||
Product Description
High Precision Direct-Cooling Plate Helium Leak Testing Machine For Leak Testing Equipment
Product Introduction: It's a direct-cooled plate airtight helium leak detector with processes like loading, scanning, evacuation, leak detection, helium filling, and unloading. It detects helium signals to determine workpiece leakage and can switch to suction gun mode for leak point location.
Product Features:
Frame and Cover Plate Unit: Main frame is iron/aluminum profiles, cover plates are painted iron in national standard light gray (RAL 7035).

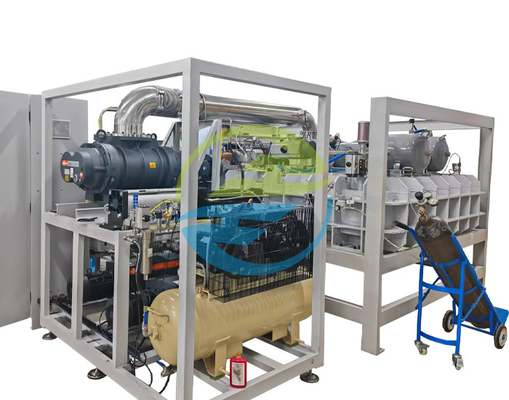

Vacuum Pumping Unit: Comprises vacuum pumps, measurement systems, valves, and piping.
Helium Recovery Unit: Made of buffer tank, compressor, low-pressure vessel, valves, and piping to recover helium.
Helium Filling Unit: Has high-pressure helium tank, valves, and piping. Filling pressure adjustable from 0 to 4 MPa with auto shutdown.
Automatic Helium Replenishment Function Module: Adds fresh helium when system level is low.
Helium Concentration Monitoring Unit: Monitors and controls helium filling with online real-time monitor.
Leak Detection Unit: Has vacuum chamber detection and suction gun location modes.
Product Parameters with Leak Testing Equipment:
| Workpiece | EB / EA (Maximum product capacity: 3.2L) |
| Leakage Alarm Rate | <1×10-6 mbar.L/s |

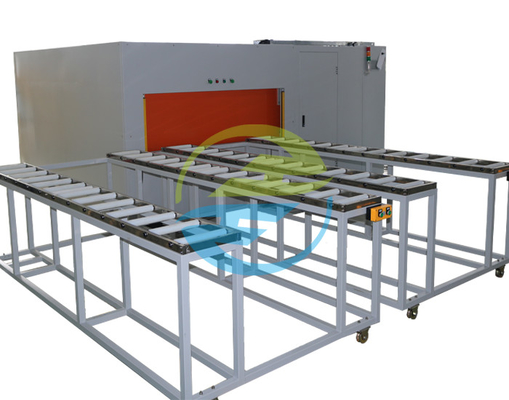

| Product Entry/Exit Method | Roller conveyor with loading plate, safety light grids equipped at chamber door |
| Number of Vacuum Chambers | 1 |
| Vacuum Chamber Size | Capable of inspecting workpieces (EB: 1 piece; EA: 1 or 2 pieces) |
| Helium Charging Pressure | 0-4 Mpa, equipped with pressure reducing valve |
| Gross Leak Detection Method | Negative pressure hold (vacuum decay) |
| Cycle Time | EB: 180S/PCS per chamber (including loading/unloading 70S), EA: 180S/2PCS per chamber (including loading/unloading 70S) |

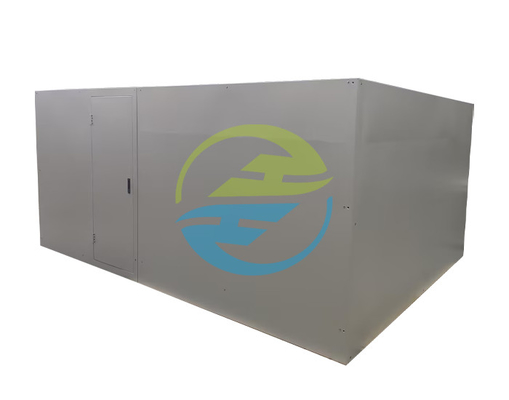

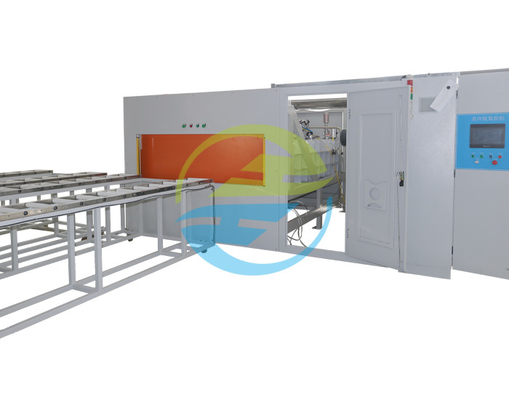

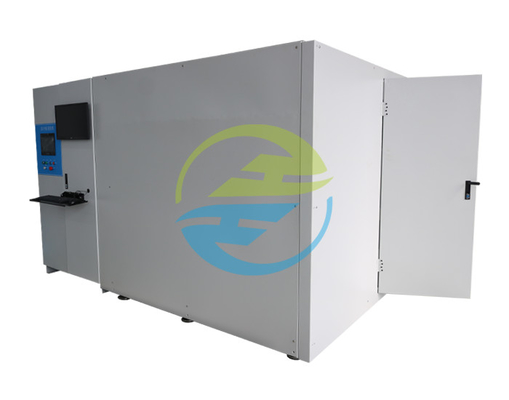

Product Image with Leak Testing Equipment:
Advantage Service:
Technical Support: Experienced and skilled workers.
After-sale Service: Fast and efficient global support.
Customization: Design team for unique product designs based on customer ideas.
Company Information: Guangzhou Hejin specializes in R&D, manufacturing, and sales of industrial equipment like helium leak detection, brazing machines, production lines, and testing equipment. Their products are used in various industries and have core technologies and patents under the guidance of an expert. They follow a comprehensive production model for client satisfaction.
