Ф1320×H1200mm Electron Gun Evaporation Optical Coating Machine 0~60RPM Vacuum Coating Machine KVE-1320

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 90 Days
Payment Terms : L/C, T/T Supply Ability : 10 Set per month
Place of Origin: China Brand Name: HeJin
Certification: Calibration Certificate(Cost Additional) Model Number: KVE-1320

Detail Information

Model: KVE-1320 Chamber: Ф1320×H1200mm
Workpiece Rack Rotation Speed: 0~60RPM (Adjustable) Coating Chamber Pumping Speed: 3.0×10-3Pa≤30min
Ultimate Vacuum Level: 8.0×10-5Pa Coating System: Electron Gun Evaporation, Resistance Evaporation
Sputtering Target Materials: C, Si, Nb, Cr, Al, Ti, And Various Compounds Film Thickness Control: Quartz Crystal Control Or Optical Control
Control System: Industrial Control Computer + Touch Screen
Highlight:

Vacuum Coating Machine

,

Electron Gun Evaporation Optical Coating Machine

,

0~60RPM Vacuum Coating Machine

Product Description

Electron Gun Evaporation Optical Coating Machine



Application Scope:

Precision optical films, electrical films. Such as filter, anti-reflection film, reflective film, optical filter film, dichroic film, bandpass filter film, dielectric film, high reflection film, and other film systems. It is capable of coating film systems with 0-200 layers.



Product Features:

Electron Gun Evaporation Optical Coating Machine Equipped with high-precision electron guns and ion sources. Integrated with resistance evaporation, automatic control of coating process and film thickness, ensuring stable film quality.



Product Parameters:

Project Technical Specification
Model KVE-1320
Chamber Ф1320×H1200mm
Workpiece Rack Rotation Speed 0~60RPM (Adjustable)
Coating Chamber Pumping Speed 3.0×10-3Pa≤30min
Ultimate Vacuum Level 8.0×10-5Pa
Coating System Electron Gun Evaporation, Resistance Evaporation
Sputtering Target Materials C, Si, Nb, Cr, Al, Ti, and various compounds
Film Thickness Control Quartz Crystal Control or Optical Control
Control System Industrial Control Computer + Touch Screen

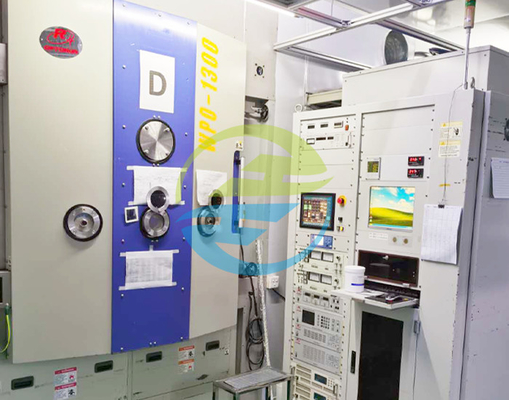

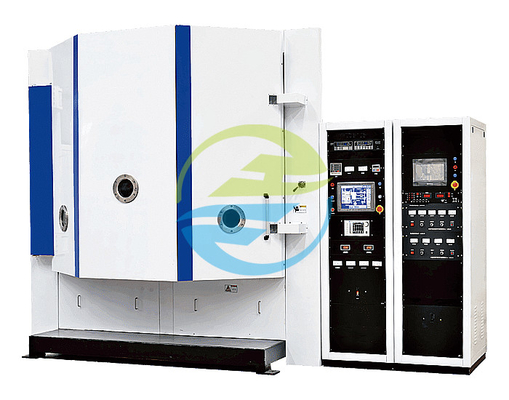

Ф1320×H1200mm Electron Gun Evaporation Optical Coating Machine 0~60RPM Vacuum Coating Machine KVE-1320 0Ф1320×H1200mm Electron Gun Evaporation Optical Coating Machine 0~60RPM Vacuum Coating Machine KVE-1320 1Ф1320×H1200mm Electron Gun Evaporation Optical Coating Machine 0~60RPM Vacuum Coating Machine KVE-1320 2


Our advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.



Technical support:

All our workers are experienced and skilled.


After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.



About Us:

Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in the research and development, manufacturing, and sales of technology-intensive industrial equipment. The company's leading products include vacuum helium leak detection equipment, automatic brazing machines for gas/liquid filling and recovery systems, lean production lines, and laboratory testing equipment. These products are widely used in industries such as automobiles, refrigeration, power, home appliances, electronics, pharmaceuticals, plumbing, military, and others. Led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automated testing equipment, the company possesses its own core technology and holds multiple invention and utility model patents. Relying on a high-level talent team, the company has adopted a new production model focused on development and design, assembly and debugging, as well as after-sales service, and provides products that are suitable for customers' specific usage and technical requirements. Since its establishment, the company has introduced various types of specialized equipment to the market, satisfying domestic market demand while also exporting to countries and regions in America, Europe, Asia, and Africa.
