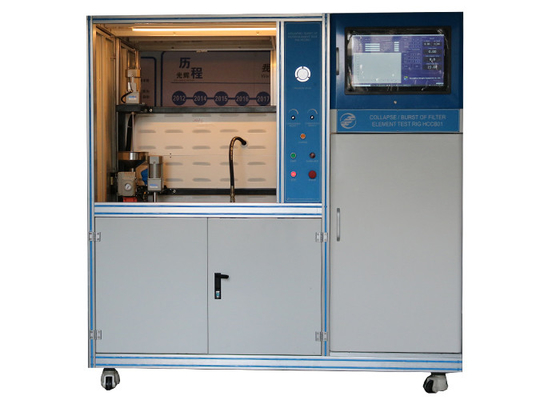

Filter Element 25 LPM Auto Parts Test Equipment ISO 4020-2001 Damage Resistance Testbed

Product Description

Filter Element Damage Resistance Testbed ISO 4020-2001

Product Introduction:

The filter element damage resistance test bench is used to measure the pressure difference when the filter element is structurally damaged to determine the damage resistance of the filter element.

This test is normally performed after the filter has completed the manufacturing integrity test.  Auto Parts Test Equipment

Test Principle:

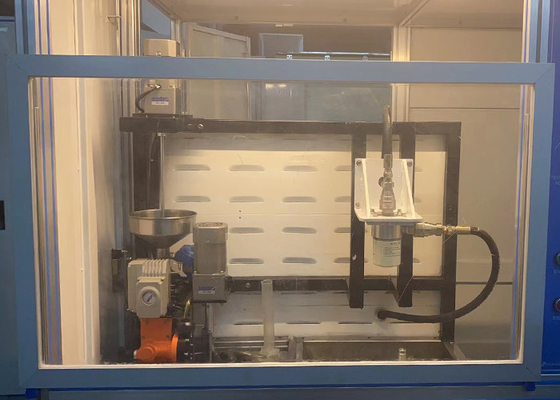

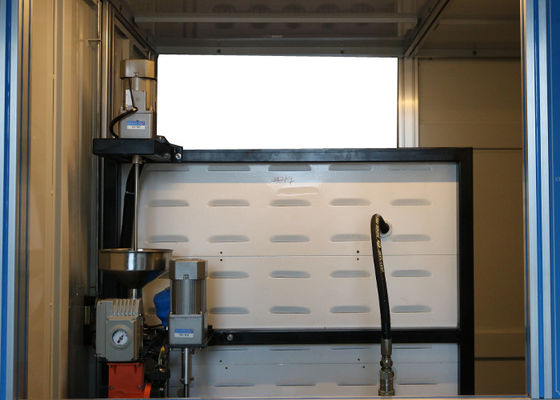

By adding appropriate mesh rosin to the test solution and stirring, and then injecting the test liquid into the tested workpiece through a hydraulic pump for circulation. The pressure difference detection and flow detection are carried out at the inlet and outlet of the test target. And automatically record the data and generate curves and reports. Auto Parts Test Equipment

Standard:

ISO 4020-2001 Road vehicles -Fuel filters for diesel engines -Test methods.

GB/T 5923.6-2010 clause 6.6.

Test Object:

Automotive diesel engine fuel filter filter element. Auto Parts Test Equipment

Filter Under Test:
A.Spin-on filters that do not include a filter seat (which may or may not have a filter element bypass valve) are included in the replaceable assembly.
B.The replaceable assembly includes a filter seat and a spin-on filter with a filter element bypass valve. Auto Parts Test Equipment
C.Other filters, usually replaceable filters, often come with their own filter seat.

Parameters:
