Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0037 |
|
Detail Information |
|||
| Temperature Range: | -20℃，-40℃，-70℃～+150℃ | Humidity Range: | 20%～98%RH |
|---|---|---|---|
| Temperature Fluctuation: | ±0.5℃ | Temperature Deviation: | ±2℃ |
| Internal Material: | SUS304 Stainless Steel | Outer Box Material: | A3 Cold-rolled Plate |
| Highlight: | SUS304 Auto Parts Test Equipment,Three Comprehensive Auto Parts Test Equipment |
||
Product Description

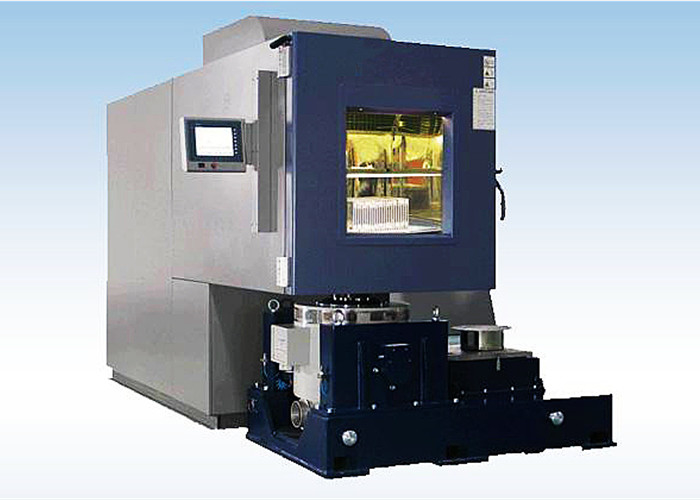

Temperature / Humidity / Vibration Three Comprehensive Environment Test Chamber Auto Parts Test Equipment
Products Introduction:
Temperature / humidity / vibration three comprehensive environmental test box meets the corresponding three comprehensive test requirements of temperature, humidity and vibration.Widely used in aviation, aerospace and space ship, electrician, electronics, communications and other fields.Auto Parts Test Equipment
Meet the standards:
GB/2423.10-1955 vibrations (sine);
GB/2423.1-1999 Low-temperature test method;
GB / 10589 Technical conditions of humid and heat test chamber;
GB / 10592 Technical conditions of high and low temperature test chamber;
GB/2323.2-1989 High temperature test method;
GB/T2423.4-1993 Alternating humid heat test method.Auto Parts Test Equipment
Main technical indicators:
| Model | AM0037-D408 | AM0037-D1000 | |
| Studio Volume (L) | 408 | 1000 | |
| Studio Volume (W * D * H) | 700×750×800 | 1000×1000×1000 | |
| function | Temperature range | -20℃,-40℃,-70℃～+150℃ | |
| Humidity range | 20%～98%RH | ||
| Temperature fluctuation | ±0.5℃ | ||
| Temperature deviation | ±2℃ Auto Parts Test Equipment | ||
| Humidity deviation | When humidity is≤ 75%RH: ± 3%RH; when humidity is> 75%RH: ± 5%RH; | ||
| temperature increasing and decreasing rate | 5℃ / Min or 10℃ / Min (-55℃ ~ + 80℃) (Can be customized according to user requirements) | ||
| Temperature modulation and wet adjustment method | BT (H) balanced temperature adjustment (humidity adjustment) mode | ||
| Material quality | Internal material | SUS304 stainless steel | |
| Outer box material | A3 cold-rolled plate | ||
| Heat insulation material | Rigid polyurethane foam plastics | ||
| Refrigerator | German Bizer semi-closed compressor or German Bock Semi-sealed compressor) | ||
| cooling-down method | water-cooled | ||
| Heater | High-quality nickel-chromium alloy heater | ||
| Humidifier | Apply the external humidification mode | ||
| Blower | Centrifugal blower Auto Parts Test Equipment | ||
| Temperature sensor | PT-100 platinum resistor | ||
| controller | Touch-screen programmable controller | ||
| platform vibrator | Optional selection according to user requirements | ||
| standard layout | Observe window, cable hole, sample rack (2 sets), lighting lamp | ||
| Safety device | Leakage protection, super temperature protection, water shortage protection, fan overload protection, compressor oil shortage, overpressure, broken circuit, overload protection, etc | ||
