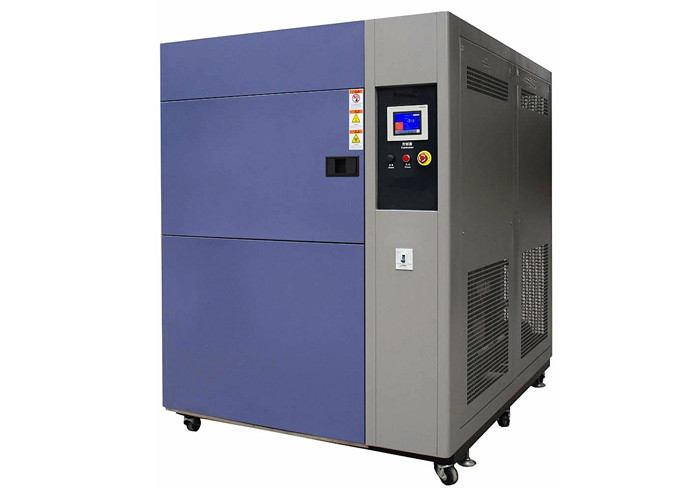

PT100 Auto Parts Test Equipment IEC60068 Three Box Cold And Hot Impact Tester

Minimum Order Quantity :	1 set	Price :	Negotiable
Packaging Details :	Plywood	Delivery Time :	40 days
Payment Terms :	L/C, T/T	Supply Ability :	10 set /month

Place of Origin:	China	Brand Name:	HeJin
Certification:	Calibration Certificate(cost additional)	Model Number:	AM0036

Detail Information
Heat Storage:	+50℃～+180℃	Impact Reinstatement Time:	About 5min
High And Low Temperature Impact:	30min More Than	High Temperature Setting:	+60℃ ～ +150℃
Low Temperature Setting:	-65℃ ～ -10℃	Temperature Fluctuation In The Sample Zone:	± 0.5℃ (at Constant Temperature)
Temperature Deviation:	± 2℃ (no-load, At Constant State)	Temperature Sensor:	High-precision Class A PT100
Highlight:	PT100 Auto Parts Test Equipment , Three Box Auto Parts Test Equipment

Product Description

hree-Box Cold And Hot Impact Tester Auto Parts Test Equipment IEC60068

Products Introduction:

The hot and cold impact test machine is to test whether the product has a bad impact due to the rapid changes of high and low temperature without moving the items to be tested. It is a necessary test equipment for metal, plastic, rubber, electrical and electronics, auto parts and other material industry.Auto Parts Test Equipment

Meet the standards:

GJB 150.4-1986 low temperature test;Auto Parts Test Equipment

GJB 150.3-1986 high temperature test;
GJB 150.5-1986 temperature impact test;
GB / T 5170.2-1996 temperature test equipment;

GB / T 2423.1-2001(IEC60068-2-1:1990) test A: Low temperature test method;
GB / T 2423.2-2001(IEC60068-2-2:1974) test B: High temperature test method;
GB / T 2423.22-2002 (IEC60068-2-14:1984) test N: Temperature change test method test Na.

Three-box hot and cold impact technical indicators:

Model	AM0036-LC64	AM0036-LC100	AM0036-LC150	AM0036-LC200
Inner box size mm (W * H * D)	400×400×400	500×450×450	600×500×500	650×460×670
Outline dimension mm (W * H * D)	1440×1910×1825	1520×1990×2050	1620×2040×2100	1620×1980×2140
Temperature impact range	A:-40～+150℃, B:-55～+150℃, C:-65～+150℃
Cold storage temperature range in the low temperature area	-10℃～-50℃； -10℃～-65℃； -10℃～-75℃
Heat storage temperature range in the high temperature area	+50℃～+180℃
Impact reinstatement time	About 5min
High and low temperature impact constant temperature time	30min more than
High temperature setting	+60℃ ～ +150℃
Low temperature setting	-65℃ ～ -10℃
Temperature fluctuation in the sample zone	± 0.5℃ (at constant temperature)
Temperature accuracy range	Set accuracy: ± 0.1℃, indicating accuracy: ± 0.1℃, resolution: ± 0.1℃
Temperature deviation	± 2℃ (no-load, at constant state)
Temperature sensor	High-precision Class A PT100
Cryogen	R404a,R23 Auto Parts Test Equipment
Box structure	With an independent product test area, high temperature heat storage area, low temperature cold storage area
Internal box material	SUS304 stainless steel plate
Outer box material	Cold tie plate baking paint
Insulation material	Hard polyurethane foam + insulation cotton
Round-robin mode	Multi-blade fan
Heater	Nickel-branded alloy electric heater
condensator	Shell-tube-type condenser (water-cooled type)
Evaporator	High performance fin type automatic load capacity adjustment, long-term use of low temperature and high humidity conditions without frosting
Controller	The 7-inch color LCD touch control screen + PLC module
Program capacity	Available program capacity: maximum 120 groups; each section time setting: 99 hours 59 points; Auto Parts Test Equipment
Service rating	About 9~30KW (auto-on heating and cooling based on PID operation)
Supply source	380V ± 10%V; 50Hz; three-phase four-wire + grounding wire, protective grounding resistance is less than 4 Ω
Safety device	Ultra-temperature protection, motor overload protection, compressor high voltage protection switch, compressor overheat protection switch, compressor overcurrent protection, overvoltage underphase phase protection switch, leakage circuit breaker, cooling water abnormal protection.
