Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0035 |
|
Detail Information |
|||
| Heat Storage Temperature Range In: | +50℃～+180℃ | Impact Reinstatement Time: | About 5min |
|---|---|---|---|
| High And Low Temperature Impact: | More Than 30min | Nacelle Conversion Time: | ≤8S |
| High Temperature Setting: | +60℃ ～ +150℃ | Low Temperature Setting: | -65℃ ～ -10℃ |
| Cryogen: | R404a，R23 | Internal Box Material: | SUS304 Stainless Steel Plate |
| Running Power: | About 9~30KW | Supply Source: | 380V ± 10%V; 50Hz |
| Highlight: | IEC 60068 Auto Parts Test Equipment,R404a Auto Parts Test Equipment,Two Box Cold Hot Impact Tester |
||
Product Description

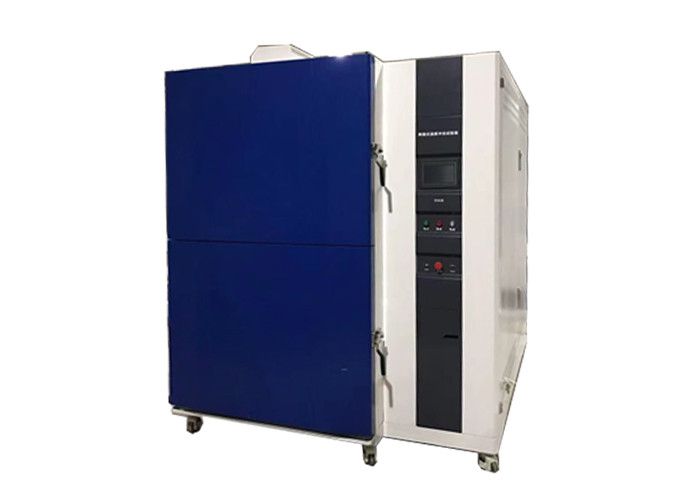

Two-Box Cold And Hot Impact Tester Auto Parts Test Equipment IEC60068
Products Introduction:
The hot and cold impact test machine is to test whether the product has a bad impact due to the rapid changes of high and low temperature without moving the items to be tested. It is a necessary test equipment for metal, plastic, rubber, electrical and electronics, auto parts and other material industry.Auto Parts Test Equipment
Meet the standards
GJB 150.4-1986 low-temperature test;
GJB 150.3-1986 high-temperature test;
GJB 150.5-1986 temperature impact test;Auto Parts Test Equipment
GB / T 5170.2-1996 temperature test equipment;
GB / T 2423.1-2001(IEC60068-2-1:1990) test A: Low temperature test method;
GB / T 2423.2-2001(IEC60068-2-2:1974)test B: High temperature test method;
GB / T 2423.22-2002(IEC60068-2-14:1984)test N: Temperature change test method test Na.
Two boxes of hot and cold impact technical indicators:
| Model | AM0035-LC70 | AM0035-LC100 | AM0035-LC150 | AM0035-LC252 |
| Inner box size mm (W * H * D) | 500×350 ×400 | 500×400×500 | 600×500×500 | 700×600×600 |
| Outline dimension mm (W * H * D) | 1500×1970×1900 | 1500×1740×2300 | 1620×2040×2450 | 1850×2300×2500 |
| Temperature impact range | A:-40～+150℃, B:-55～+150℃, C:-65～+150℃ | |||
| Cold storage temperature range in the low temperature area | -10℃～-50℃； -10℃～-65℃； -10℃～-75℃ | |||
| Heat storage temperature range in the high temperature area | +50℃～+180℃ | |||
| Impact reinstatement time | About 5min | |||
| High and low temperature impact constant temperature time | More than 30min | |||
| Nacelle conversion time | ≤8S Auto Parts Test Equipment | |||
| High temperature setting | +60℃ ～ +150℃ | |||
| Low temperature setting | -65℃ ～ -10℃ | |||
| Temperature fluctuation in the sample zone | ± 0.5℃ (at constant temperature) | |||
| Temperature accuracy range | Set accuracy: ± 0.1℃, indicating accuracy: ± 0.1℃, resolution: ± 0.1℃ | |||
| Temperature deviation | ± 2℃ (no-load, at constant state) | |||
| Temperature sensor | High-precision grade A PT100 temperature | |||
| Cryogen | R404a,R23 | |||
| Internal box material | SUS304 stainless steel plate | |||
| Outer box material | A3 cold rolled steel plate electrostatic spray on both sides | |||
| Heat insulation material | Hard polyurethane foam with insulation cotton | |||
| Round-robin mode | Centrifugal fan Auto Parts Test Equipment | |||
| Heater | Nickel-branded alloy electric heater | |||
| Refrigeration method | Compound refrigeration (using Bizer semi-airtight compressor, Germany) | |||
| Controller | The 7-inch color LCD touch control screen + PLC module | |||
| Cabas | Built-in 2 shelfs | |||
| Running power | About 9~30KW (auto-on heating and cooling based on PID operation) | |||
