Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0028 |
|
Detail Information |
|||
| Test Room: | 50℃± 1℃ | Saturated Air Bucket: | 63℃± 1℃ |
|---|---|---|---|
| Temperature Uniformity: | ±2℃ | Temperature Fluctuation: | ±0.5℃ |
| Salt Fog Settlement: | 1～2ml/80cm2/h | Supply Voltage: | AC220V±10% ,50HZ |
| Highlight: | IEC68-2-52 Auto Parts Test Equipment,80cm2/h Auto Parts Test Equipment |
||
Product Description

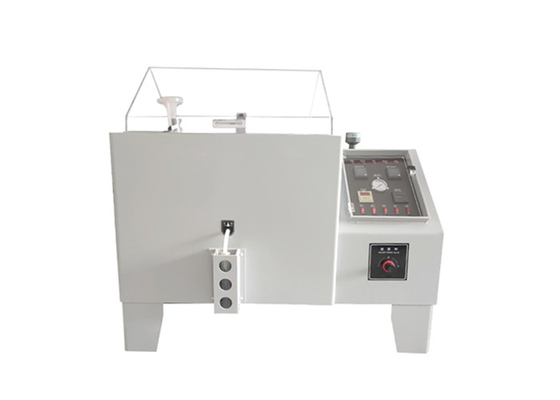

Saline spray tester IEC68-2-11,IEC68-2-52 Auto Parts Test Equipment
Products Introduction:
This machine is used to test the corrosion resistance of the products after the surface treatment of various materials, including coating, electroplating, inorganic and organic skin film, cathodic anti-rust oil and other anti-corrosion treatment.Auto Parts Test Equipment
Meet a criterion:
GB/T 2423.17-1993 ,GB/T 2423.18-2000 ,GB/T 10125-1997 ,ASTM.B117-97,JIS H8502,IEC68-2-11,IEC68-2-52 1996 ,GB.10587-89 ,CNS.4158,CNS.4159, GB / T 12967.3-91, etc.Auto Parts Test Equipment
Parameters:
| Model | AM0025-Y60 | AM0025-Y90 | AM0025-Y120 | AM0025-Y160 |
| Inside box size mm | 600×400×450 | 900×600×500 | 1200×1000×500 | 1600×1000×500 |
| Outer box size mm | 1070×600×1180 | 1410×880×1280 | 1900×1300×1400 | 2300×1300×1400 |
| Thermostatical control | Saline spray test for NSS; ACSS | Test room: 35℃± 1℃ Auto Parts Test Equipment | ||
| Saturated air bucket: 47℃± 1℃ | ||||
|
Corrosion resistance test NSS; CASS
|
Test room: 50℃± 1℃ | |||
| Saturated air bucket: 63℃± 1℃ | ||||
| Temperature uniformity | ±2℃ | |||
| Temperature fluctuation | ±0.5℃ | |||
| Salt fog settlement | 1～2ml/80cm2/h | |||
| Spray method | Continuous, optional cycle | |||
| Spray system | Tower spray device supplemented with crystal-free spray | |||
| Seal | Use water seal with no salt spray overflow | |||
| Testing time | 1~9990 (hours, minutes, seconds) Adjustable | |||
| Supply voltage | AC220V±10% ,50HZ | |||
| Water adding system | Use water supplement system, automatically when water level is too low | |||
| Box material | Imported corrosion resistant, aging resistant, high strength PVC plates | |||
| Safety protection device | Automatic cut off the power supply at low water level Auto Parts Test Equipment | |||
| When over-temperature, automatically cut off the power supply device | ||||
| Attach a safety warning lamp device Auto Parts Test Equipment | ||||
