Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0020 |
|
Detail Information |
|||
| Diameter Of Water: | φ0 .4mm | Spraying Water Diameter: | 20mm |
|---|---|---|---|
| Turntable Load: | 20kg | Rainfall: | 1+0.5mm/Min、3+0.5mm/Min |
| Temperature: | 5℃ ~ 40℃ | Test Bench Rotate Speed: | 1 ~3r/min |
| Highlight: | load 20kg Auto Parts Test Equipment,IPX12 Auto Parts Test Equipment,IPX12 Dripping Test Chamber |
||
Product Description

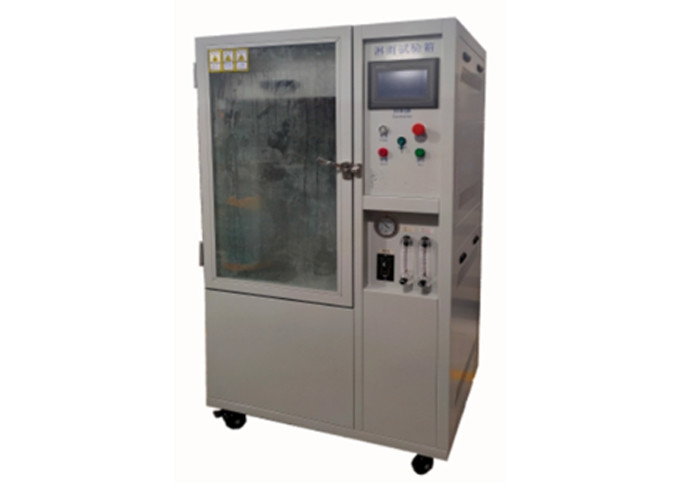

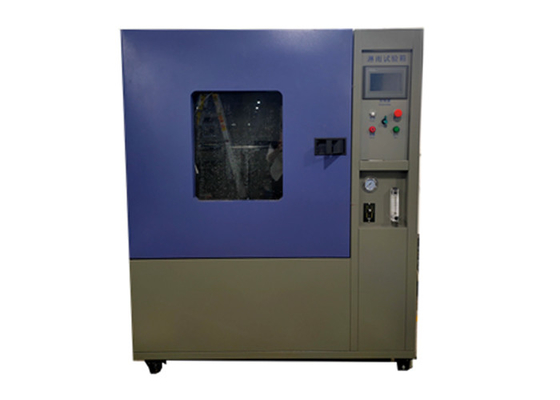

IPX12 dripping test chamber Auto Parts Test Equipment IEC 60529 ISO20653 IEC60068
Products Introduction:
This is used to test whether the housing and seal can guarantee the good performance of the equipment and components in the rain environment.This product simulates water drop, water splashing water and other environments.It is mainly suitable for communication products, automobile parts, outdoor lighting and signal equipment and IP waterproof grade test; and testing products may be affected by water intrusion during transportation or use to provide reliable basis for product technical standards; the whole test process is completed in the box, water will not splash outside, and the water can be recycled.Auto Parts Test Equipment
Meet the standards:
GB4208-2017, IEC 60529:2013, ISO20653:2006, GB2423.38-2005, IEC60068-2-18:2000 etc.Auto Parts Test Equipment
Parameters:
| model | AM0020-IPX12-225 | AM0020-IPX12-500 | AM0020-IPX12-1000 | |
| Internal Box Size W * D * H (mm) | 600×600×600 | 800×800×800 | 1000×1000×1000 | |
| Outer box dimensions W * D * H (mm) | 900×1080×1750 | 900×1280×1750 | 1200×1480×1800 | |
| Dripping Case Size W * D * H (mm) | 400×400 | 600×600 | 800×800 | |
| Turntable diameter (mm) | 300 | 300 | 500 | |
| Turntable load (kg) | 20 | |||
|
Technology Surgery Refers to Standard |
Dripping box is distance from the sample | 200mm | ||
| Diameter of water dripping hole | φ0 .4mm | |||
| Spraying water diameter spacing | 20mm Auto Parts Test Equipment | |||
| Rainfall | 1+0.5mm/Min,3+0.5mm/Min Auto Parts Test Equipment | |||
| Preset test time | 1 S ~ 9999 The H59M59S is arbitrarily adjustable | |||
| Test bench rotate speed | 1 ~3r/min Adjustable (IPX1.2 standard.Can incline turntable to 15 °) | |||
| Internal box material | SUS304 stainless steel | |||
| Outer box material | SUS304 stainless steel or cold tie plate paint | |||
| Control system | An independently developed control system developed by Teelong | |||
| Equipment use conditions | Power supply: 220V; Frequency: 50HZ; power: 3KW | |||
| Ambient condition | Temperature 5℃ to 40℃ relative temperature 85%RH | |||
| Safety protection system | Power overload / short circuit protection, ground protection, water shortage protection, alarm sound warning | |||
