Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0017 |
|
Detail Information |
|||
| Temperature Range: | RT + 10℃ ~60℃ | Airflow Rate: | Not Exceeding 2m/s |
|---|---|---|---|
| Dust Concentration: | 2～4kg/m³ | The Shock Time: | 1S~999H Adjustable |
| Dust Blowing Time: | 1S~999H Adjustable | Pin Hole: | φ50 Mm; Sealant |
| Highlight: | 4kg/M3 Auto Parts Test Equipment,999H Adjustable Auto Parts Test Equipment |
||
Product Description

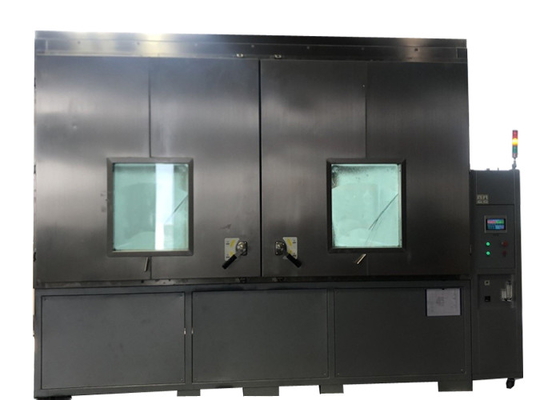

Sand Dust Test Room Auto Parts Test Equipment Dust Concentration 2～4kg/M³
The equipment is suitable to test whether electrical electronics, automobiles, motorcycle parts, shells and seals can guarantee the good performance of the equipment and the original in a large dust environment.To test the use, storage and transportation performance of electronic and electrical products, automobiles, motorcycle parts, and seals in a large dust environment.The purpose of the test was to determine the possible harmful effects of the particles carried by the air flow on the electrical products.The test can be used to simulate open dust-air ambient conditions induced by natural or artificial perturbations, such as vehicle motion.Auto Parts Test Equipment
Meet the standards:
Test requirements of household appliances, low voltage appliances, automobile, motorcycle parts enclosure in GB4208-2017-13.4, IEC60529:2013-134, GBT2423.37-2006-La2, IEC60068-2-68-La2, ISO20653-La2.Auto Parts Test Equipment
The powder circulating pump in the sealing test box can be replaced by other methods of suspending talc powder.Stalc powder was filtered by metal holes.The wire is 50 m in diameter and the sieve size is 75 m.The talc powder is 2kg per cubic meter and shall not exceed 20 times.Maintain uniform suspended dust with sufficient density in the test box.
The test shell is placed in the test box, and the pressure in the shell should be kept with a vacuum pump below the atmospheric pressure, and the air pressure can also be changed to realize the periodic change of the air pressure in the test box.
The purpose of the test is to draw the air in the box into the subject equipment using the pressure difference. The gas pumping volume is 80 times the shell volume of the subject, and the pumping rate shall not exceed 60 times the shell volume per hour.Under any case shall the pressure difference not exceed 2kPa.Auto Parts Test Equipment
The instrument shall have an emergency stop device to ensure the safety in the abnormal test.
Seal the test box cover (door) shall be sealed reliably. It is recommended to adopt conductive materials on the inner wall of the test box, and the grounding shall avoid static accumulation.
Test dust recovery and treatment function shall be required, and all operation functions of the equipment shall meet the requirements of clause 13.4 in standard GB4208-2008.Auto Parts Test Equipment
Main technical indicators:
| model | AM0017 |
| Internal box size | 250050002000mm (wide, depth and height) can be ordered |
| Outer box size | About 305051753075mm (wide, depth and height) |

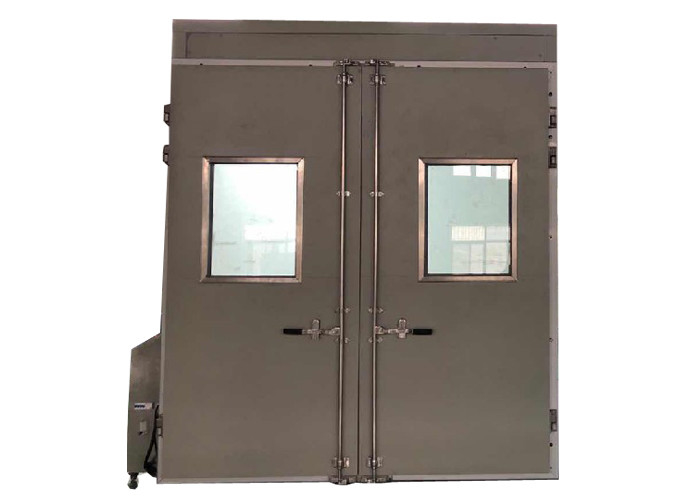

| Entrance door | double door |
|
Temperature range |
RT + 10℃ ~60℃ (heated dust baking system) |
| Humidity in the test box | Normally wet (not monitored) |
| Airflow rate | not exceeding 2m/s |
| Air flow in the test box | Top-down vertical airflow |
| Dust concentration | 2～4kg/m³ |
| Dust rules | Talc powder can be dried through square holes of 75um and wire diameter of 50um |
| The shock time | 1S~999H Adjustable |
| Dust blowing time | 1S~999H Adjustable |
| Dust arefaction | Electric heating dehumidifying |
| Work mode | programming mode |
| Control system | Embedded large-screen LCD touch screen, data storage and printing |
| pin hole | φ50 mm; sealant |
| The bile material in the chamber | Use imported SUS201 mirror stainless steel |
| Material of the chamber | Made of stainless steel |
| AC contactor | Schneider, France |
| Thermal relay | Schneider, France |
| Auxiliary relay | Omron, Japan |
| Solid state relay | Yang Ming, Taiwan |
| Common button | Shanghai red wave stainless steel button |
| Transformer | Chint |
| Safety protection system | Fan overcurrent alarm, power supply phase shortage, phase sequence protection |
| Carry out a temperature and humidity detection system with a display function | |
| Equipment use conditions | Power supply: 380V; frequency: 50HZ; |
| Ambient condition | Temperature: 5℃ ~40; relative temperature: 85%RH |
