Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0048 |
|
Detail Information |
|||
| Model: | AM0048 | Measuring Range: | 1-800kpa |
|---|---|---|---|
| Operating Temperature: | -5-45（℃） | Resolution Rate: | 1pa-200pa |
| Power Supply: | AC220 50H/60H | Dimension: | 330 * 290 * 260 (L*W*H)(mm) |
| Highlight: | 800kpa Auto Parts Test Equipment,Low Pressure Auto Parts Test Equipment |
||
Product Description

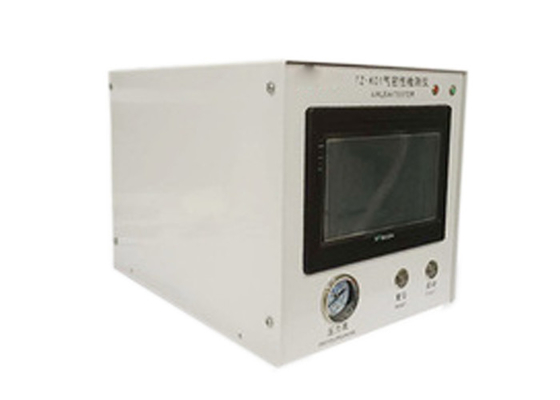

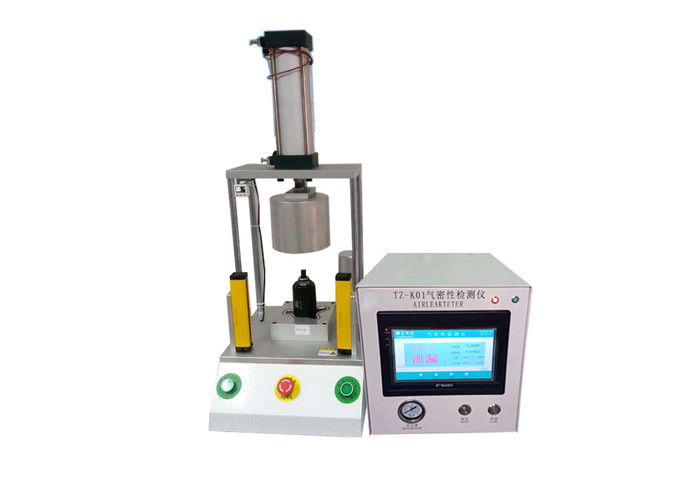

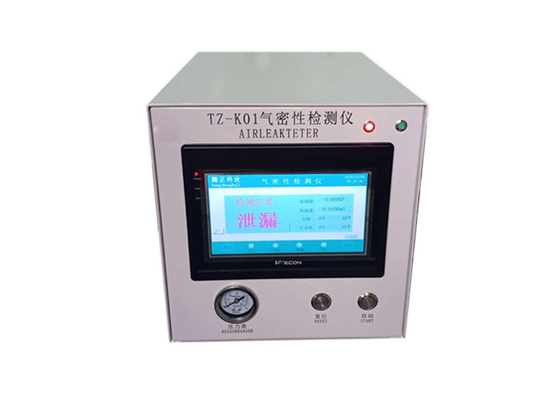

Air tightness detector 1pa-200pa 1-800kpa Auto Parts Test Equipment
Products Introduction:Auto Parts Test Equipment
Instrument belongs to a type of key operation, set up the test parameters to press the start button after the instrument is up and running, automatic monitoring of product testing, testing process can be real-time monitoring on the instrument interface testing, testing after the completion of the indicator light for "OK" or "NG" will light up lights, test results show that on the home page, and automatic data storage, Facilitate historical query of product test results.
The solenoid valve cylinder, external switch, model indicator and other functions can be controlled by connecting the external output or input signal terminal.Auto Parts Test Equipment
Parameters:Auto Parts Test Equipment
| Model(AM0048) | Low pressure type | Medium pressure type | High pressure type | Other range should be customized | |
| Test pressure range | 500pa~100Kpa | 100Kpa~800Kpa | Over 800Kpa |
Below 3 MPA |
|
| Pressure sensor range | 4Kpa~100Kpa | 100Kpa~800Kpa | Over 800Kpa | ||
| Resolution:1-25pa | Resolution:25-200pa | Resolution:over 200pa | |||
| Precision | 0.20% | 0.20% | 0.20% | ||
| Detect patterns | Positive pressure test | Positive pressure test | Positive pressure test | ||
| The test channel number | 1 group | ||||
| The test interface | Single road test | ||||
| Air connector | Connect 6mm diameter (or 8mm hose) | ||||
| 10 interfaces | 2 input signal and 5 output signal | ||||
| Display | 7 inch touch screen display | ||||
| Curve | Curve from inflation to exhaust | ||||
| Time | Project name | The minimum value(s) | The maximum value(H) | ||
| Inflation/Inspiration | 0.1 | 999.9 | |||
| Pressure maintaining | 0.1 | 999.9 | |||
| Dimension | 330 length * 290 width * 260 height (mm) | ||||
| Weight | About 5 kg | ||||
| Supply power | AC220V ,±10%, 50/60 HZ, consumption of electricity: 35 W | ||||
| Test gas source | The use of large flow, high pressure cleaning air source, the stability of the connection was adjusted by pressure regulating valve air pressure source. | ||||
| The environment temperature/Humidity | Use temperature is 5 ~ 40 ℃, preservation temperature is 20 - 50 ℃. HR below 80%, but no condensation. | ||||
| Built-in standard configuration (alternative) | The outer order Auto Parts Test Equipment | ||||
| U disk export interface | 4GB,8GB U disk | ||||
| Leaking unit pa | External starting reset | ||||
| Test pressure unit kpa | Clamps for open products and fully sealed products | ||||
| Note: |
1, hard container classes, it is suggested that using negative pressure detection more accurate. 2, soft kind of container, using inflatable, positive pressure test method. 3, positive pressure test note: the pressure regulating valve first transferred to the minimum, then slowly turned big pressure regulating valve, detection of gas pressure can not exceed range required by the leak detector |
||||
