Detail Information |
|||
| Product Name: | IPX8 Pressure Immersion Test Device | Test Sample: | Vehicles/auto Parts |
|---|---|---|---|
| Inner Size: | φ500 X H500mm | Test Time: | 0-999mim |
| Range Of Test Pressure: | 0-0.5Mpa | Range Of Test Depth: | 0-50m |
| Pressure Control Mode: | Automatic Control By Pressure Sensor | Wall Thickness: | 4mm |
| Highlight: | IPX8 Pressure Immersion Test Device,4mm Thickness Immersion Test Device,4mm IPX8 Pressure Immersion Test |
||
Product Description

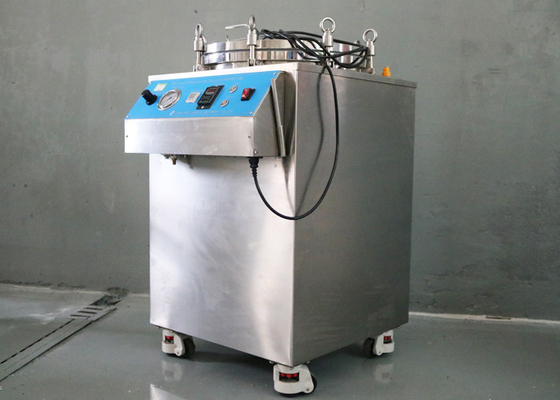

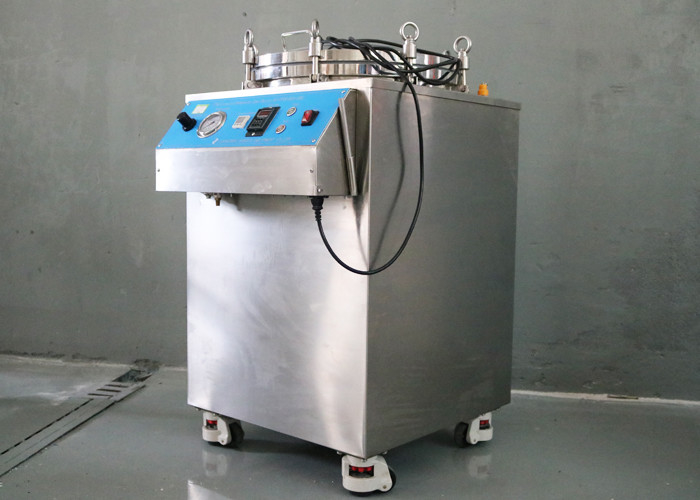

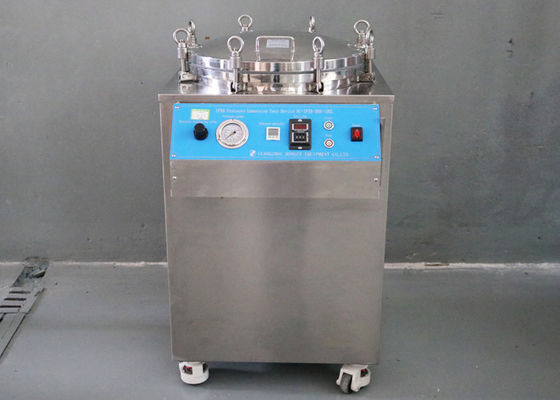

Vehicle Test Equipment IPX8 Pressure Immersion Test Device 500mm Diameter
Standard:
IEC60529 degree of protection provided by enclosures (IP Code) of the IP8;
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access Degrees of protection against water Second code element 8;
Brief description:
Continuous immersion in water: Water shall not penetrate in a quantity causing harmful effects if the enclosure is continuously immersed in water under conditions which shall be agreed between supplier and car manufacturer, but which are more severe than code 7.
Application:
It is used to assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test. Auto Parts Test Equipment
Parameter:
| Model | HC-IPX8-50A-100L |
| Inner size | φ500 x H500mm |
| Wall thickness | 4mm |
| Flange thickness | 25mm |
| Range of test depth | 0-50m |
| Range of test pressure | 0-0.5Mpa |
| Vent pressure of safety valve | 0.55Mpa |
| Maximum ultimate pressure | 0.6Mpa |
| Pressure control mode | Automatic control by pressure sensor |
| Display accuracy for pressure sensor | 0.001Mpa |
| Error range for pressure sensor | ± 0.002Mpa |
| Test time | 0-999mim. Auto Parts Test Equipment |
| Power | AC220V, 50Hz, 100w (customizable) |
| Protector | Leakage protection, short circuit protection, water shortage protection |
Immersion depth and air pressure:
| Depth(m) | Corresponding pressure (Mpa) |
| 1.00 | 0.01 |
| 1.50 | 0.015 |
| 4.00 | 0.04 |
| 6.00 | 0.06 |
| 10.00 | 0.1 |
| 15.00 | 0.15 |
| 25.00 | 0.25 |
| 30.00 | 0.3 |
| 35.00 | 0.35 |
| 40.00 | 0.4 |
| 45.00 | 0.45 |
| 50.00 | 0.50 |
