Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 5 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HH0816A |
|
Detail Information |
|||
| Product Name: | IPX1 To IPX4 Waterproof Tests Chamber | Standard: | ISO20653, DIN40050-9, IEC60529 |
|---|---|---|---|
| Inner Chamber: | 1000mm*1000mm*1000mm | Turntable Diameter: | 400mm |
| Dripping Area: | 800*800mm | Swivel Tube: | R200, R400 |
| Needle Hole: | Diameter 0.4mm | Spray Pressure: | 80-150Kpa |
| Highlight: | IPX4 Waterproof Test Equipment,IPX1 Waterproof Test Equipment,ISO20653 Waterproof Test Equipment |
||
Product Description

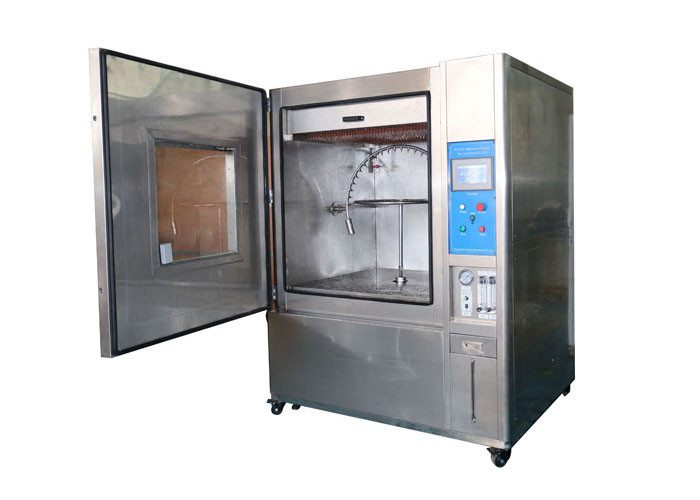

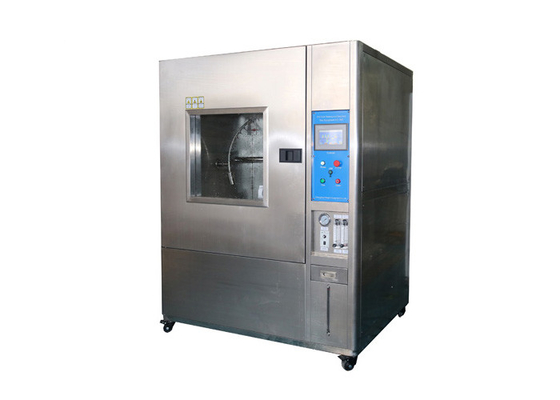

Auto Parts Test Equipment Waterproof Tests Chamber For IPX1 To IPX4
Standard:
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1, IPX2, IPX3, IPX4;
DIN40050-9 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects),protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water);
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, figure 3- Test set-up for determining the protection against vertical water drips (drip apparatus); degrees of protection against water 1 and 2, figure 4 - Test set-up for determining the protection against splash water and water spray (swivel tube); degrees of protection against water 3, 4 and 4K, figure 5 - Manual test set-up for determining the protection against splash water and water spray (shower tube); degrees of protection against water 3 and 4;
Application:
Waterproof test system for Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against water.
The waterproof test chamber is mainly suitable for communication products, auto parts (such as car rearview mirrors, car audio, car electronics, car lighting, car lamps, motorcycle lamps, motorcycle rearview mirrors), outdoor lighting and signal devices and other products. Waterproof performance test and IP waterproof level test. Auto Parts Test Equipment
Parameter:
| Inner Chamber | 1000mm*1000mm*1000mm |
| Outer Chamber | 1500mm*1400mm*1900mm |
| Rotating speed(rpm) | 1 ~5 adjustable |
| Turntable Diameter | 400 mm |
| Turntable Height | 200 mm, it is adjustable |
| Dripping hole | 0.4 mm |
| IPX1,IPX2 Drip speed (water flow) | 1 +0.5 0mm/min(IPX1), 3 +0.5 0mm/min(IPX2) |
| Dripping area | 800X800 mm |
| Height | 120 mm. Auto Parts Test Equipment |

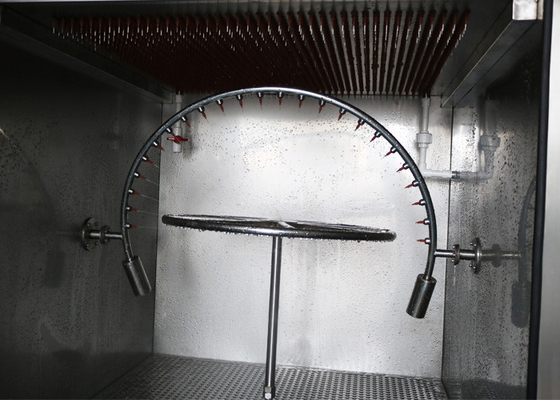

| Rain Oscillation Tube | R200,R400 |
| Swing angle range of the oscillating tube | ±60°,±180°(Connect) |
| Needle hole | φ0 .4 mm |
| Swing speed | IPX3 15times/min; IPX4 5times/min |
| Distance between holes | 50 mm |
| Water flow of each hole | 0.07 L/min +5% |
| Spray pressure | 80-150Kpa |
| Pendulum swing | Max.±150° |
|
Nozzle holes |
121 holes of Ф0.5mm 1 hole at the centre 1 inner circles of 12 holes at 30° pitch 4 outer circles of 24 holes at 15° pitch |
