300sets/10h Clam-Shell Hydrogen Nitrogen Leak Testing Equipment

Place of Origin:	China	Brand Name:	HeJin
Certification:	Third party calibration certificate(cost additional)

Detail Information
Test Sample:	Refrigeration Pipeline, Refrigeration Components	Test Station:	2 Stations
Control Mode:	PLC Control	Detection Method:	Clam-shell Method
Gas For Fine Leak Detection:	Hydrogen & Nitrogen	Gas Pressure For Fine Leak Detection:	250 Psi
Gas Pressure For Gross Leak Detection:	450 Psi	Gas For Gross Detection:	Nitrogen
Alarm Leak Rate:	1x10-6 Pa. M³/s	Test Cycle:	300 Sets / 10 Hours
Highlight:	300sets/10h Hydrogen Nitrogen Leak Testing , 300sets/10h Leak Testing Equipment , Clam-Shell Hydrogen Nitrogen Testing Equipment

Product Description

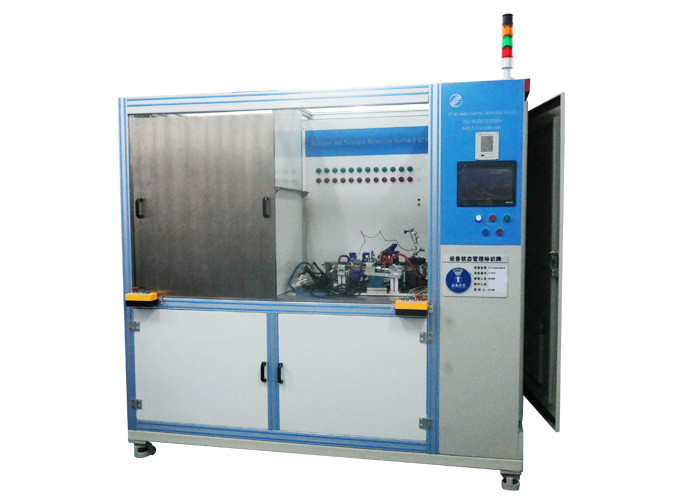

Leak Testing Equipment Clam-Shell Hydrogen And Nitrogen Leak Detection System

Overview:

This protocol describes a clam-shell hydrogen and nitrogen leak detection system for piping leak detection. This test system consists of:

(1) One hose

(2) One test bench with two test stations

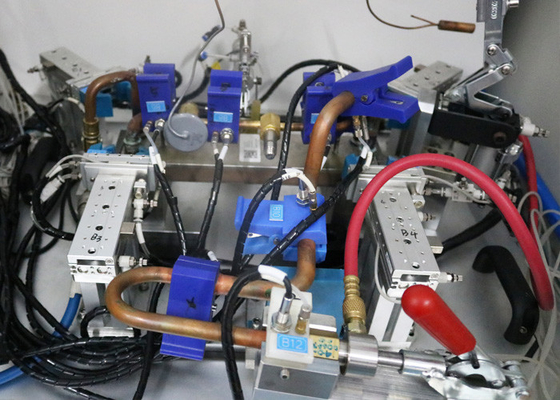

(3) Fixtures for two kinds of workpiece. Leak Testing Equipment

Technical Parameter:

Test Workpiece	Refrigeration pipeline, refrigeration components
Detection Method	Clam-shell method. The test system has 2 test modes for option: 1. The entire workpiece is detected together, no need to find the leak point. 2. Each weld of the workpiece is detected in turn, and the leak point is known.
Detectable leak rate of leak detector	1x10-7 Pa. m³/s
Alarm leak rate	1x10-6 Pa. m³/s
Gas for gross detection	Nitrogen Leak Testing Equipment
Gas pressure for gross leak detection	450 psi (downward adjustable)
Gas for fine leak detection	Hydrogen & Nitrogen
Gas pressure for fine leak detection	250 psi (downward adjustable)

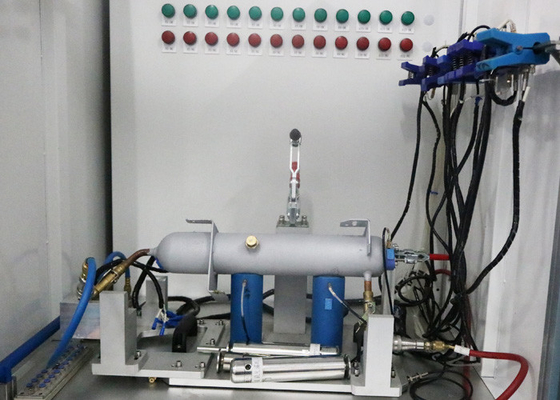

Test bench	1 test bench with 2 test stations, each test station can test 1 workpiece
Quantity of fixtures	One set for each workpiece, total 2 sets
Workpiece loading & unloading	Manually
Test cycle	300 sets / 10 hours
