Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 5 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HJAP06 |
|
Detail Information |
|||
| Product Name: | Mechanical Shock Test Machine For Auto Parts Accessories | Shock Table Size: | 40 X 40 (customizable) |
|---|---|---|---|
| Max. Specimen Weight(kg): | 30 | Half Sine Max. Acceleration (G): | 600 |
| Saw-tooth Max. Acceleration (G): | 100 | Half Sine Pulse Duration (ms): | 300.5 |
| Saw-tooth Pulse Duration (ms): | 186 | Standard: | IEC 60068-2-27, ISO 16750-3, ISO 12405 |
| Highlight: | AC380V Mechanical Shock Test Machine 60Hz,60Hz Auto Parts Test Equipment,AC380V Auto Parts Test Equipment |
||
Product Description

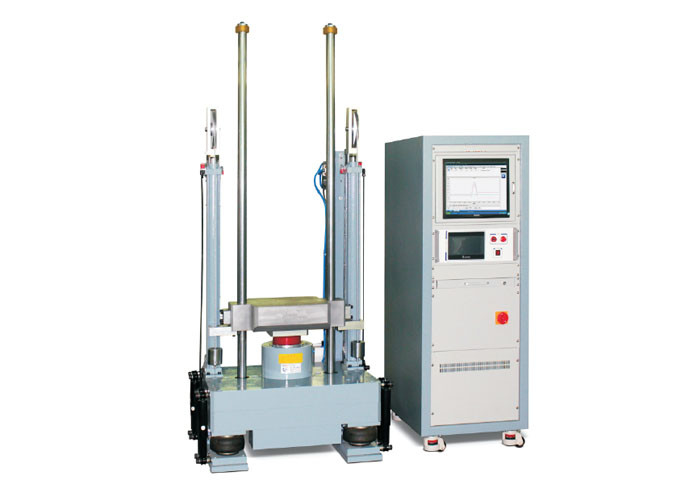

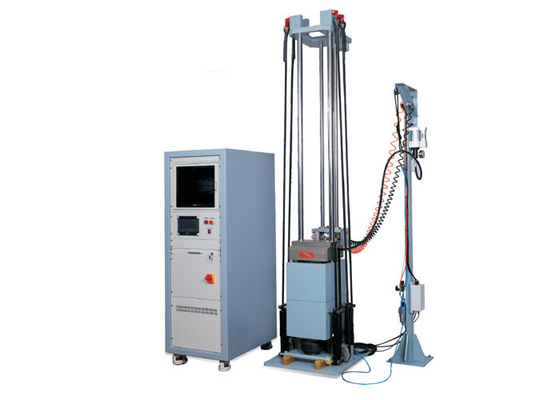

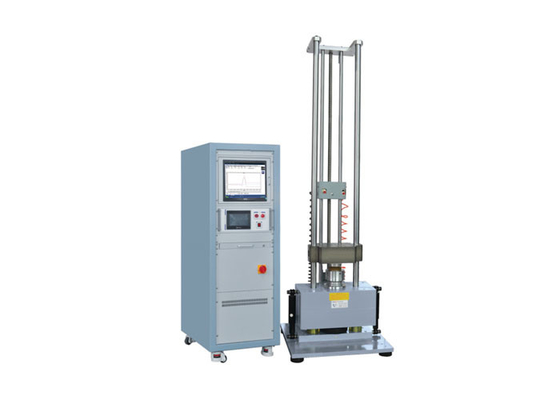

Auto Parts Test Equipment Mechanical Shock Test Machine For Auto Parts Accessories
Standard:
This part of ISO 12405 specifies test procedures for lithium-ion battery packs and systems for use in electrically propelled road vehicles;
ISO 16750-3 Road vehicles — Environmental conditions and testing for electrical and electronic equipment — Part 3: Mechanical loads;
IEC 60068-2-27 Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock
Application:
Shock test is used to accurately measure the product fragility and evaluate the protective ability of the product packaging.
It is suitable shock test for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.
Mechanical shock test is applicable to packs and systems intended to be mounted at rigid points of the body or on the frame of a vehicle.
The load occurs, for example when driving over a curb stone at high speed. Failure mode is a mechanical damage of components due to the resulting high accelerations.
This test applies to battery packs and systems.
Auto Parts Test Equipment
Feature:
By selecting different waveform generator, can perform half sinusoidal wave, sawtooth wave and trapezoidal wave.
Convenient touch screen operation.
Complete safety protection system.
Utilize pneumatically/hydraulically combined booster and braking system to prevent multiple impact.
With air spring shock absorber and hydraulic shock damping mechanism, there will be no impact on the surrounding and no foundation required.
Parameter:
| Model | 30 | 50 | 100 | 200 | |
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | |
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | |
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 |
| Saw-tooth | 100 | 100 | 100 | 100 | |
| Square | 150 | 150 | 150 | ||
|
Pulse duration (ms) |
Half Sine | 300.5 | 301 | 301 | 302 |
| Saw-tooth | 186 | 186 | 186 | 186 | |
| Square | 306 | 306 | 306 | ||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | |
| Controller cabinet dimension(cm) | W55*D50*H80. Auto Parts Test Equipment | ||||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.50.8MPa | ||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||
