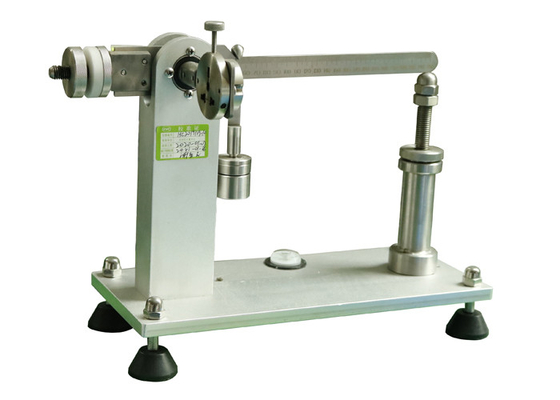

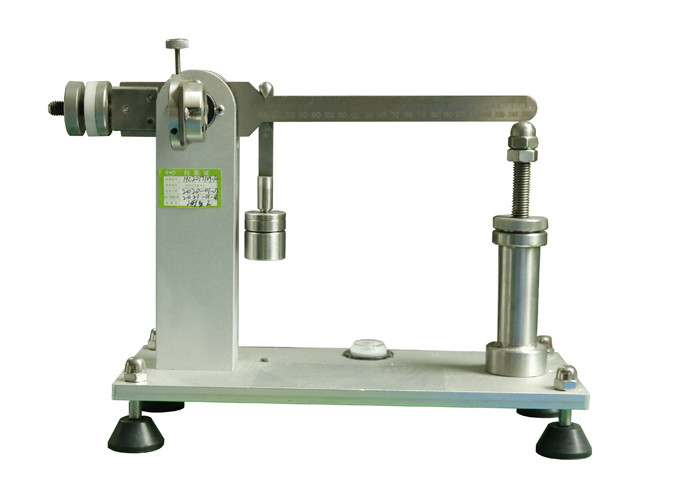

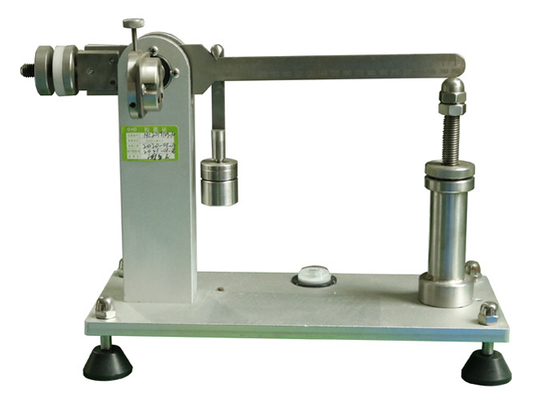

IEC 60065 2.5N Plug Insert Torque Balance Tester

Product Description

Plug Socket Test Equipment Plug Insert Torque Balance fixed socket-outlet, plug-in equipment

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 14.23.2,

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 22.3,

IEC 60065 ‘Audio, video and similar electronic apparatus - Safety requirements ’clause 15.4.1 and figure 11

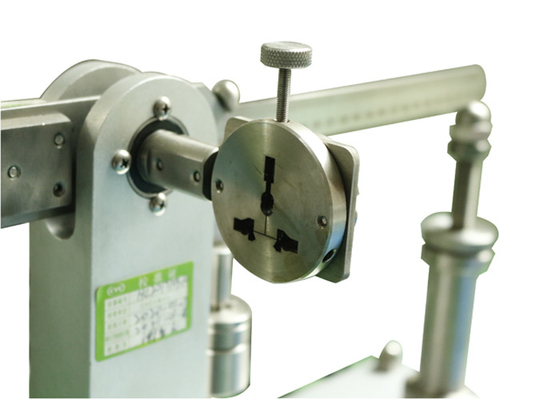

The equipment is inserted into a fixed socket-outlet complying with this standard, the socket-outlet is pivoted about a horizontal axis through the axis of the live socket-contacts at a distance of 8 mm behind the engagement face of the socket-outlet and parallel to this engagement face.

The additional torque which has to be applied to the socket-outlet in order to maintain the engagement face in the vertical plane shall not exceed 0.25 Nm.

Application:

This device is use to test the strain force of insertion. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets. Plug Socket Test Equipment

Test sample:

fixed socket-outlet, plug-in equipment.

Feature:

According to the standard, measuring the torque force of the plug introduce into the socket.

Parameters:
