Detail Information |
|||
| Product Name: | Integrated Door Endurance Tester For Small Appliance HJ0636A | Control System: | PLC Programmable Control |
|---|---|---|---|
| Test Stations: | 2 Stations | Driving Mode: | Servo Motor |
| Test Times: | 0～999999 Times | Door Open /close Angle: | 0-130°，can Be Preset |
| Standard: | IEC 60335-2-11, IEC 60335-2-6, IEC 60335-2-24 | Function: | Household Appliance Test Equipment |
| Highlight: | Integrated Door Endurance Tester,Servo Motor Door Endurance Tester,IEC 60335-2-11 Integrated Door Endurance Tester |
||
Product Description
Household Appliance Test Equipment Integrated Door Endurance Tester For Small Appliance
Standard:
IEC 60335-2-11 ‘Household and similar electrical appliances – Safety – Part 2-11: Particular requirements for tumble dryers’clause 20.101
IEC 60335-2-6 ‘Household and similar electrical appliances – Safety – Part 2-6: Particular requirements for stationary cooking ranges,hobs,ovens and similar appliances’clause 22.108
IEC 60335-2-24 ‘Household and similar electrical appliances – Safety – Part 2-24: Particular requirements for refrigerating appliances,ice-cream appliances and ice-makers’clause 22.112
Product information:

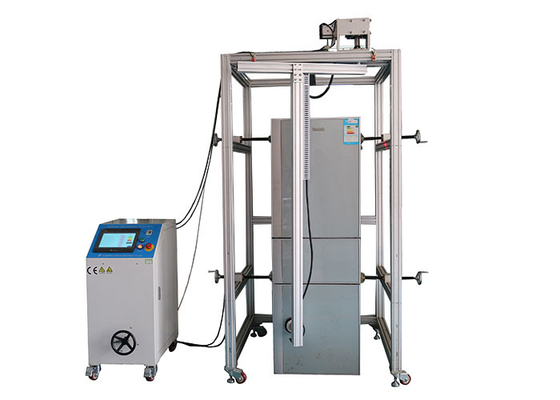

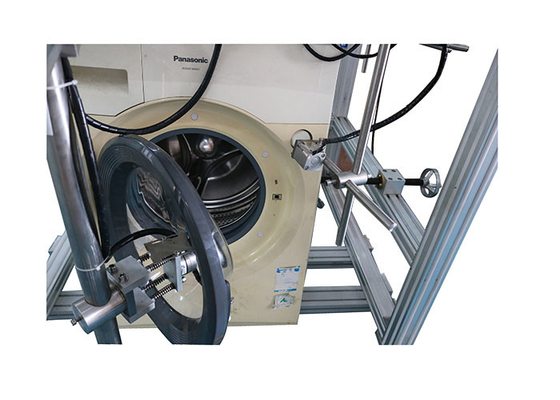

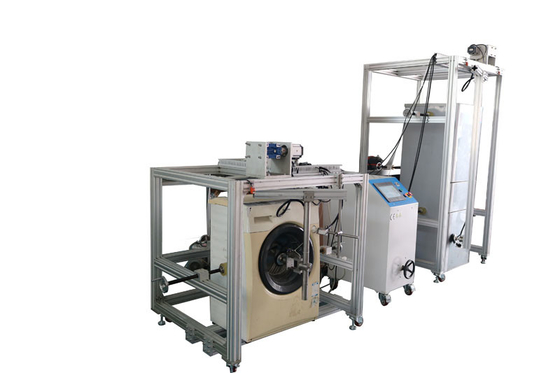

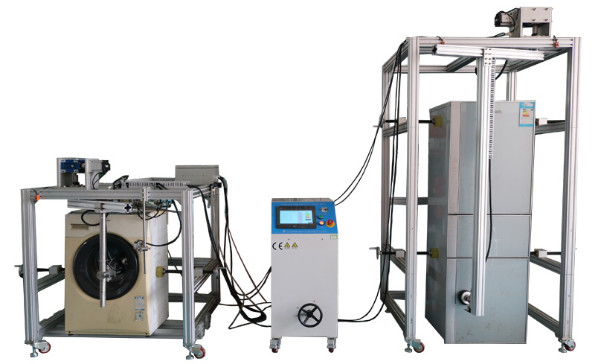

The integrated door endurance tester is special designed and manufactured as per IEC 60335-2-11 clause 20.101, IEC 60335-2-6 clause 22.108, IEC 60335-2-24 clause 22.112. Suitable for tumble washing machine / dryer door, pyrolytic self-cleaning ovens door, refrigerator door test. It is a special equipment for durability and structural testing of small appliance doors.
The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, on current detection, load voltage regulation and display, test speed, test stroke, open / close door pull force setting, pull force transient curve display, test data storage and query, fault alarm and other functions, can be analyzed by the data record whether the test sample is qualified or not. The whole machine is divided into tumble washing machine/dryer, pyrolytic self-cleaning oven test station, refrigerator test station, and beautiful appearance; stable performance and convenient operation. It is the first choice for large metrology institutions and laboratories.
Technical parameters:
| NO. | Item | Parameters |
| 1 | Power supply | AC230V±10%/50-60Hz (Household Appliance Test Equipment) |
| 2 | Test stations | 2 stations, tumble washing machine/dryer, pyrolytic self-cleaning oven test station, refrigerator test station |
| 3 | Operation interface | 10-inch color LCD touch screen |
| 4 | Driving mode | Servo motor |
| 5 | Control system | PLC programmable control |
| 6 | Test times |
0～999999 times, can be preset and displayed |
| 7 | Door open /close angle | 0-130°,can be preset |
| 8 | Door open /close speed | 0-360°/s, can be preset |
| 9 | Test project |
1. washing machine door interlocks test 2. washing machine door endurance test 3. washing machine door structure test 4. oven door endurance test 5. refrigerator door endurance test 6. refrigerator open door test |
| 10 | Test environment | Atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; use place: no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation |
