ADL-1 Household LED Bulb Aging Test Equipment Intelligent Temperature Control High Efficiency and Durability Household Appliance Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HJ0637 |
|
Detail Information |
|||
| Product Name: | Microwave Oven Door Endurance Tester | Test Sample: | Microwave Oven, Oven |
|---|---|---|---|
| Control: | PLC | Display: | 7 Inch Touch Screen |
| Test Times: | 0-999999 Preset | Open Angle: | 0-180°preset |
| Open/Close Rate: | Adjustable | Station: | One Station |
| Highlight: | Microwave Oven Door Endurance Tester,Vacuum Chuck Oven Door Endurance Tester,7 Inch Screen Door Endurance Tester |
||
Product Description

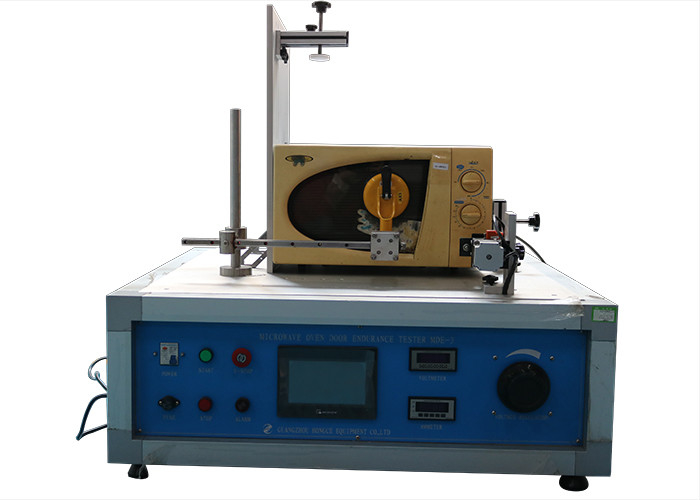

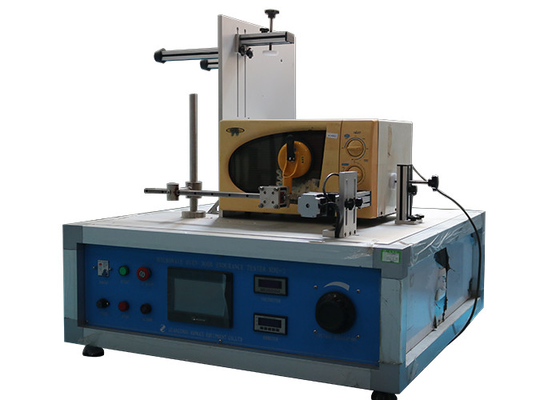

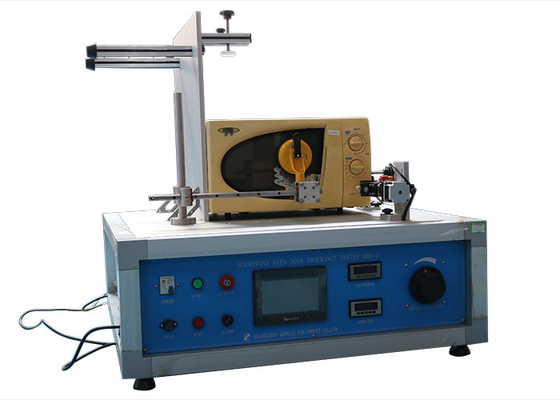

Household Appliance Test Equipment Microwave Oven Door Endurance Tester With Vacuum Chuck
Standard:
IEC 60335-2-25‘household and similar electrical appliances – safety: part 2-25:particular requirements for microwave ovens, including combination microwave ovens’ clause 18.
Application:
The device is used for mechanical endurance test to microwave oven door system includes a hinge structure, microwave seals and other related components.Household Appliance Test Equipment.
Test sample:
Microwave oven, oven
Feature:
The equipment adopts PLC and stepper motor control, with all stainless steel mechanical hand, vacuum suction structure, standard TFT true color LCD touch screen, can preset test angle and speed, simulated a human hand to open and close the door of microwave ovens and similar equipment, achieve intelligent control. The machine frame is made of high grade aluminum alloy profile, and the mechanical arm is installed on the support of the frame, can satisfy left open and upper open door endurance test of different size. The power supply socket has the function of detecting, which can judge whether the test sample is electrified; during load test, if the test sample is not electrified during the test, the equipment will be automatically shut down. This feature can be enabled on the demands.
Parameters:
| Control | PLC, Household Appliance Test Equipment |
| Display | True color liquid crystal display (7 Inch Touch screen) |
| Frame structure | High grade aluminium profile |
| Power supply | AC 220V 50HZ(Household Appliance Test Equipment) |
| Test times | 0-999999 preset, automatic stop when test time finished |
| Open/Close time | 0-9999S preset |
| Open/Close rate | Adjustable |
| Open angle | 0-180°preset |
| Station | One station(left open or top open) |
| Door unlock | Eccentric wheel mechanism automatic unlock the door lock |
| Dimension | 1000*1000*800mm |
| Load | Provided with a 10A power socket, can be used for samples below 2000W |
