GB12021.9 1600mm Ceiling Fan Air Performance Tester Chamber
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 3 months |
| Payment Terms : | T/T, L/C | Supply Ability : | 1 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HJWMP01 |
|
Detail Information |
|||
| Product Name: | Performance Test Equipment For Clothes Washing Machines HJWMP01 | Function: | Measuring The Performance |
|---|---|---|---|
| Test Sample: | Clothes Washing Machines | Standard: | IEC60335-2-7, IEC60456 |
| Test Item: | Total 13 Items, Appliance Performance Test Lab | Test Sation: | 12 Stations (customizable) |
| Main Performance Items: | Power Consumption, Water Consumption, Washing Ratio, Dehydration Performance, Rinsing Performance, Wear Rate | Usage: | Test Chamber For Performance Test |
| Highlight: | IEC60456 Appliance Performance Test Lab,Performance Test Lab For Washing Machine,IEC60456 Performance Test Lab |
||
Product Description
Appliance Performance Test Lab Measuring Energy Efficiency For Clothes Washing Machines
Standard:
GBT4288-2008 Household and Similar electrical washing machine
IEC60335-2-7 Household and Similar electrical appliances –safety –particular requirements for water machines
IEC60335-2-4 Safety of Household and Similar electrical appliances particular requirements
GB 23118-2008 technical requirements for household and similar tumble washer-dryer
IEC60456 Clothes washing machines for household use - Methods for measuring the performance
Application:
It is mainly used for washing machines performance test.
Feature:

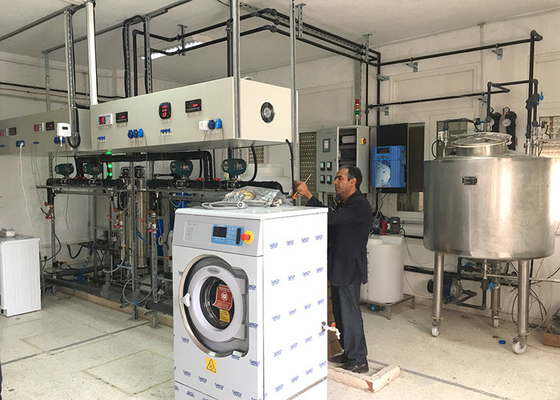

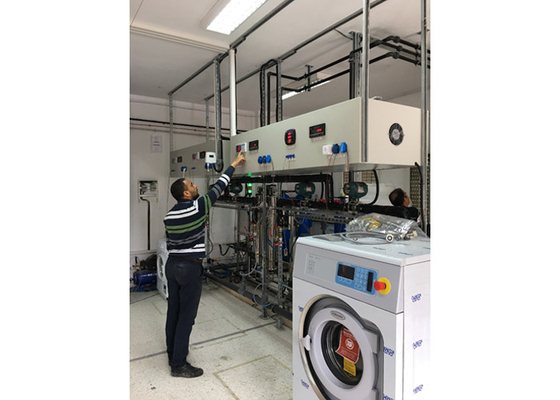

The whole system is consist of three parts: water supply chamber, test chamber, and control system. The equipment provides constant temperature and constant pressure water source for the test, and timely records the relevant parameters of the test process, calculates and generates test reports. The water supply device has multi water tanks, tap water is purified and input into hard water preparation tank, the hardness of the water is adjusted in a hard water preparation tank and then added to the water supply tank. In the water supply tank through heating, cooling (cooling using water-cooled chiller, coupled with cooling tower) to achieve the test temperature, water can be alternately supplied, pumped into the water supply pipeline through the pump, and then divided into two test ways in the test room for each test stations. The test water is not recycled. The water supply chamber and the test chamber are separated by an insulated storage board, and the test room is equipped with air conditioning. The ground has drainage ditch. The control cabinet is located indoors, and the test instrument is installed at the test station to collect data to the computer through networking. The water tank and the pipeline are all adopt heat preservation measures, and the water flow is continuously circulated to ensure that the water temperature fluctuation at the inlet of the laboratory test bench is not more than 0.5 °C/min during the work. Appliance Performance Test Lab
System Components:
| NO. | Item | Functional Use | Remarks |
| 1 | Constant Temperature Chamber | Control the temperature in the test chamber so that the test is performed within the environment required by the standard. | 1SET |
| 2 | Raw Water Storage Tank | Purify the tap water and reserve it. The purified water can be used for the hardness of the test water or for other purposes. | 1PC |
| 3 | Water Purification Device | 1SET | |
| 4 | Soft Water Storage Tank | 1PC | |
| 5 | Hard Water Preparation Chamber | By manually adjusting the hardness of the water to meet the test requirements, supply the water supply tank. | 1PC |
| 6 | Cold Water Supply Tank | Supply test water below the ambient temperature. | 2PCS Alternate water supplies |
| 7 | Hot Water Supply Tank | Supply test water above water temperature below ambient temperature. | 2PCS Alternate water supplies |

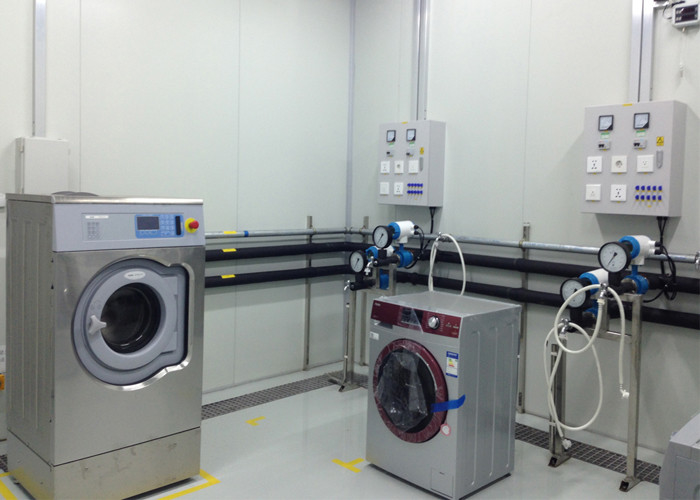

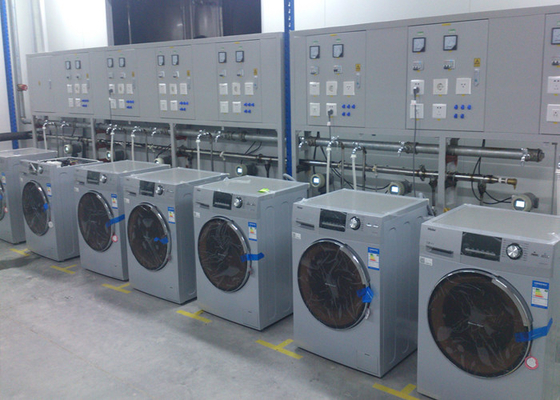

| 8 | Test Station | It is the connection port for sample testing. It has test power interface, water inlet and outlet interface, thermocouple interface, water pressure, flow and power meter. It can perform voltage regulation, power supply selection, water source selection and various electrical connection tests. | 12 (one with speed test and one with temperature test) |
| 9 | Control and Data Acquisition System | Set test parameters, perform test operations, test data collection, data collation, report generation, and historical data query. | SET |
