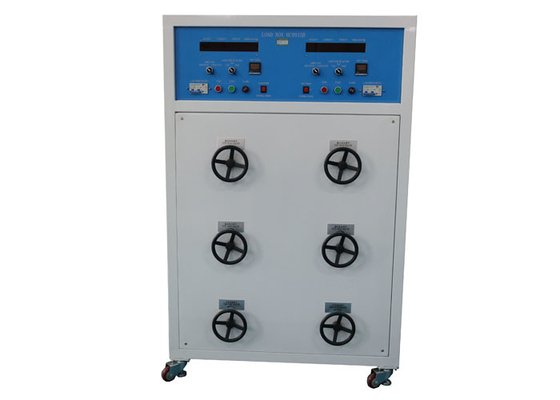

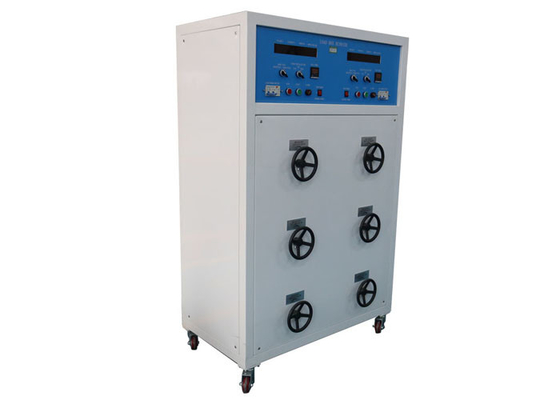

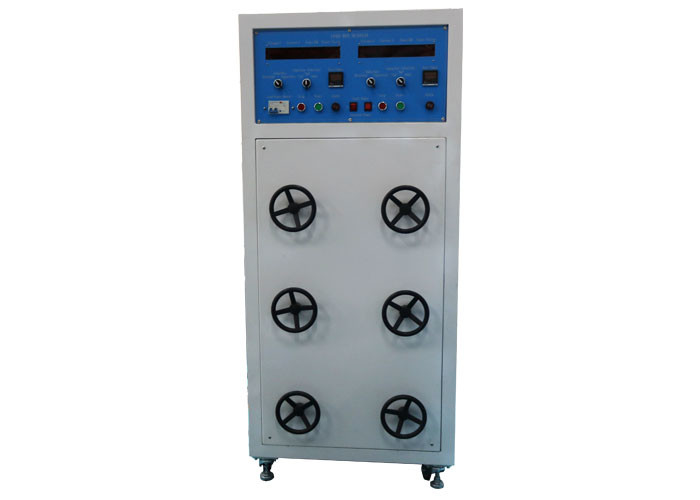

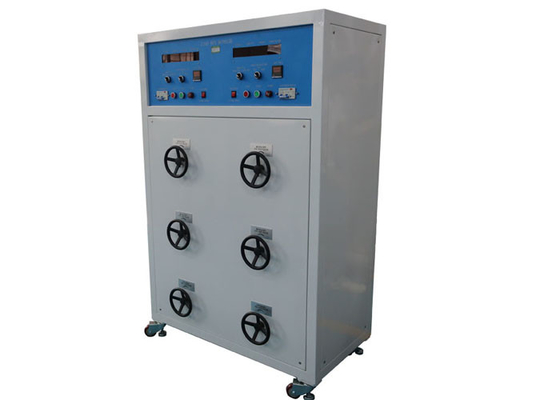

106kpa Plug Socket Test Equipment Load Box

Minimum Order Quantity :	1 set	Price :	Negotiatable
Packaging Details :	Plywood	Delivery Time :	30 days
Payment Terms :	L/C, T/T	Supply Ability :	20 set /month

Place of Origin:	China	Brand Name:	HeJin
Certification:	calibration certificate (cost additional)	Model Number:	HC9915

Detail Information
Product Name:	Load Box HC9915	Output Voltage:	0-300V
Output Current:	0-30A	Standard:	IEC 60884-1, IEC60069-1
Power Supply:	With Ground Wire AC220V/50Hz	Working Station:	Single / Two / Three Stations Can Be Option
Highlight:	106kpa Test Equipment Load Box , 106kpa Plug Socket Load Box , Test Equipment Load Box 106kpa

Product Description

Plug Socket Test Equipment Load Box For Breaking Capacity And Normal Operation Test

Standard:

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes –Part 1: General requirements’ clause 20, clause 21

IEC 60669-1 ‘Switches for household and similar fixed electrical installations –Part 1: General requirements’ clause 18, clause 19

Application:

This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test.

Test sample:

Household or similar purpose switches, plugs, sockets

Feature:

Include resistive, inductive and capacitive Load test. The kind of load test can be chosen by the transferring switch. The load box inside is cooled by the strong wind convection. There are terminals below the load box through which the load box can be connected with the switch and plug-socket endurance tester using the wire. During the process of test, the equipment outputs the current and voltage as well as power.

Parameter:

No.	Item	Parameters
1	Power supply	With ground wire AC220V/50Hz
2	Working station	Single / Two / Three stations can be option
3	Digital display voltage meter	0-300V, acurancy:±0.5%
4	Digital display current meter	0-30A, accurancy:±0.5%
5	Digital display power meter	0-20KW, accurancy:±0.5%
6	Digital display power factor meter	0.3-0.999, accurancy:±0.5%
7	Load method	Resistive, inductive and capacitive load (three in one) it can be transformed.
8	Capacitive load	70uf, 140uf, 7.3uf can be chosen.
9	Load output	Each power and interval power can be chosen.
10	Counter	0-9999, it can be preset.
11	The volume of load power supply	2*20KVA
12	The maximum of the output current	30A, when it exceeds 32A, it stopped automatically.
13	The maximum of the output voltage	300V, when it exceeds 305V, the load is stopped automatically.
14	Atmospheric pressure	80-106kpa
15	Environmental temperature	5-40°C
16	Relative humidity	(20-90)%RH
17	Using place	No violent shaking Without electromagnetic interference and dust. No explosive or corrosive gas. Good heat dissipation

106kpa Plug Socket Test Equipment Load Box 0
