AC230V 3 Stations Switch Plug Socket Endurance Tester For Plug Socket Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HC9914 |
|
Detail Information |
|||
| Product Name: | Switch And Plug-Socket Endurance Tester HC9914 | Control System: | PLC Control |
|---|---|---|---|
| Working Station: | 6 (customizable) | Test Time: | 0-999999, Preset |
| Connecting Time: | 0-99.9s, Preset | Standard: | IEC 60884-1, IEC60669-1 |
| Highlight: | 147kg Plug Socket Test Equipment,AC220V Plug Socket Test Equipment,AC220V Test Equipment For Breaking Capacity |
||
Product Description
Plug Socket Test Equipment For Breaking Capacity And Normal Operation Test PLC Control
Standard:
IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 20, clause 21
IEC 60669-1 ‘Switches for household and similar fixed electrical installations – Part 1: General requirements’ clause 18, clause 19
Application:
This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences. Plug Socket Test Equipment
Test sample:
Household or similar purpose switches, plugs, sockets, couplers
Feature:
Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.
Parameters:
| Model | HC9914 | HC9914A | HC9914B | HC9914C |
| Power supply | AC 220V±10% 50Hz | |||
| Operation interface | 7 inch color LCD touch screen. Plug Socket Test Equipment | |||
| Drive mode | servo motor + ball screw / timing belt or pneumatic | |||
| Control system | PLC control | |||
| Stations |

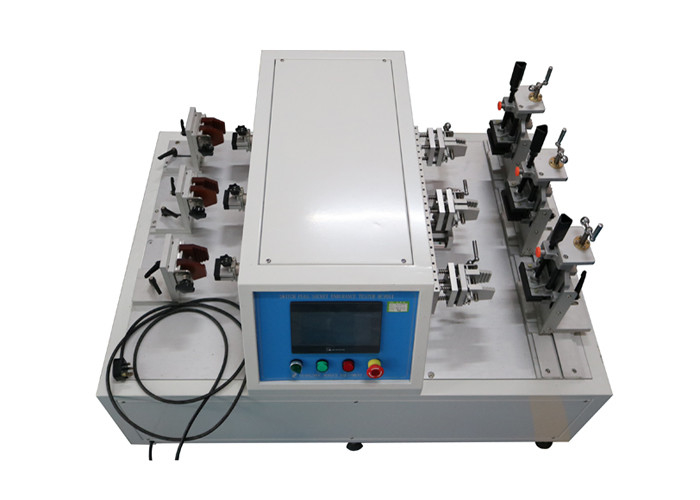

6 Stations: 3 liner stations; 3 rotating stations. Synchronization control |

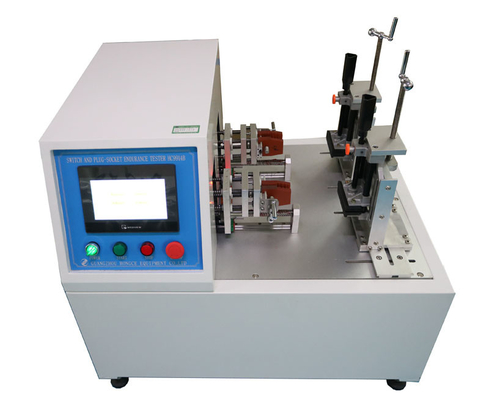

2 liner stations. Synchronization control |

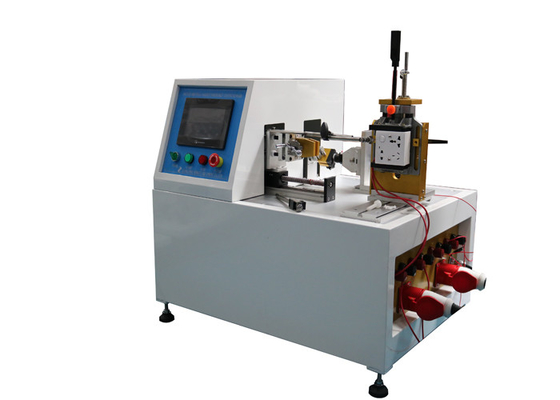

2 Stations: 1 liner stations; 1 rotating stations. Independent control |

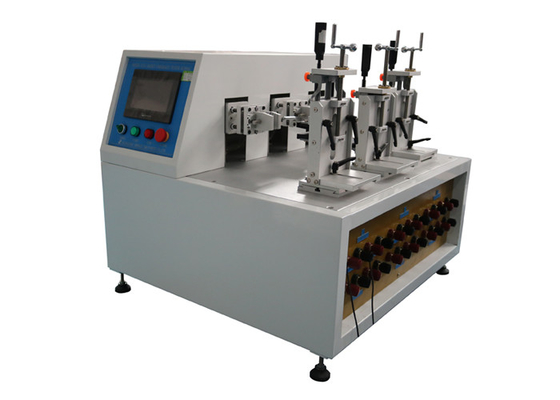

3 stations, pneumatic. Independent control |
| Test sample | Button switch, rocker switch, toggle switch, rotary switch, plug and socket | Button switch, rocker switch, toggle switch, plug and socket | Button switch, rocker switch, toggle switch, rotary switch, plug and socket | Button switch, plug and socket |
| Test times | 0-999999, preset | 0-999999, preset | 0-999999, preset | 0-999999, preset |
| Connecting time | 0-99.9s, preset | 0-99.9s, preset | 0-99.9s, preset | 0-99.9s, preset |
| Liner stroke | 0-100mm, preset | 0-100mm, preset | 0-100mm, preset | 100mm |
| Rotate angle | 0-360°, preset | - | 0-360°, preset | - |
| Test speed |
15 times per min 7.5 times per min 30 times per min |
15 times per min 7.5 times per min 30 times per min |
15 times per min 7.5 times per min 30 times per min |
15 times per min 7.5 times per min 30 times per min |
| Clamp | XYZ three axis clamp | XYZ three axis clamp | XYZ three axis clamp | XYZ three axis clamp |
|
Test mechanism (multi) |
Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism | Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism | Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism | Button switch push rod |
| Load ports | 6 ports | 2 ports | 2 ports | 3 ports |
|
Dimension Weight |
WDH=1090*800*700mm 147kg |
WDH=880*680*700mm 80kg |
WDH=880*680*700mm 80kg |
WDH=880*680*700mm 80kg |
| Test sample for reference |
|
|||
