AC230V 3 Stations Switch Plug Socket Endurance Tester For Plug Socket Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 20 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HC9910 |
|
Detail Information |
|||

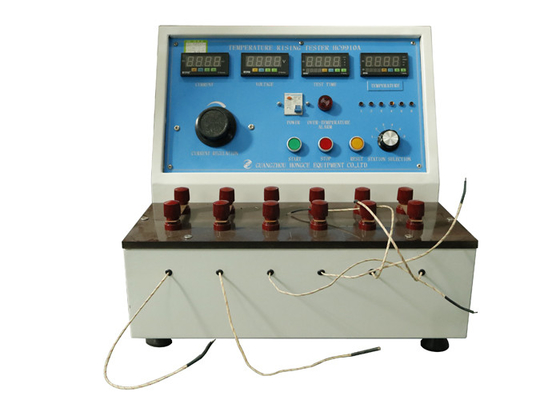

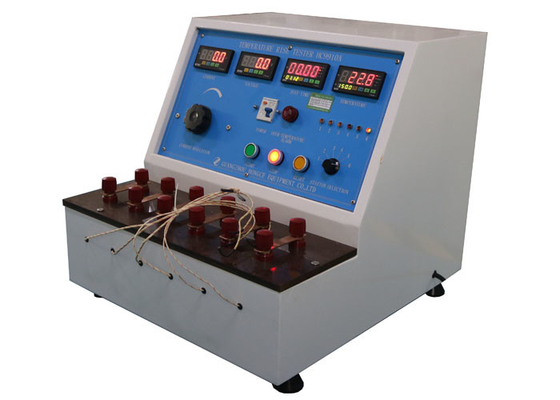

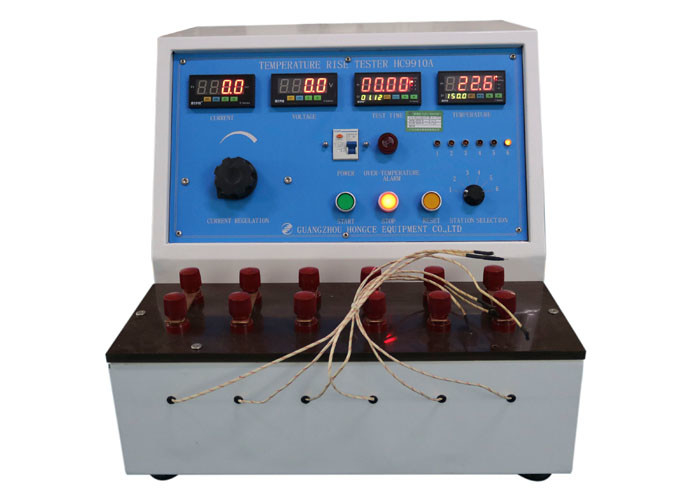

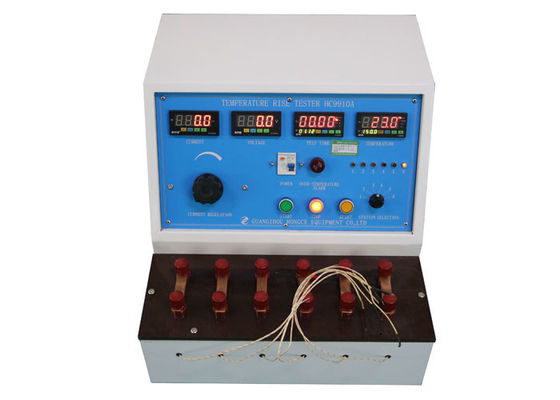

| Product Name: | Temperature Rise Tester HC9910 | Usage: | Test The Temperature Rise Of Electrical Appliances |
|---|---|---|---|
| Testing Current: | 0-40A | Working Station: | 6 |
| Test Time: | 0-9999s Adjustable | Standard: | IEC 60884-1/IEC 60998-1 |
| Highlight: | 50HZ Temperature Rise Tester,220V Temperature Rise Tester,6 Station Temperature Rise Tester |
||
Product Description
Plug Socket Test Equipment Temperature Rise Test With Testing Current 0-40A
Standard:
IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes –Part 1: General requirements’ clause 19
Application:
This device is use for test the temperature rise under normal operation of electrical appliances.
It is mainly used to test the plug device and its accessories around, such as dimmers, fuses, switches, power regulators, etc., and it cannot reach excessive temperatures during normal use. Plug Socket Test Equipment
Test sample:
Household plugs and sockets
Feature:
External type, thermocouple wire directly connected to the sample.
This device adopts a high-precision digital meter, sensor signal input with 6 work stations, over-temperature and overload protection with voice prompts, strong applicability and stable performance.
Parameters:
| Item | HC9910 | HC9910A |
| Working station | 6 | 6 |
| Testing current | 0-40A | 0-125A |
| Testing voltage | Less than 12V | Less than12V |
| Timer | 0-9999s is adjustable, digital display | 0-9999s is adjustable, digital display |
| Temperature measuring meter | 0-150℃ digital display | 0-150℃ digital display |
| Power supply | 220V,50HZ | 220V,50HZ |
| Standard | IEC 60884-1 | IEC 60998-1 |
| Test object | Plug pin | Connector |
