AC230V 3 Stations Switch Plug Socket Endurance Tester For Plug Socket Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HH0811 |
|
Detail Information |
|||
| Product Name: | Programmable Temperature Humidity Chamber HH0811 | Working Volume: | 150L (can Be Customized) |
|---|---|---|---|
| Temperature Range: | -40℃-+150℃ | Humidity Range: | 20-98%HR |
| Inner Size: | W600mm × H600mm × D460mm | Temperature Controller: | 7-inch Programmable Controller (touch Screen) |
| Highlight: | 150L Temperature And Humidity Test Chamber,300KG Temperature And Humidity Test Chamber,HH0811 Temperature And Humidity Test Chamber |
||
Product Description

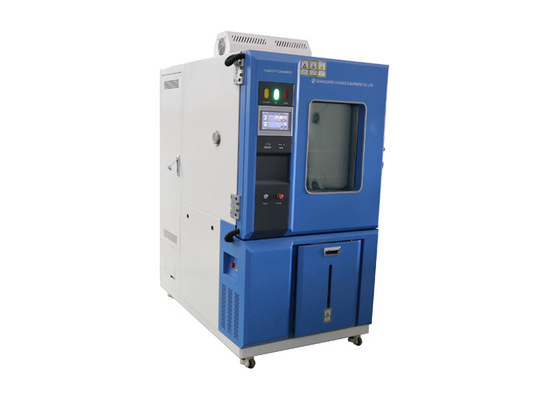

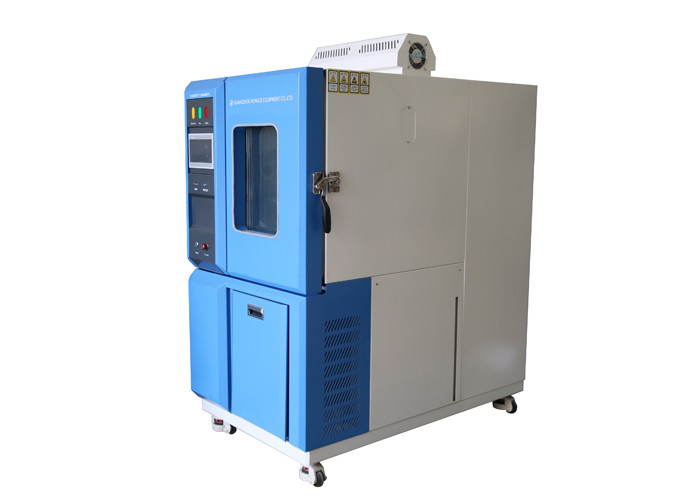

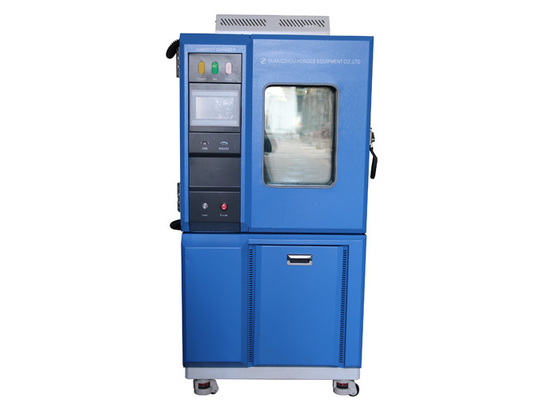

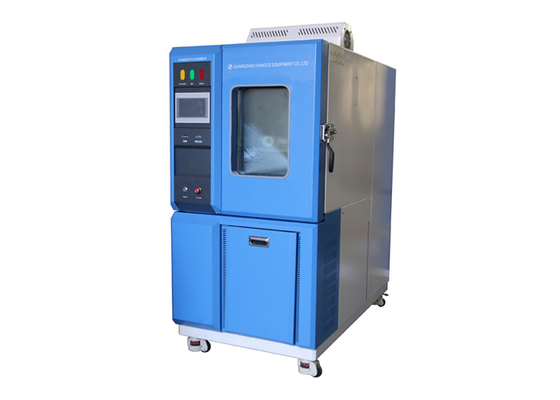

Plug Socket Test Equipment Temperature And Humidity Chamber For Resistance To Humidity With 150L Working Chamber
Standard:
IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes –Part 1: General requirements’ clause 16.1, clause 16.3
IEC 60669-1 ‘Switches for household and similar fixed electrical installations –Part 1: General requirements’ clause 15.1, clause 15.3
The test device is designed and manufactured according to IEC 60068-2, Test methods-test A: cold, test B: dry heat, test Cab: damp heat, steady state, test Db: damp heat, cyclic.
Parameter:
| Product Name | Programmable Temperature Humidity Chamber |
| Volume, size and weight | |
| Working Volume | 150L (can be customized) |
| Inner size | W600mm × H600mm × D460mm |
| Outer size | W900mm × H1800mm × D1500mm |
| Weight | 300KG |
| Temperature controller | 7-inch programmable controller (touch screen) |
| Performance | |
| Temperature range | -40℃～+150℃ |
| Humidity range | 20-98%HR |
| Temperature deviation | ≤±2℃(without load, under constant state) |
| Temperature uniformity | ≤±2℃(without load, under constant state) |
| Temperature fluctuation | ±0.5℃(without load, under constant state) |
| Humidity deviation | ± 3% RH (above 75%); ± 5% RH (below 75%) |
| Heating rate | 3-5℃/ min |
| Cooling rate | 0.7-1℃/ min |
| Structure | |
| Outer material | 3A cold-rolled steel sheet with electrostatic double-sided plastic spray, color is pearl white |
| Inner wall material | SUS304# mirror stainless steel plate |
| Insulation materials | 100mm rigid polyurethane foam |
| Observation window | Set on the door of the test chamber, size: about 300 × 460mm (width × height), coated with frost-proof insulating glass |
| Pin holes | 1 hole of Φ50mm, on the left side of chamber |
| Protection system |
1 Chamber: 1) Independent over-temperature protector 2) Fan overheating protection 2 Cooling System: 1) Compressor overpressure 2) Compressor overcurrent 3) Compressor overheating 4) Exhaust temperature protection 3 Power system: 1) Power phase loss and phase sequence error protection 2) Leakage protection 3) Heater over-temperature protection 4) Overcurrent protection such as heater short circuit 4 Others: Test chamber shell ground protection |
