Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsAPP : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 sets per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | GW-1 |
|
Detail Information |
|||
| Control Mode: | Button Control | Thermocouple: | 1mm K Thermocouple，the Temperature Resistance Of Armour Is 1100 ℃ ( Better Than The Standard Of 1050 ℃ ) |
|---|---|---|---|
| Specimen Pressure On Glowing Filament: | 0.95N±0.1N( Adjustable ) | Glowing Filament: | Ф4mm ± 0.04mm |
| Calibration Temperature: | 960°±10°C | Specimen Movement Speed: | 10mm /s - 25mm /s |
| Highlight: | IEC60695-2-10 Flammability Testing Equipment,IEC60695-2-10 Flammability Testing,Flammability Testing Equipment IEC60695-2-10 |
||
Product Description

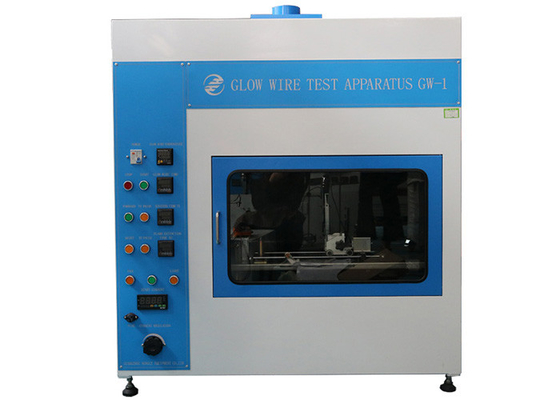

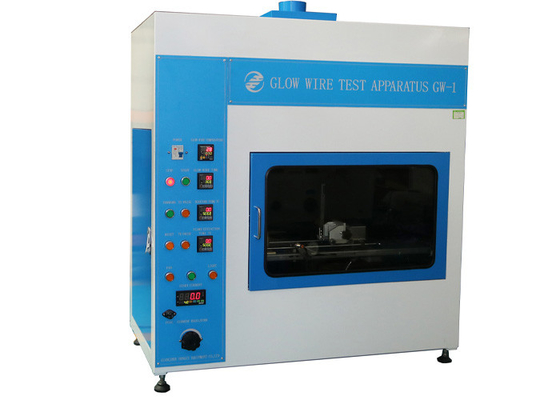

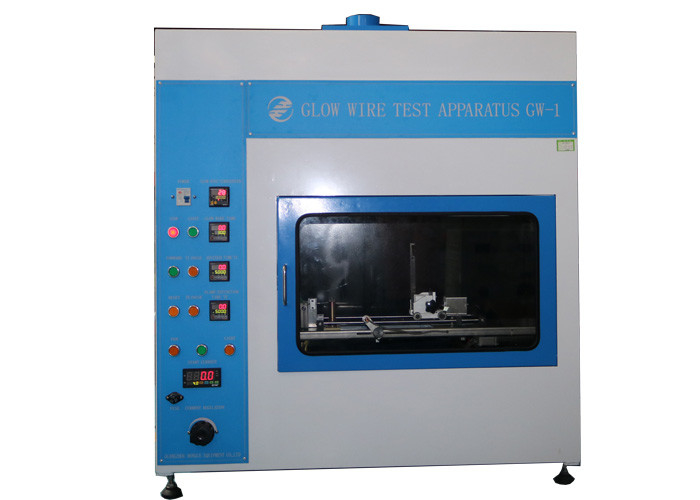

Glowing -Wire Tester Flammability Testing Equipment For IEC60695-2-10 With 4mm Glow-Wire And Button Operation
Standard:
IEC60695-2-10 Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure,
IEC60695-2-11 Fire hazard testing – Part 2-11 : Glowing/hot-wire based test methods – Glow-wire flammability test method for end-products,
IEC60695-2-12 Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials,
IEC60695-2-13 Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials.
Description of the test apparatus:
The glow-wire is formed from nickel/chromium (> 77 % Ni/20 ± 1 % Cr) wire, having an overall diameter of 4.00 mm ± 0.07 mm (before bending). The dimensions of the glow wire loop are as detailed in Figure 1.
A new glow-wire shall be annealed for a total of at least 10 h by being subjected to a current of at least 120 A before being used for a test run. The total annealing time may be achieved cumulatively. To avoid damage, the thermocouple shall not be installed during annealing. At the end of annealing, the depth of the thermocouple pocket hole shall be verified.

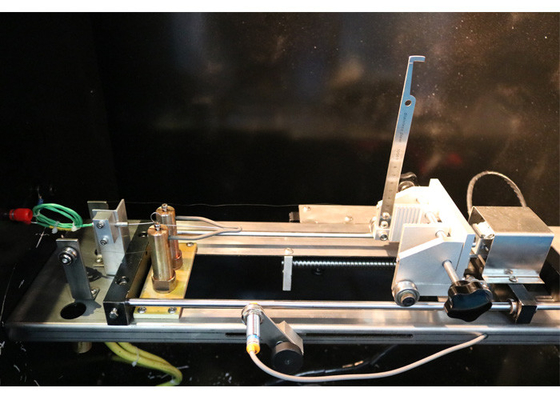

The test apparatus shall be designed so that the glow-wire is kept in a horizontal plane and applies a force of 0.95 N ± 0.1 0 N to the test specimen during the application of the glow-wire. The force shall be maintained at this value when the glow-wire or the test specimen is moved horizontally one towards the other. The penetration of the tip of the glow-wire into and through
the test specimen shall be limited to 7 mm ± 0.5 mm.
Parameters:
| ParametersModel | GW-1 |
| Working voltage | 220V/50Hz |
| Control operation mode | Electrical control, button operation |
| Glowing filament | Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape, horizontal standing |
| Specimen pressure on glowing filament | 0.95N±0.1N |
| Maximum depth of heating | 7mm ± 0.5mm |
| Specimen movement speed | 10mm /s - 25mm /s |
| Temperature calibration | Calibration temperature:960°±10°C, the hot wire by electric heating |
| Thermocouple: RS imported 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100° | |
| Silver foil: purity 99.8%, area :2m², thickness:0.06mm | |
| Tray | A layer of silk paper (12–30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample |
| Test chamber | >0.5 cube, sample distance from the inside of the box is greater than 100mm, black yogon background, background illuminance ≤ 20Lx,with exhaust fan |
| Testing time | 30s±1s |
| Test procedure | The test sample is driven by the car and automatic run, the car will return automatically after glow-wire entered the test sample of 7mm |
| Lighting | Equip with lighting in the test chamber, with control |
| Dimension | 1100*550*1200mm, 140kg |
